TRANSMISSION
GSXR750 1990 (L) USA (E03)

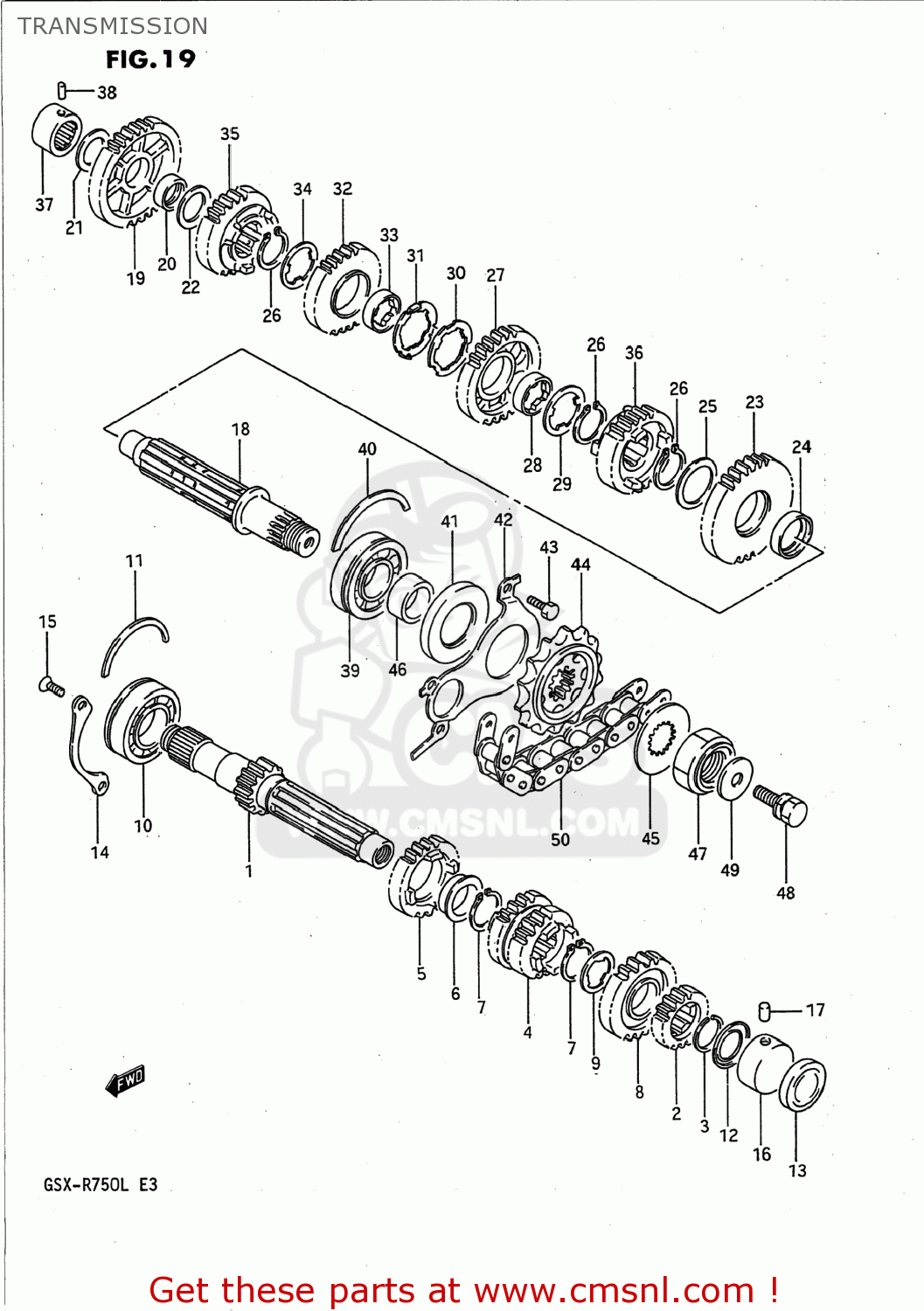

Transmission diagram GSXR750 1990 (L) USA (E03)
TRANSMISSION GSXR750 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412117C02
ref: 1
SHAFT,COUNTER(NT:13)
€ 195.00
2
2422127A01
ref: 2
GEAR,2ND DRIVE(NT:16)
€ 93.00
3
0938025013
ref: 3
CIRCLIP
€ 3.00
4
2423127A00
ref: 4
GEAR,3RD & 4TH DRIVE(NT:17/20)
€ 162.00
5
2425127A01
ref: 5
GEAR,5TH DRIVE(NT:22)
€ 91.00
6
0930125001
ref: 6
24322-19F00
BUSHING
€ 12.50
7
0938025003
ref: 7
RING,SNAP
€ 3.00
8
2426117C00
ref: 8
24261-17C02
GEAR,SIXTH DRIVE
€ 119.50
9
0916725012
ref: 9
WASHER,LOCK
€ 3.50
10
0926225051
ref: 10
09262-25105
BEARING(25X62X17)
€ 59.50
11
0939062006
ref: 11
09390-62012
C-RING
€ 5.00
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
€ 7.00
13
2311627A30
ref: 13
CAP,COUNTER SHAFT,L
€ 10.00
14
2474127A00
ref: 14
RETAINER,CNTR SHAFT BEARING
€ 7.00
15
0212206167
ref: 15
SCREW
€ 2.00
16
0926320069
ref: 16
BEARING(20X34X17.5)
€ 39.50
17
0422107129
ref: 17
PIN
€ 1.50
18-1
2413127A02
ref: 18-1
SHAFT,DRIVE
€ 188.50
18-2
2413117D00
ref: 18-2
SHAFT,DRIVE
€ 218.00
19
2431127A01
ref: 19
GEAR,1ST DRIVEN(NT:36)
€ 145.00
20
0930022008
ref: 20
BUSH(22X26X9)
€ 10.50
21
0821120341
ref: 21
WASHER
€ 2.00
22
0821122341
ref: 22
WASHER
€ 3.00
23-1
2432127A01
ref: 23-1
24321-27A02
GEAR,SECOND DRIVEN
€ 143.50
23-2
2432127A02
ref: 23-2
GEAR,2ND DRIVEN(NT:33)
€ 143.50
24
0930028001
ref: 24
BUSH(28X32X8)
€ 11.50
25
0821128381
ref: 25
09181-28195
WASHER, THRUST
€ 3.50
26
0833111289
ref: 26
08331-3128A
CIRCLIP
€ 2.50
27
2433127A00
ref: 27
GEAR,3RD DRIVEN(NT:28)
€ 129.00
28
2433227A00
ref: 28
BUSH
€ 13.50
29
0916728001
ref: 29
WASHER,LOCK
€ 3.00
30
0916728002
ref: 30
WASHER,LOCK
€ 3.00
31
0916928001
ref: 31
WASHER
€ 3.00
32
2434127A00
ref: 32
24341-27A01
GEAR,FOURTH DRIVEN
€ 80.00
33
2433227A00
ref: 33
BUSH
€ 13.50
34
0916728001
ref: 34
WASHER,LOCK
€ 3.00
35
2435127A00
ref: 35
GEAR,5TH DRIVEN(NT:27)
€ 117.00
36
2436127A02
ref: 36
GEAR,6TH DRIVEN
€ 114.00
37
0926320040
ref: 37
BEARING(20X34X20)
€ 42.50
38
0422107209
ref: 38
PIN
€ 1.50
39
0926225105
ref: 39
BEARING(25X62X17)
€ 59.50
40
0939062006
ref: 40
09390-62012
C-RING
€ 5.00
41
0928334005
ref: 41
SEAL,OIL(34X62X6)
€ 14.50
42
2475127A01
ref: 42
RETAINER,DRIVE SHAFT OIL SEAL
€ 8.00
43
0110706107
ref: 43
01500-06107
BOLT
€ 2.00
44
2751017C00
ref: 44
27510-17C10
SPROCKET,ENGINE (NT:15)
€ 67.00
45
0821125402
ref: 45
09181-25268
WASHER,THRUST
€ 3.00
46-1
0918025091
ref: 46-1
SPACER(25X34X17.5)
€ 16.00
46-2
0918025096
ref: 46-2
SPACER,ENGINE SPROCKET
€ 10.00
47
0915920004
ref: 47
NUT
€ 12.00
48
0114706168
ref: 48
01570-06167
BOLT
€ 2.50
49
0821206222
ref: 49
WASHER
€ 1.50
50
2760017C20108
ref: 50
27600-24F20-108
CHAIN ASSEMBLY,DRIVE 50GSV
€ 258.00
