CYLINDER HEAD (MODEL J/K)
GSXR750 1990 (L) USA (E03)

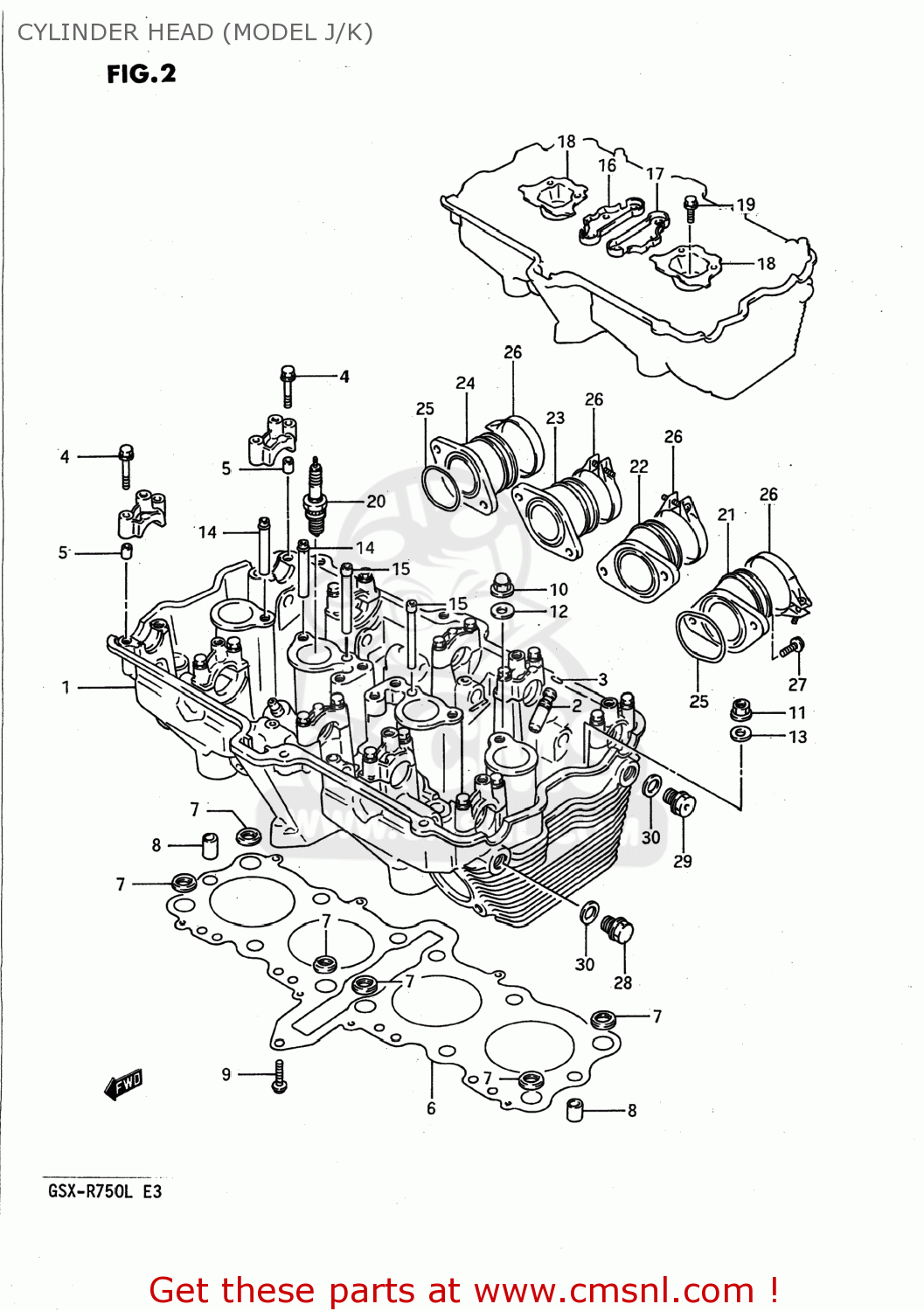

Cylinder head (model j/k) diagram GSXR750 1990 (L) USA (E03)
CYLINDER HEAD (MODEL J/K) GSXR750 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110017C02
ref: 1-1
11100-17C03
HEAD ASSEMBLY,CYLINDER
€ 1,495.50
1-2
1110017C03
ref: 1-2
HEAD ASSEMBLY,CYLINDER
€ 1,495.50
1-3
1110017C12
ref: 1-3
11100-17C13
HEAD ASSEMBLY,CYLINDER
€ 701.50
1-4
1110017C13
ref: 1-4
HEAD ASSEMBLY,CYLINDER
€ 701.50
2
1111606B70
ref: 2
GUIDE,VALVE
€ 43.00
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6
1114117C01
ref: 6
11141-17C03
GASKET,CYLINDER HEAD
€ 66.50
7
1114306B00
ref: 7
O RING,HEAD GASKET
€ 8.00
8
0421111189
ref: 8
PIN
€ 2.00
9
0151706254
ref: 9
01550-0625A
BOLT
€ 2.50
10
0915910054
ref: 10
NUT
€ 7.50
11
0831616106
ref: 11
08316-1010B
NUT
€ 2.00
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
€ 2.00
13
0916010060
ref: 13
09160-10039
WASHER (10.5X22X2.3)
€ 2.50
14
1113127A00
ref: 14
PIPE,OIL NO.1
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
€ 7.00
16
1113517C01
ref: 16
11135-17C10
PLATE
€ 4.50
17
1113617C01
ref: 17
11135-17C10
PLATE
€ 4.50
18
1113717C00
ref: 18
11137-17C01
PLATE
€ 5.50
19
0154706127
ref: 19
BOLT
€ 2.00
20-1
0948200397
ref: 20-1
PLUG,SPARK(JR9C)
€ 8.00
20-2
0948200401
ref: 20-2
PLUG,SPARK(JR8C)
€ 0.00
21
1311017C00
ref: 21
13101-17C01
PIPE,INTAKE
€ 32.50
22
1312017C00
ref: 22
13102-17C01
PIPE,INTAKE
€ 32.50
23
1313017C00
ref: 23
13103-17C01
NET,INTAKE
€ 32.50
24
1314017C00
ref: 24
13104-17C01
PIPE,INTAKE
€ 34.50
25
1311527A01
ref: 25
09280-40010
O RING(D:2.4,ID:39.7)
€ 3.50
26
0940252208
ref: 26
CLAMP
€ 5.50
27
0215206165
ref: 27
02112-0616A
SCREW
€ 2.00
28-1
0924714034
ref: 28-1
PLUG
€ 3.50
28-2
0924714032
ref: 28-2
PLUG
€ 5.00
29
0924714032
ref: 29
PLUG
€ 5.00
30
0916814004
ref: 30
GASKET(14X19.2X2) (NAS)
€ 2.50
30
0916814004
ref: 30
GASKET(14X19.2X2) (NAS)
€ 2.50
