STAND

GSXR750 1990 (L) USA (E03)

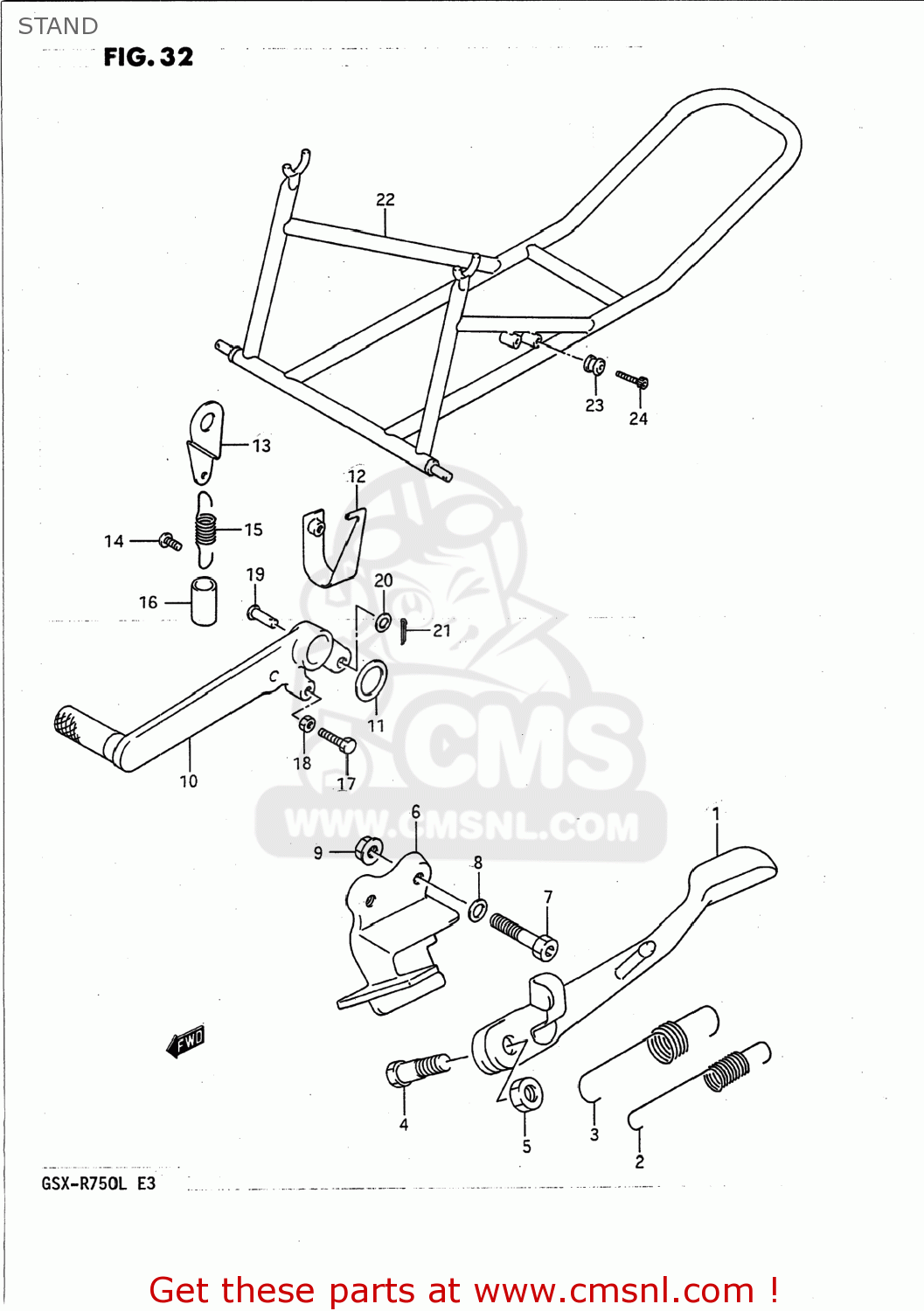

Stand diagram GSXR750 1990 (L) USA (E03)

STAND GSXR750 1990 (L) USA (E03)

STAND GSXR750 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4231017C02
ref: 1-1
42310-40C00

STAND,SIDE

€ 73.00

1-2

4231017C10
ref: 1-2
42310-40C00

STAND,SIDE

€ 73.00

1-3

4231007D02
ref: 1-3

STAND,PROP

€ 98.50

2-1

0944314055
ref: 2-1
09443-14058

SPRING

€ 5.50

2-2

0944314058
ref: 2-2

SPRING

€ 5.50

3

0944319011
ref: 3

SPRING

€ 5.50

4

0911110036
ref: 4

BOLT(10X38)

€ 5.50

5

0831022107
ref: 5
08310-00107

NUT

€ 2.50

6-1

4233017C02
ref: 6-1
42330-40C00

BRACKET,SIDE STAND

€ 66.00

6-2

4233040C10
ref: 6-2

BRACKET,PROP STAND

€ 71.00

6-3

4233007D00
ref: 6-3

BRACKET COMP,PROP STAND

€ 71.50

7

0711008358
ref: 7
07130-08357

BOLT, FRONT RH

€ 4.50

8

0916408015
ref: 8

WASHER

€ 3.00

9

0831616088
ref: 9
08316-10087

NUT

€ 2.50

10-1

4311017C02
ref: 10-1
43110-17C03

PEDAL,BRAKE

€ 96.50

10-2

4311017C03
ref: 10-2

PEDAL,BRAKE

€ 96.50

11

0916018022
ref: 11

WASHER(18X24X1)

€ 3.00

12

4356117C01
ref: 12

PLATE,BRAKE SPRING,FRONT

€ 4.50

13-1

4356317C00
ref: 13-1
43563-17C01

BRACKET,STOP SWITCH SPRING

€ 8.00

13-2

4356317C01
ref: 13-2

BRACKET,STOP SWITCH SPRING

€ 8.00

14

0913906027
ref: 14

SCREW(6X12)

€ 3.00

15

0944313018
ref: 15

SPRING

€ 4.00

16

4326117C00
ref: 16

TUBE,BRAKE SPRING GUIDE

€ 5.50

17

0110405206
ref: 17
01500-0520B

BOLT

€ 2.50

18

0831011058
ref: 18
08310-00057

NUT

€ 2.50

19

0920006037
ref: 19
09200-06068

PIN

€ 5.00

20

0832221067
ref: 20
08322-01067

WASHER

€ 2.00

21

0411120158
ref: 21
04111-2015A

PIN

€ 1.50

22

4210017C00
ref: 22
99950-70043-RAC

STAND ASSEMBLY,REAR

€ 471.00

23

6116527A30
ref: 23

HOLDER,STAND

€ 26.50

24

0711008305
ref: 24
07130-0830A

BOLT, REAR (8X30)

€ 3.00
