HEADLAMP (MODEL L)

GSXR750 1990 (L) USA (E03)

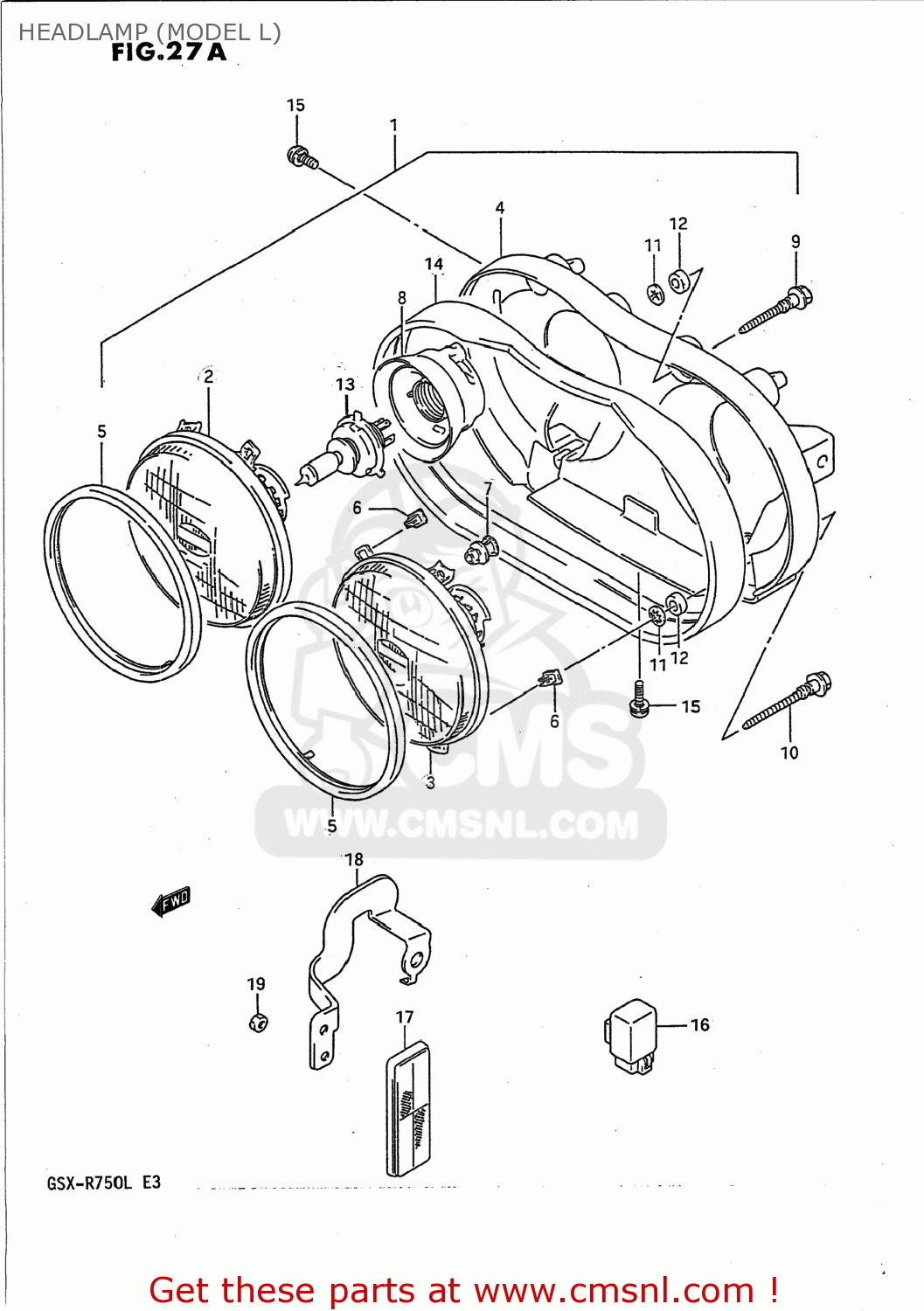

Headlamp (model l) diagram GSXR750 1990 (L) USA (E03)

HEADLAMP (MODEL L) GSXR750 1990 (L) USA (E03)

HEADLAMP (MODEL L) GSXR750 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510040C30999
ref: 1
35100-40C31-999

HEADLAMP ASSEMBLY

€ 151.50

2

3512117C30
ref: 2

LAMP UNIT,L

€ 0.00

3

3532117C30
ref: 3

LAMP UNIT,R

€ 0.00

4

3524005C02
ref: 4

HOUSING,HEAD LAMP

€ 67.50

5

3512704A00
ref: 5

RING,RETAINING

€ 15.00

6

3515205C00
ref: 6
35135-12E20

NUT,HEADLAMP ADJUSTER

€ 2.50

7

3516204A00
ref: 7

SCREW,SPHERICAL

€ 2.00

8

3517320A01
ref: 8

COVER,SOCKET

€ 14.50

9

3515105C00
ref: 9
35153-05C00

SCREW,HEADLAMP ADJUST

€ 4.50

10

3515305C00
ref: 10

SCREW,ADJUSTER

€ 4.50

11

3515732B00
ref: 11
09148-05006

WASHER

€ 1.50

12

3516705C00
ref: 12

BUSHING

€ 1.50

13

0947112060
ref: 13

BULB(12V60/55W,H4)

€ 8.00

14

3524217C13
ref: 14

GASKET,HEADLAMP

€ 40.00

15

0211236165
ref: 15
02112-3616A

SCREW

€ 2.50

16

3864017C00
ref: 16
38740-24X50

RELAY ASSY,HEADLAMP

€ 37.50

17

3595043431
ref: 17

REFLEX REFLECTOR,FR SIDE

€ 12.00

18-1

3595640C01
ref: 18-1

BRACKET,FR SIDE REFLECTOR,R

€ 7.50

18-2

3595740C01
ref: 18-2

BRACKET,FR SIDE REFLECTOR,L

€ 7.50

19

0836115055
ref: 19
08361-1505B

NUT

€ 2.50
