CANISTER (E33)
GSXR750 1996 (T) USA (E03)

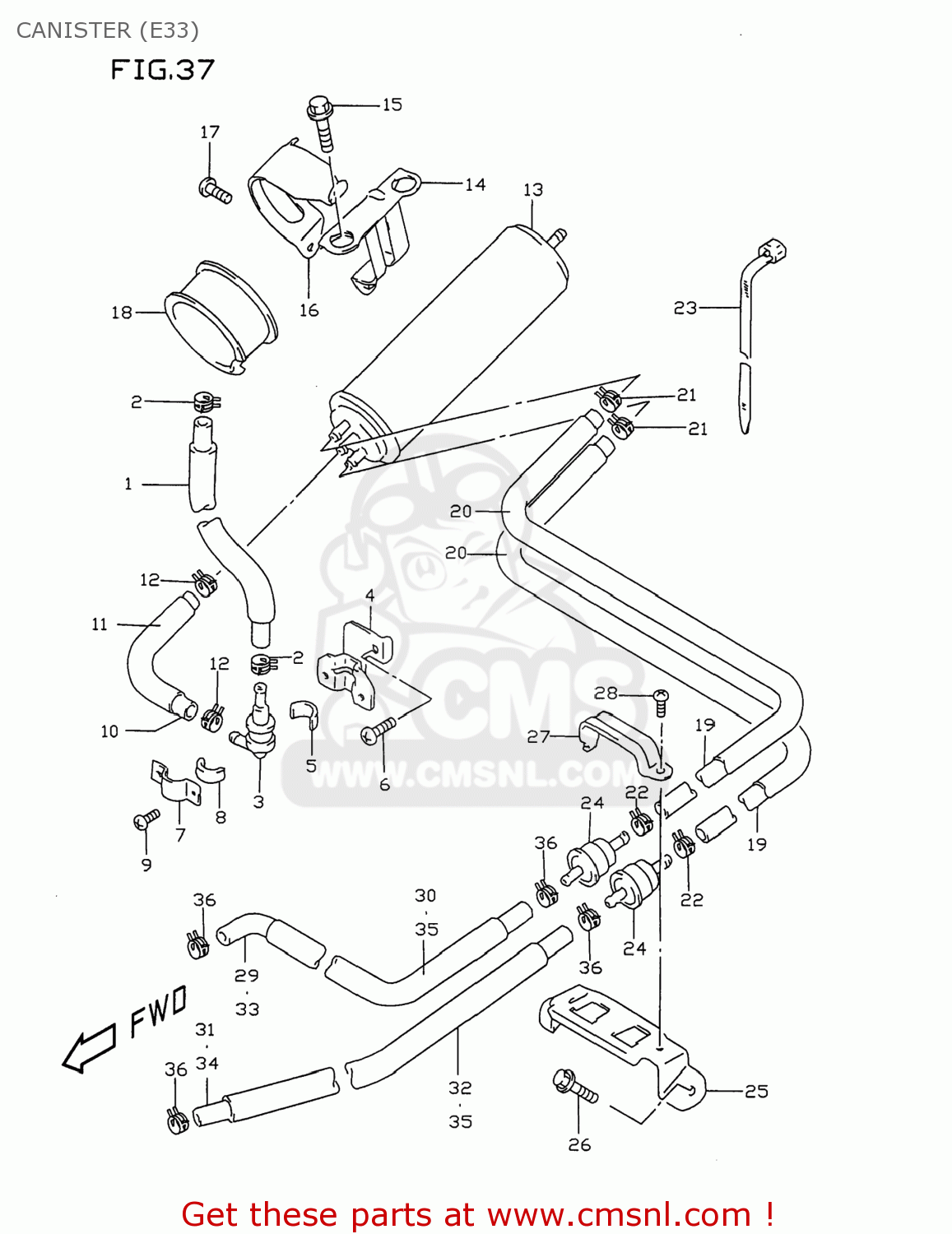

Canister (e33) diagram GSXR750 1996 (T) USA (E03)
CANISTER (E33) GSXR750 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
0935554116600
ref: 1
HOSE(5.4X11.4X600)
€ 12.00
2
0940111413
ref: 2
CLIP
€ 2.50
3
4424017C00
ref: 3
VALVE,FUEL TANK BREATHER
€ 40.00
4-1
4489033E00
ref: 4-1
PLATE,BREATHER VALVE
€ 0.00
4-2
4489033E01
ref: 4-2
PLATE,BREATHER VALVE
€ 0.00
5
4489424A00
ref: 5
CUSHION
€ 1.50
6
0214206123
ref: 6
02142-0612A
SCREW 6X12
€ 2.00
7
4489224A00
ref: 7
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
8
4489424A00
ref: 8
CUSHION
€ 1.50
9
0214204083
ref: 9
02142-0408B
SCREW
€ 1.50
10
0935554116600
ref: 10
HOSE(5.4X11.4X600)
€ 12.00
11
0935114152600
ref: 11
PROTECTOR(14.5X15.5X600)
€ 9.00
12
0940111413
ref: 12
CLIP
€ 2.50
13
1721026E00
ref: 13
CANISTER ASSY,CHARCOAL
€ 261.50
14
4488033E00
ref: 14
BRACKET,CANISTER
€ 0.00
15
0911606168
ref: 15
BOLT(6X16)
€ 2.50
16
4488233E00
ref: 16
HOLDER,CANISTER
€ 0.00
17
0214206123
ref: 17
02142-0612A
SCREW 6X12
€ 2.00
18
4488326E00
ref: 18
CUSHION,CANISTER
€ 9.00
19
0935954111600
ref: 19
HOSE(5.4X11.4X600)
€ 22.00
20
0935114152600
ref: 20
PROTECTOR(14.5X15.5X600)
€ 9.00
21
0940111407
ref: 21
09401-11415
CLIP
€ 2.50
22
0940111413
ref: 22
CLIP
€ 2.50
23-1
0940718402
ref: 23-1
CLAMP(L:165)
€ 2.50
23-2
0940714407
ref: 23-2
CLAMP(L:145)
€ 4.00
24
4425048B00
ref: 24
VALVE,CANISTER PURGE
€ 39.50
25
4488533E00
ref: 25
BRACKET,CANISTER PURGE VALVE
€ 0.00
26
0155006123
ref: 26
01550-0612A
BOLT
€ 2.50
27
4488431E00
ref: 27
HOLDER,CANISTER PURGE
€ 0.00
28
0211205083
ref: 28
02112-0508A
SCREW
€ 2.00
29
0935554115600
ref: 29
HOSE(5.4X11.4X600)
€ 20.00
30
0935114152600
ref: 30
PROTECTOR(14.5X15.5X600)
€ 9.00
31
0935554115600
ref: 31
HOSE(5.4X11.4X600)
€ 20.00
32
0935114152600
ref: 32
PROTECTOR(14.5X15.5X600)
€ 9.00
33
0935554115600
ref: 33
HOSE(5.4X11.4X600)
€ 20.00
34
0935554115600
ref: 34
HOSE(5.4X11.4X600)
€ 20.00
35
0944013053
ref: 35
SPRING
€ 7.00
36
0940111413
ref: 36
CLIP
€ 2.50
