SEAT

GSXR750 1996 (T) USA (E03)

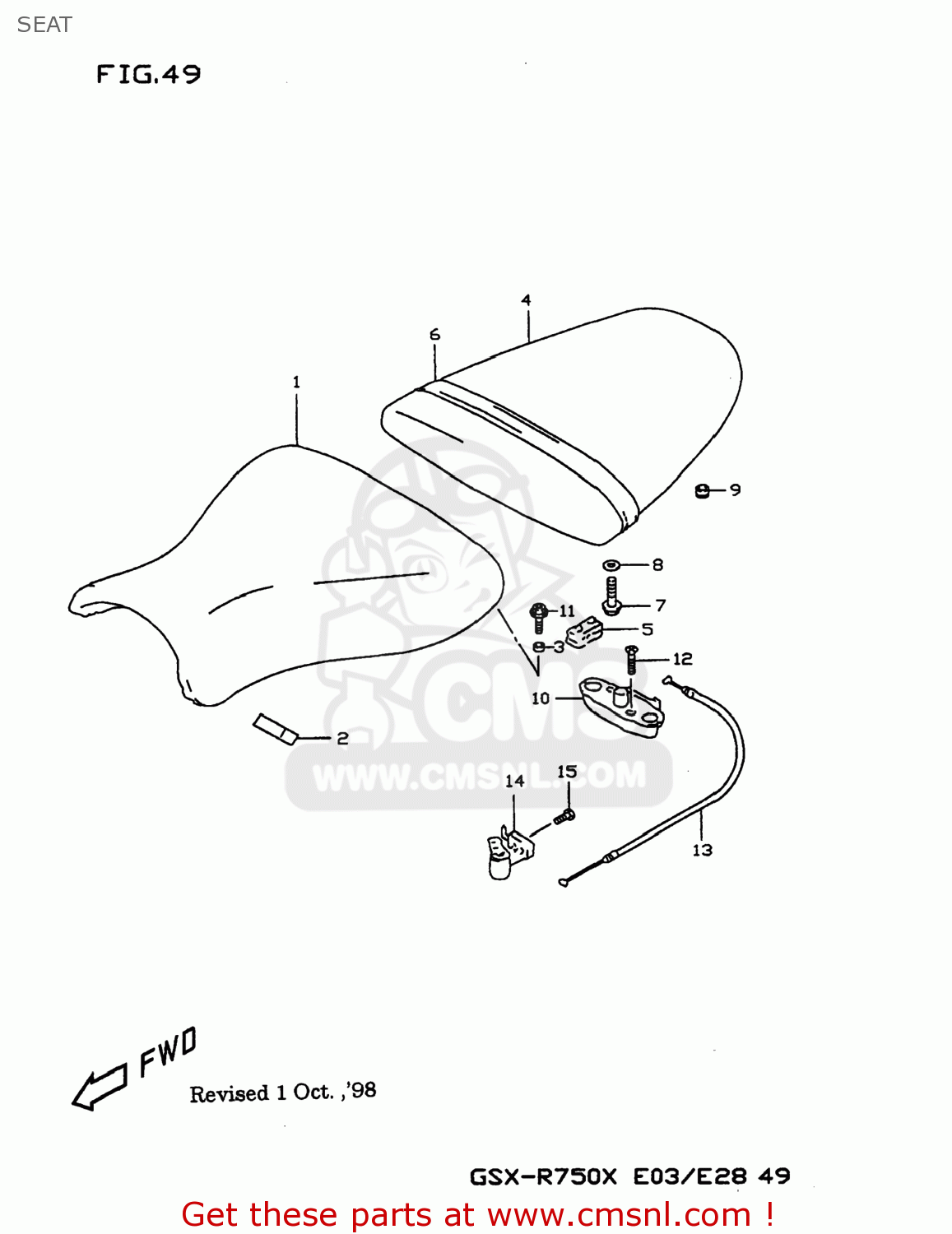

Seat diagram GSXR750 1996 (T) USA (E03)

SEAT GSXR750 1996 (T) USA (E03)

SEAT GSXR750 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4510033E00R42
ref: 1-1

SEAT ASSEMBLY (BLACK)

€ 245.00

1-2

4510033E20R42
ref: 1-2

SEAT ASSY(BLACK)

€ 179.50

2

4514931E00
ref: 2

CUSHION,FR(20X40X15)

€ 4.00

3

4511233E00
ref: 3

SPACER,SEAT(6.5X10.5X6)

€ 3.50

4-1

4530033E00R42
ref: 4-1

SEAT ASSY,PILLION

€ 175.00

4-2

4530033E20R42
ref: 4-2

SEAT ASSY,PILLION

€ 175.00

5

4514931300
ref: 5

CUSHION,SEAT(40X20X15)

€ 2.00

6

4518033E00R42
ref: 6

BAND,SEAT

€ 14.50

7

0155006203
ref: 7
01550-0620A

BOLT

€ 2.50

8

0916006088
ref: 8

WASHER(6.5X20X1.6)

€ 2.00

9

4521331300
ref: 9

CUSHION

€ 1.50

10

4522020A01
ref: 10
45220-47H00

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

11

0910606064
ref: 11

BOLT(6X18)

€ 6.00

12

0212206303
ref: 12
02122-0630B

SCREW

€ 2.00

13

4528017E00
ref: 13

CABLE,SEAT LOCK

€ 16.50

14

9570031840
ref: 14
95700-31841

LOCK SET,SEAT

€ 57.00

15

0214205103
ref: 15
02142-0510B

SCREW

€ 2.50
