ELECTRICAL (MODEL T/V)
GSXR750 1996 (T) USA (E03)

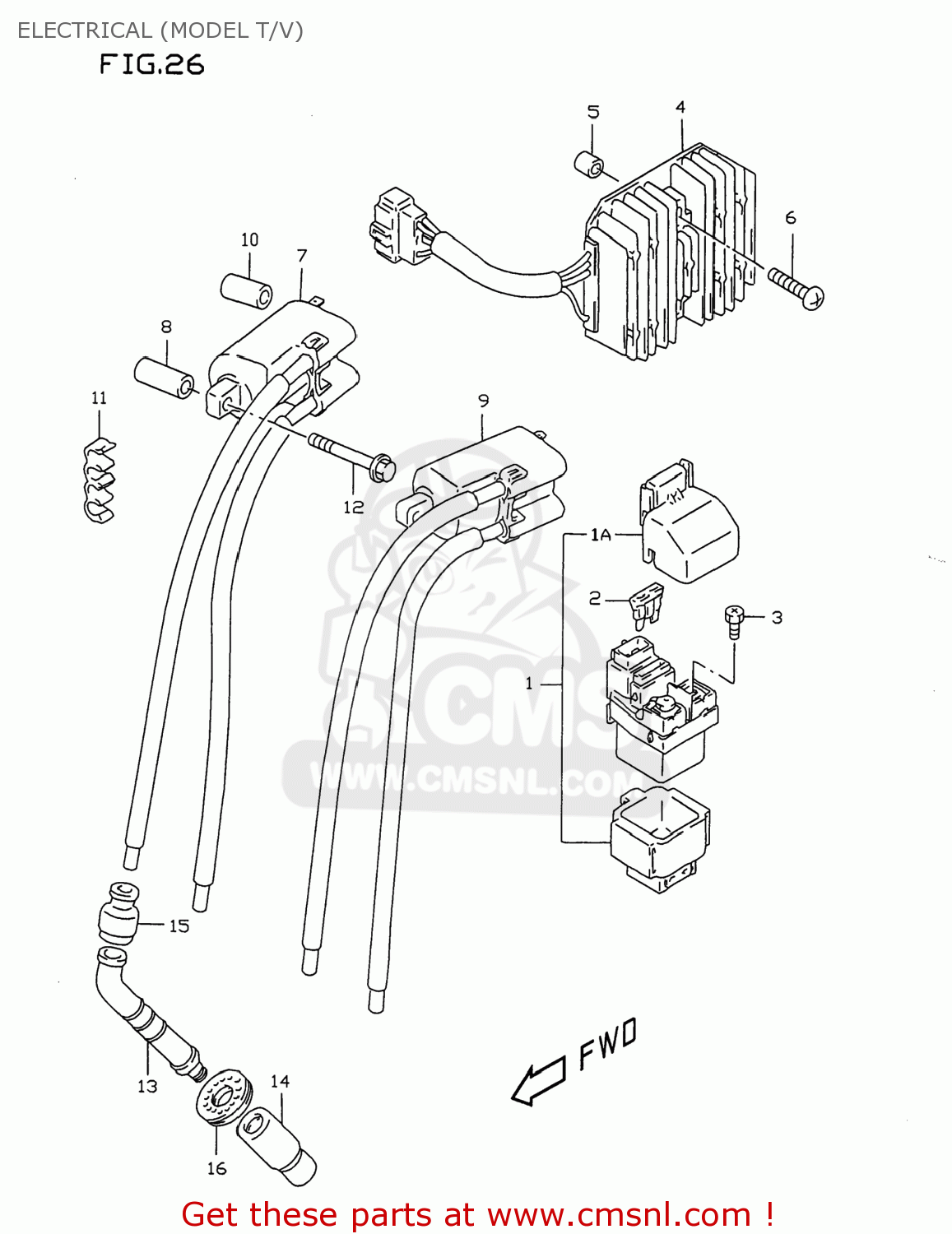

Electrical (model t/v) diagram GSXR750 1996 (T) USA (E03)
ELECTRICAL (MODEL T/V) GSXR750 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180026E00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 77.50
1A
3186126E00
ref: 1A
COVER,STARTER RELAY
€ 3.50
2
0948130101
ref: 2
FUSE(30A)
€ 6.00
3
0912806013
ref: 3
SCREW(6X8)
€ 1.50
4
3280033E00
ref: 4
32800-44D11
RECTIFIER ASSEMBLY
€ 368.00
5-1
0918006002
ref: 5-1
09180-06283
SPACER
€ 2.00
5-2
0918006283
ref: 5-2
SPACER(6.5X10X7)
€ 2.00
6-1
0214206303
ref: 6-1
02142-0630B
SCREW
€ 2.00
6-2
0214206353
ref: 6-2
02142-0635A
SCREW
€ 2.00
7
3341033E10
ref: 7
COIL ASSY,IGNITION
€ 101.00
8
0918006203
ref: 8
SPACER(6.5X10.5X25)
€ 3.50
9
3342033E10
ref: 9
COIL ASSY,IGNITION
€ 106.50
10
0918006196
ref: 10
SPACER(6.4X10X28)
€ 3.00
11
0940800035
ref: 11
CLIP
€ 2.00
12
0155006503
ref: 12
01550-0650A
BOLT
€ 2.00
13
3351017E11
ref: 13
CAP ASSY,SPARK PLUG
€ 46.00
14
3354120C00
ref: 14
SEAL,SPARK PLUG
€ 19.50
15
3354238B00
ref: 15
SEAL,HIGH TENSION CORD
€ 4.50
16
3354333E00
ref: 16
33543-33E01
COVER,SPARK PLUG CAP
€ 4.00
