OIL PAN - OIL PUMP - FUEL PUMP (MODEL T/V)

GSXR750 1996 (T) USA (E03)

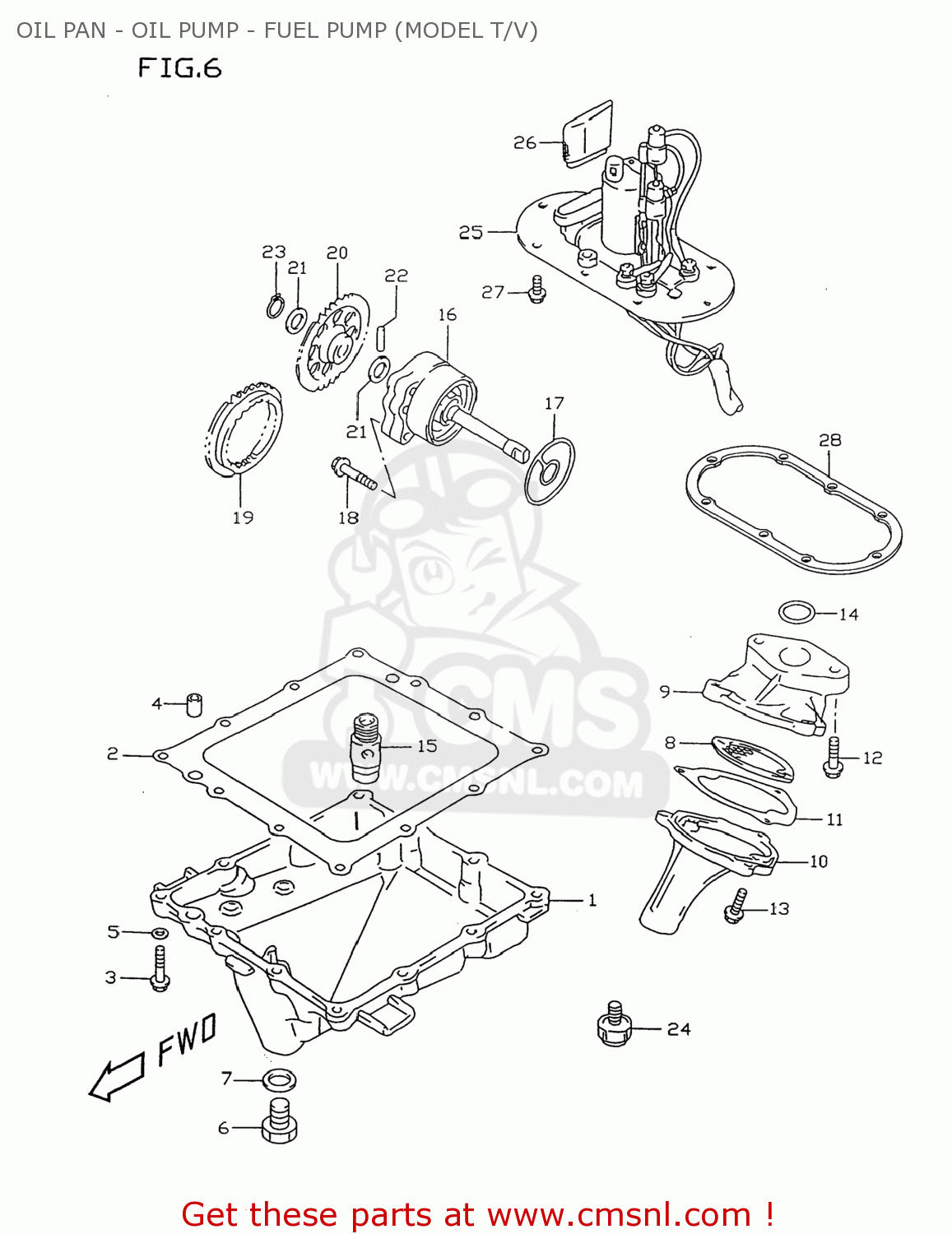

Oil pan - oil pump - fuel pump (model t/v) diagram GSXR750 1996 (T) USA (E03)

OIL PAN - OIL PUMP - FUEL PUMP (MODEL T/V) GSXR750 1996 (T) USA (E03)

OIL PAN - OIL PUMP - FUEL PUMP (MODEL T/V) GSXR750 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1151133E00
ref: 1

PAN,OIL

€ 174.00

2

1148933E00
ref: 2

GASKET,OIL PAN (NAS)

€ 28.00

3

0155006303
ref: 3
01550-0630A

BOLT

€ 2.50

4

0421109189
ref: 4

PIN

€ 2.00

5

0916806024
ref: 5

GASKET(5.8X11X1.2) (NAS)

€ 2.00

6

0924714001
ref: 6
09247-14002

PLUG

€ 5.00

7

0916814002
ref: 7
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

8

1652037400
ref: 8

STRAINER,ENGINE OIL

€ 7.00

9

1652533E00
ref: 9

PROTECTOR,OIL STRAINER

€ 21.50

10

1652633E00
ref: 10

COVER,OIL STRAINER

€ 20.50

11

1652733E00
ref: 11

GASKET,OIL STRAINER

€ 7.50

12

0155006253
ref: 12
01550-0625A

BOLT

€ 2.50

13

0155006163
ref: 13
01550-0616A

BOLT

€ 2.50

14

0928019008
ref: 14

O RING(D:2.62,ID:20.3)

€ 5.50

15

1644033E00
ref: 15

VALVE ASSY,OIL RELIEF

€ 51.50

16

1640033E00
ref: 16

PUMP ASSY,ENGINE OIL

€ 188.50

17

1649133E00
ref: 17

O RING,OIL PUMP

€ 5.50

18

0155006303
ref: 18
01550-0630A

BOLT

€ 2.50

19

1632133E00
ref: 19
16321-33E10

GEAR,OIL PUMP DRIVE (NT

€ 37.00

20

1633219C00
ref: 20

GEAR,OIL PUMP DRIVEN(NT:37)

€ 60.00

21

0822112205
ref: 21

SHIM

€ 1.50

22

0926105006
ref: 22

PIN(5X18)

€ 1.50

23

0833131126
ref: 23
08331-3112A

CIRCLIP,12 MM

€ 2.00

24

3782033D00
ref: 24
37820-33D10

SWITCH ASSEMBLY,OIL PRESSURE

€ 29.00

25

1510033E00
ref: 25
15100-34E00

PUMP ASSEMBLY,FUEL

€ 658.50

26

1517033E00
ref: 26
15170-34E00

STRAINER,FUEL PUMP

€ 39.00

27

0157005103
ref: 27
01570-0510B

BOLT

€ 2.00
