REAR CUSHION LEVER (MODEL V)
GSXR750 1996 (T) USA (E03)

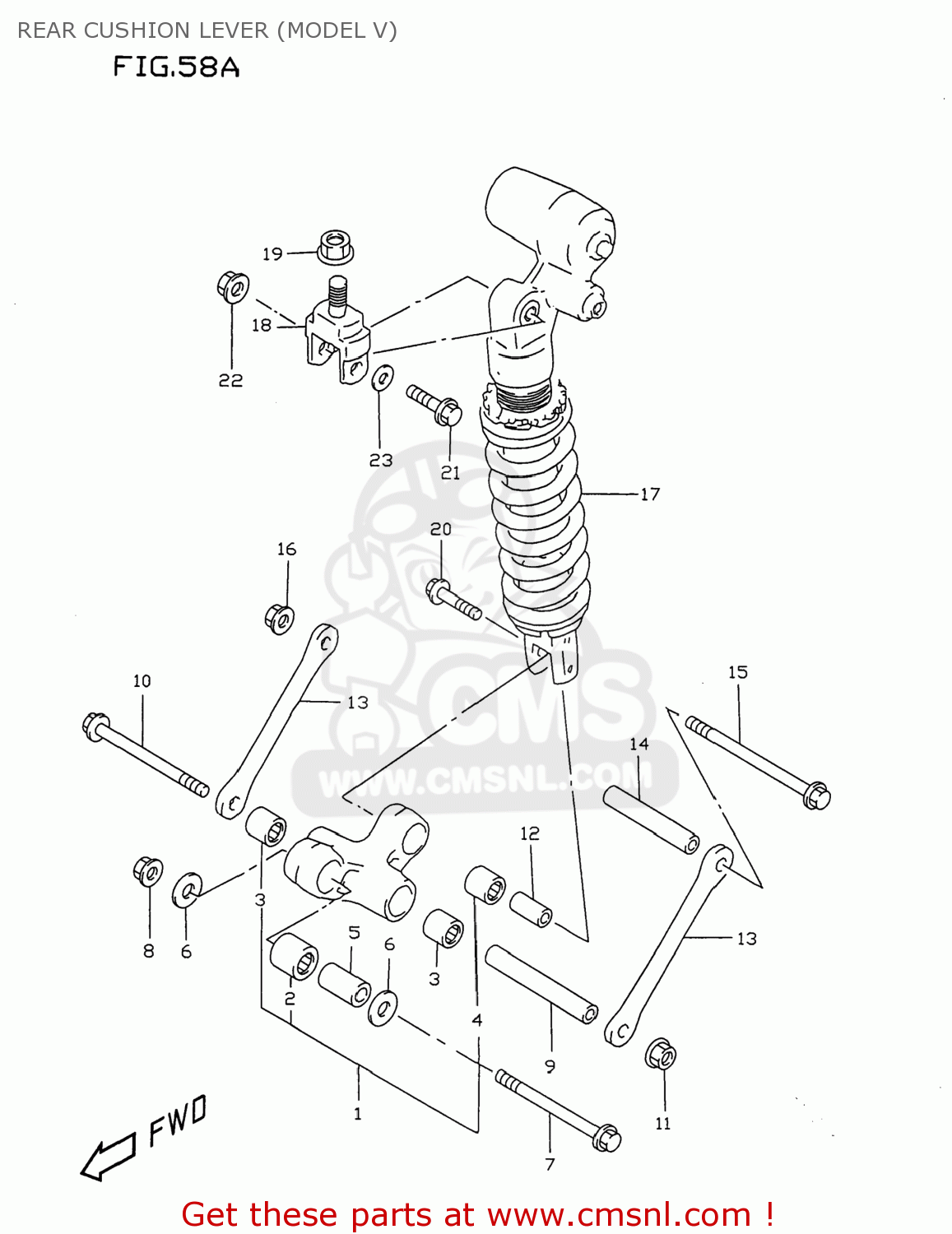

Rear cushion lever (model v) diagram GSXR750 1996 (T) USA (E03)
REAR CUSHION LEVER (MODEL V) GSXR750 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260033880
ref: 1
LEVER SET,RR CUSHION
€ 264.00
2
0926320073
ref: 2
BEARING(20X27X30)
€ 24.50
3
0926317039
ref: 3
BEARING(17X24X20)
€ 18.00
4
0926317034
ref: 4
BEARING(17X24X26)
€ 21.50
5
6268412C00
ref: 5
SPACER,RR CUSHION LEVER FR
€ 12.50
6
0821112301
ref: 6
WASHER
€ 2.00
7
6265833E00
ref: 7
BOLT,RR CUSHION LEVER FR
€ 19.50
8
0831931128
ref: 8
08319-3112A
NUT 12MM
€ 4.00
9
6262633D00
ref: 9
SPACER,RR CUSHION LEVER CTR
€ 17.50
10
6262133D00
ref: 10
BOLT,RR CUSHION LEVER CTR
€ 10.00
11
0831931128
ref: 11
08319-3112A
NUT 12MM
€ 4.00
12
6268440A10
ref: 12
SPACER,RR CUSHION LEVER
€ 11.50
13
6264133E00
ref: 13
ROD,RR CUSHION LEVER
€ 41.50
14
6262633D00
ref: 14
SPACER,RR CUSHION LEVER CTR
€ 17.50
15
6262133D00
ref: 15
BOLT,RR CUSHION LEVER CTR
€ 10.00
16
0831931128
ref: 16
08319-3112A
NUT 12MM
€ 4.00
17
6210033E00
ref: 17
ABSORBER ASSY,RR SHOCK
€ 1,181.00
18-1
6299333E10
ref: 18-1
62993-33E11
BRACKET,REAR SHOCK ABSORBER,UPPER
€ 86.50
18-1
6299333E10
ref: 18-1
62993-33E11
BRACKET,REAR SHOCK ABSORBER,UPPER
€ 86.50
18-2
6299333E11
ref: 18-2
BRACKET,RR SHOCK ABSORBER UP
€ 86.50
19
0915920006
ref: 19
NUT
€ 19.00
20
0910310049
ref: 20
BOLT(10X44)
€ 5.50
21-1
0910310249
ref: 21-1
09103-10255
BOLT
€ 8.00
21-2
0910310101
ref: 21-2
BOLT(10X54)
€ 3.00
22
0831931107
ref: 22
NUT
€ 3.00
23
0916010085
ref: 23
09160-10142
WASHER (10X20X2.3)
€ 2.00
