THROTTLE BODY ASSY (MODEL W/X

GSXR750 1996 (T) USA (E03)

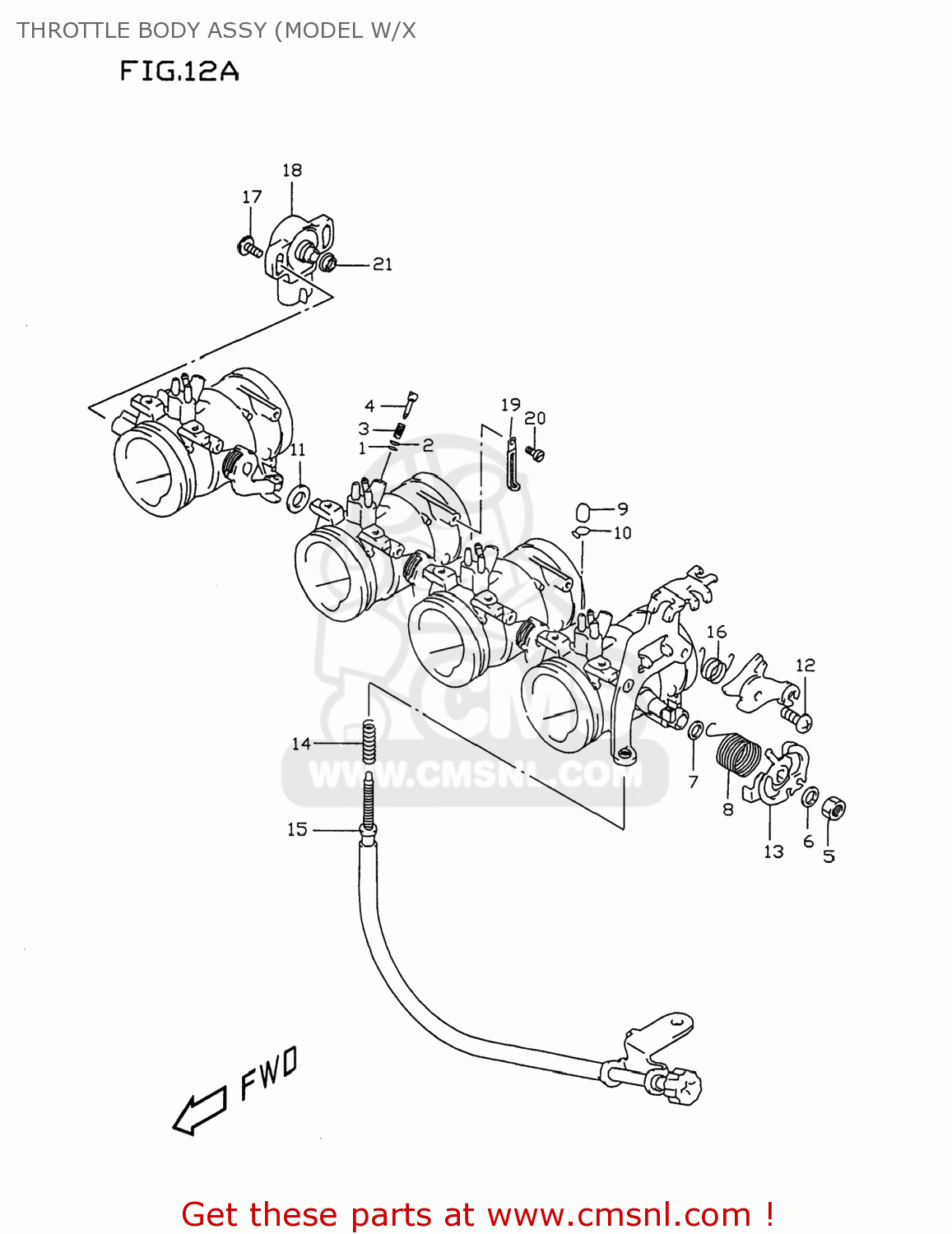

Throttle body assy (model w/x diagram GSXR750 1996 (T) USA (E03)

THROTTLE BODY ASSY (MODEL W/X GSXR750 1996 (T) USA (E03)

THROTTLE BODY ASSY (MODEL W/X GSXR750 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity



1340133E00
ref:

THROTTLE BODY ASSEMBLY,LEFT

€ 397.50



1340133E20
ref:

THROTTLE BODY ASSEMBLY,LEFT

€ 0.00



1340233E00
ref:

THROTTLE BODY ASSEMBLY,MIDDLE,LEFT

€ 392.00



1340233E20
ref:

THROTTLE BODY ASSEMBLY,MIDDLE,LEFT

€ 0.00



1340333E00
ref:

THROTTLE BODY ASSEMBLY,MIDDLE,RIGHT

€ 392.00



1340333E20
ref:

THROTTLE BODY ASSEMBLY,MIDDLE,RIGHT

€ 0.00



1340433E00
ref:

THROTTLE BODY ASSY,R

€ 426.00



1340433E20
ref:

THROTTLE BODY ASSEMBLY,RIGHT

€ 0.00

1

1329529900
ref: 1

O RING,PILOT AIR SCREW

€ 4.00

2

1360647A00
ref: 2

WASHER

€ 2.00

3

1326837B40
ref: 3

SPRING

€ 3.00

4

1326933E00
ref: 4

SCREW

€ 8.50

5

1360737010
ref: 5

NUT

€ 2.00

6

0832101087
ref: 6

WASHER,LOCK

€ 2.00

7

1365151010
ref: 7

SEAL

€ 4.00

8

1354333E00
ref: 8

SPRING

€ 8.00

9-1

1327484000
ref: 9-1

CAP

€ 5.50

9-2

1327484000
ref: 9-2

CAP

€ 5.50

10-1

0940106101
ref: 10-1

CLIP

€ 2.50

10-2

0940106101
ref: 10-2

CLIP

€ 2.50

11

1355795210
ref: 11

GASKET,THROTTLE SHAFT (NAS)

€ 2.50

12

1343333110
ref: 12

SCREW,STARTER LEVER

€ 5.50

13

1338609410
ref: 13

WASHER

€ 2.50

14

1327133C00
ref: 14

SPRING

€ 4.50

15

1326733E00
ref: 15

ADJUSTER

€ 73.00

16

1342633E00
ref: 16

SPRING

€ 6.50

17

1360502F00
ref: 17

SCREW

€ 3.00

18

1358002F00
ref: 18

SENSOR ASSY,THROTTLE

€ 118.50

19-1

0940406429
ref: 19-1

CLAMP(L:45)

€ 2.50

19-2

0940406432
ref: 19-2

CLAMP(L:65)

€ 2.50

20

1361333E10
ref: 20
02112-05087

BOLT

€ 2.00

21

1366331010
ref: 21

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50
