FRONT FENDER (MODEL T/V)
GSXR750 1996 (T) USA (E03)

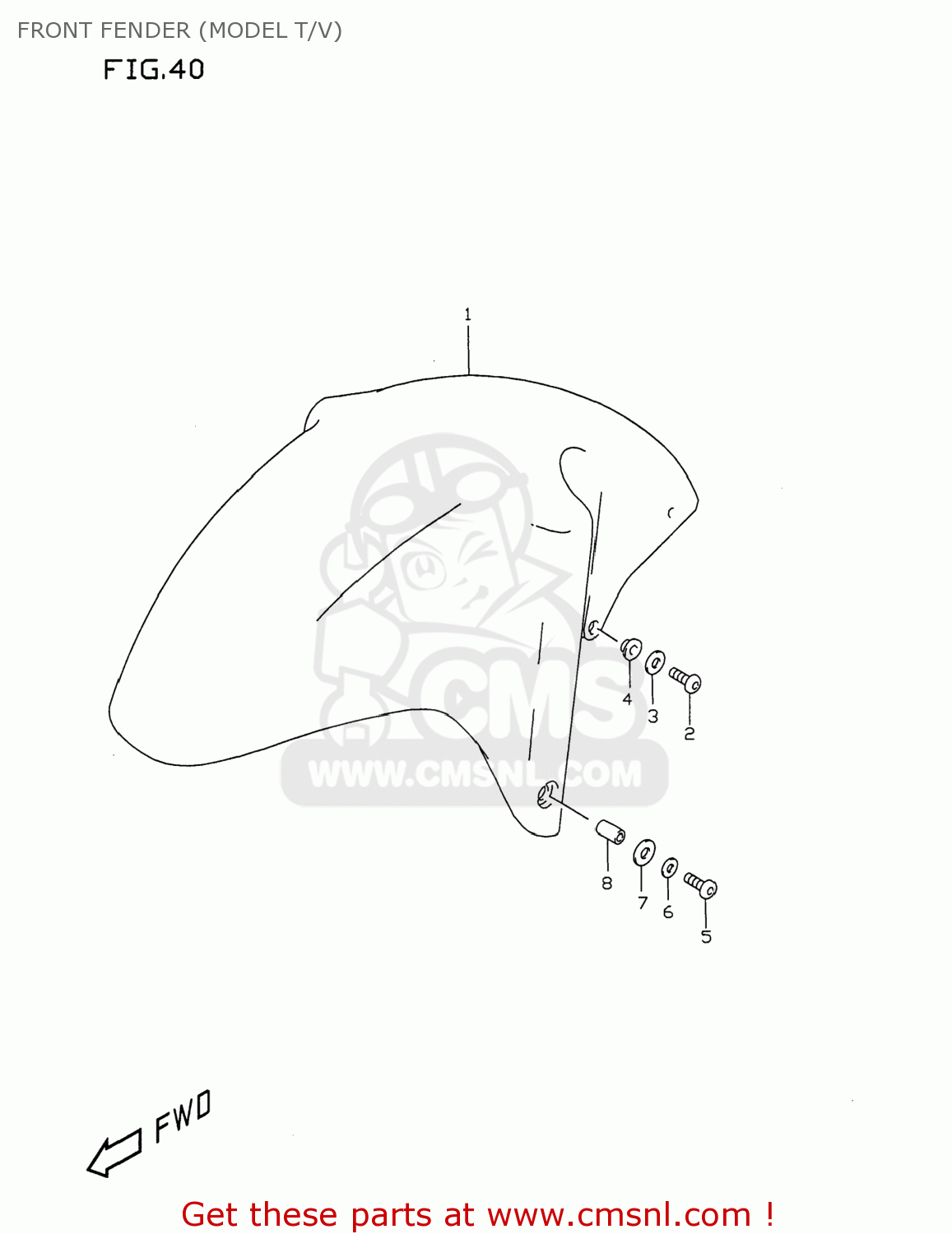

Front fender (model t/v) diagram GSXR750 1996 (T) USA (E03)
FRONT FENDER (MODEL T/V) GSXR750 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5311033E0029F
ref: 1-1
53110-33E50-29F
FENDER COMP,FRONT
€ 198.50
1-2
5311033E001LF
ref: 1-2
53110-33E50-1LF
FENDER COMP,FRONT
€ 193.00
1-3
5311033E00Y0W
ref: 1-3
53110-33E50-Y0W
FENDER COMP,FRONT
€ 181.00
2
0913906030
ref: 2
SCREW(6X16)
€ 3.50
3
0916006079
ref: 3
09160-06052
WASHER(6.5X16X1.2)
€ 2.00
4
0916106021
ref: 4
WASHER(6.3X16X1.5)
€ 2.50
5
0913906030
ref: 5
SCREW(6X16)
€ 3.50
6
0916006079
ref: 6
09160-06052
WASHER(6.5X16X1.2)
€ 2.00
7
5312133E00
ref: 7
WASHER,FR FENDER FR NO.2
€ 3.00
8-1
0918006027
ref: 8-1
09180-06258
SPACER (6.3X9.1X6.7)
€ 3.00
8-2
0918006258
ref: 8-2
SPACER(6.5X9X6.7)
€ 3.00
