FRAME
GSXR750 1996 (T) USA (E03)

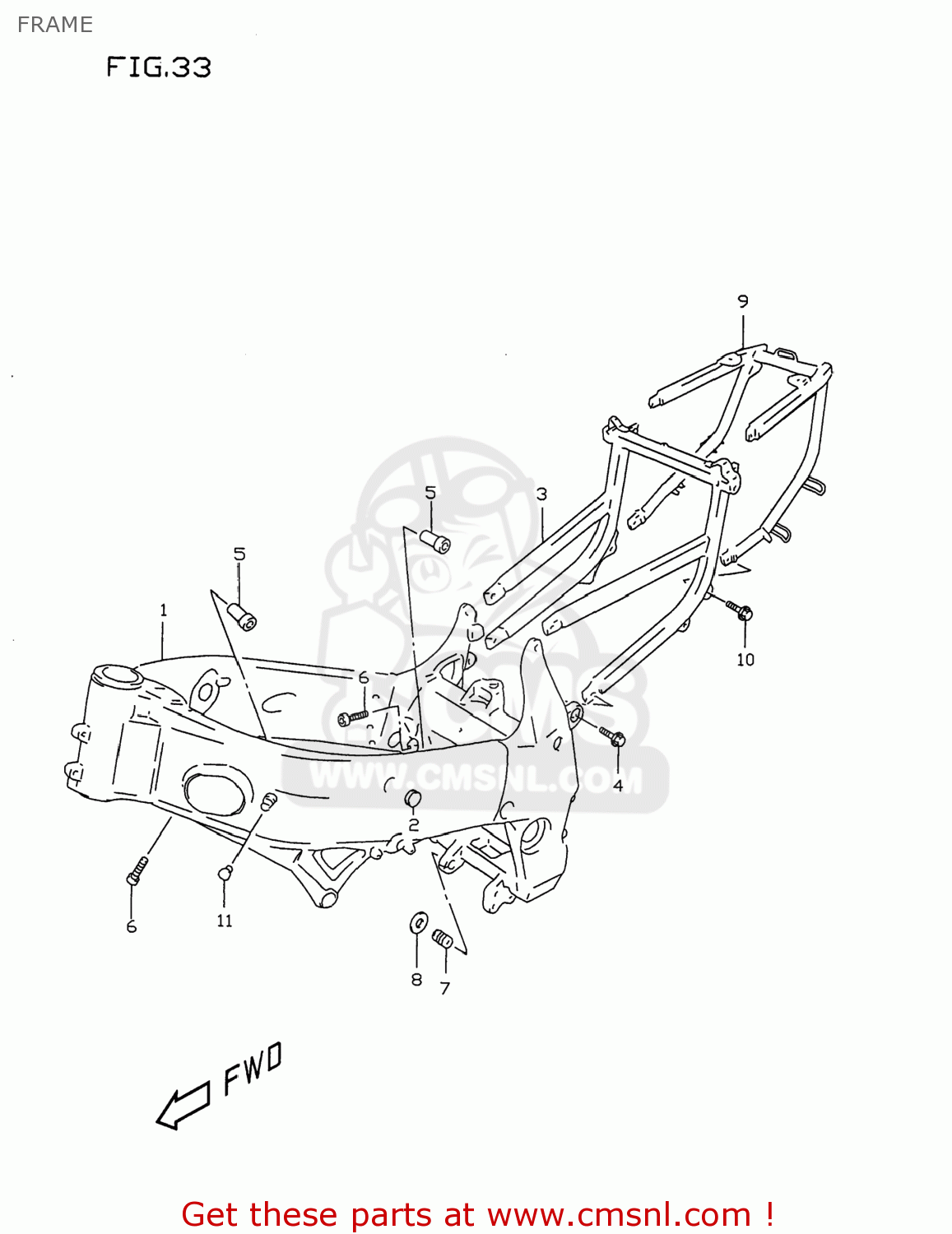

Frame diagram GSXR750 1996 (T) USA (E03)
FRAME GSXR750 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110033E00
ref: 1-1
41100-33831
FRAME COMP
€ 2,189.50
1-2
4110033E10
ref: 1-2
41100-33E20
FRAME COMP
€ 1,556.00
1-3
4110033E20
ref: 1-3
FRAME
€ 1,556.00
2
4358533E00
ref: 2
CAP,TANK RAIL
€ 9.00
3-1
4120033E00
ref: 3-1
41200-33E20
RAIL COMP,SEAT
€ 684.00
3-2
4120033E20
ref: 3-2
RAIL,SEAT
€ 684.00
4-1
5919933E00
ref: 4-1
09103-10296
BOLT,SEAT RAIL
€ 6.00
4-2
0910310296
ref: 4-2
BOLT(10X30)
€ 6.00
5
4191133E00
ref: 5
41911-40F01
SPACER,ENGINE MOUNTING
€ 16.50
6
0713008303
ref: 6
07130-0830A
BOLT
€ 3.00
7-1
4192133E00
ref: 7-1
BOLT,CRANKCASE ADJUST
€ 24.00
7-2
4192133E10
ref: 7-2
41921-33E11
BOLT,CRANKCASE ADJUST
€ 46.00
7-3
4192133E11
ref: 7-3
BOLT,CRANKCASE ADJUST
€ 46.00
8-1
4192233E00
ref: 8-1
NUT,CRANK CASE ADJUST BOLT
€ 18.50
8-2
4192233E10
ref: 8-2
NUT,CRANKCASE ADJUST
€ 14.50
9-1
4398033E00
ref: 9-1
43980-33E20
GRIP COMP,REAR
€ 372.00
9-2
4398033E20
ref: 9-2
GRIP,RR
€ 372.00
10
0155008203
ref: 10
01550-0820A
BOLT
€ 3.00
11
0925006001
ref: 11
09250-06005
CAP
€ 2.00
