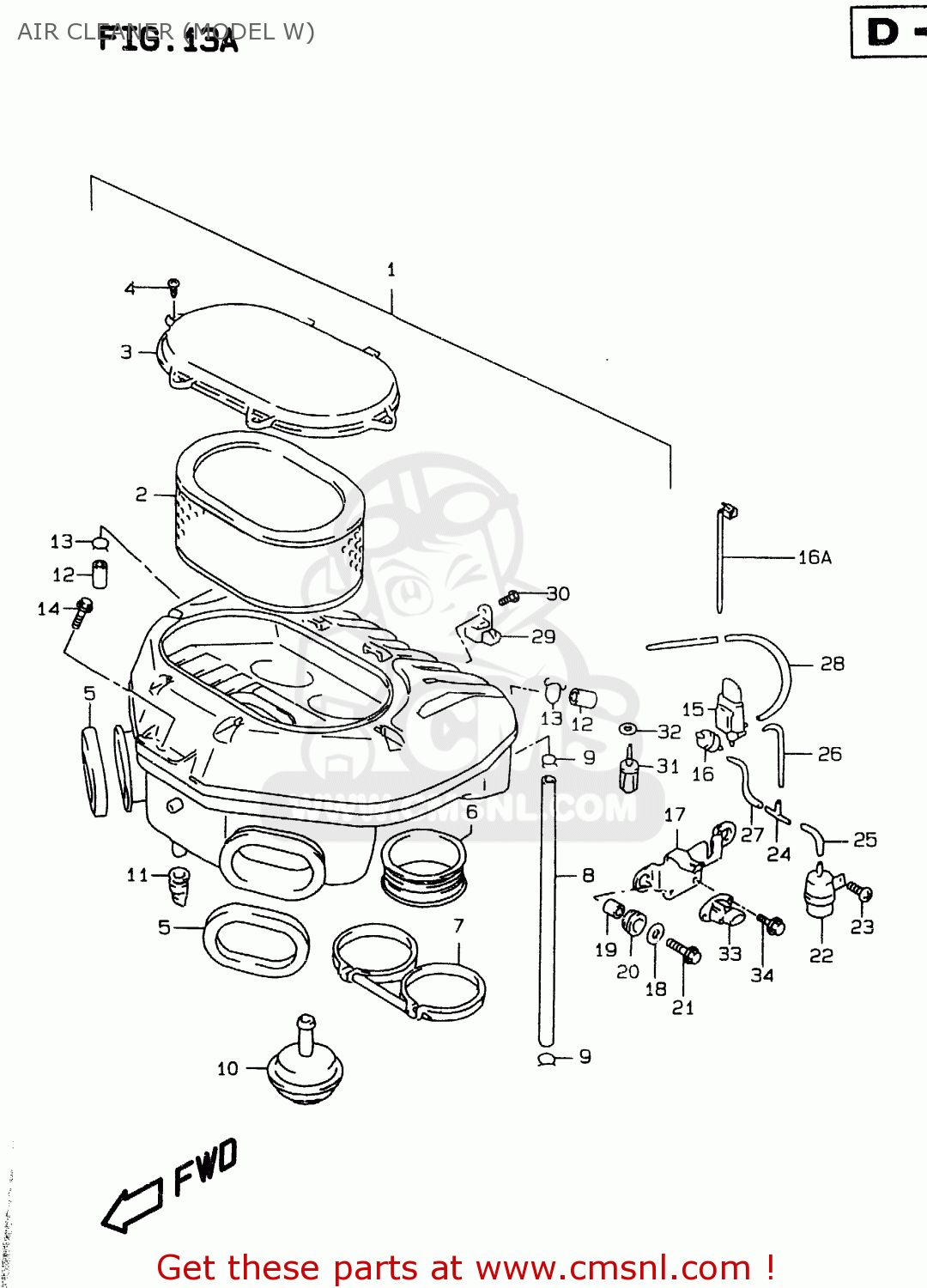

AIR CLEANER (MODEL W)

ref

part #

description

quantity

1-1

1370033E50
ref: 1-1

CLEANER ASSEMBLY,AIR

€ 326.00

1-2

1370033E60
ref: 1-2
E18, E39

CLEANER ASSEMBLY,AIR

€ 326.00

2

1378033E01
ref: 2

FILTER,AIR CLEANER

€ 41.00

3

1374033E00
ref: 3

CAP,AIR CLEANER

€ 30.00

4

0214205123
ref: 4

SCREW 5X12

€ 1.50

5

1373633E00
ref: 5

CUSHION,DUCT

€ 11.50

6

1388133E50
ref: 6

TUBE,OUTLET

€ 15.50

7

1382633E50
ref: 7

CLAMP

€ 29.00

8

1385033E00
ref: 8

TUBE,BREATHER

€ 10.00

9

0940114301
ref: 9

CLIP

€ 2.00

10

1389533E50
ref: 10

DIAPHRAGM,CONTROL VALVE

€ 45.00

11

1387200110
ref: 11

CAP,DRAIN

€ 3.50

12-1

1385941B10
ref: 12-1

PLUG

€ 5.50

12-2

1385941B10
ref: 12-2
E18, E39

PLUG

€ 5.50

13-1

0940114301
ref: 13-1

CLIP

€ 2.00

13-2

0940114301
ref: 13-2
E18, E39

CLIP

€ 2.00

14

0158006163
ref: 14

BOLT

€ 2.50

15

1811570G10
ref: 15

VALVE ASSY,3WAY SOLENOID

€ 73.50

16

9556978040
ref: 16

VALVE,CHECK

€ 24.00

16A

0940714403
ref: 16A

CLAMP(L:125)

€ 2.50

17

1811933E00
ref: 17

BRACKET,SOLENOID VALVE

€ 7.50

18

0916006077
ref: 18

WASHER(6.5X20X1.2)

€ 2.00

19

0918006257
ref: 19

SPACER(6.5X9X6.5)

€ 2.50

20

0932009036
ref: 20

CUSHION

€ 4.00

21

0150006203
ref: 21

BOLT

€ 2.00

22

1371502F00
ref: 22

CHAMBER,VACUUM

€ 20.50

23

0214205123
ref: 23

SCREW 5X12

€ 1.50

24

0936704007
ref: 24

3 WAY

€ 3.50

25

0935540805600
ref: 25
L:600->40

HOSE(4X8X600)

€ 9.00

26

0935540805600
ref: 26
L:600->150

HOSE(4X8X600)

€ 9.00

27

0935540805600
ref: 27
L:600->160

HOSE(4X8X600)

€ 9.00

28

0935540805600
ref: 28
L:600->480

HOSE(4X8X600)

€ 9.00

29

1562002F00
ref: 29

SENSOR,BOOST

€ 280.50

30

0214206103
ref: 30

SCREW 6X10

€ 2.00

31

1365061B00
ref: 31

SENSOR,WATER TEMP

€ 60.00

32

0916812016
ref: 32

GASKET(12.2X21X0.8) (NAS)

€ 2.50

33

1859080C50
ref: 33

SENSOR,MAP

€ 365.50

34

0155006123
ref: 34

BOLT

€ 2.50

all assemblies
