STARTING MOTOR

GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

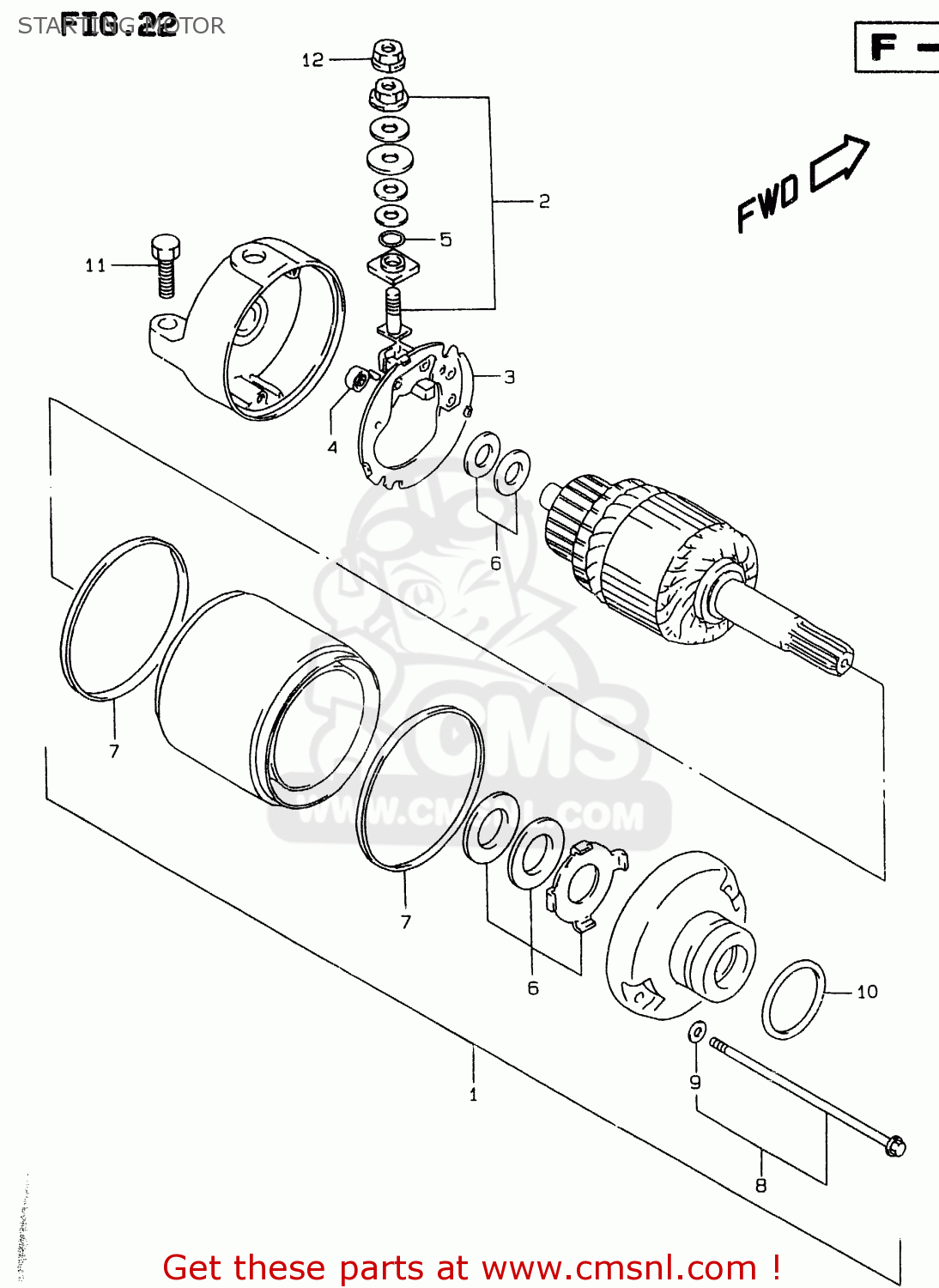

Starting motor diagram GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

3110033E00
ref: 1

MOTOR ASSEMBLY,STARTING

€ 451.50

3113013E00
ref: 2

BRUSH TERMINAL SET

€ 42.50

3113233E00
ref: 3

BRUSH HOLDER SET

€ 57.00

3113531300
ref: 4

SPRING,BRUSH

€ 4.00

3114349040
ref: 5

O RING

€ 3.00

3117019B10
ref: 6

SHIM SET,STARTING MOTOR

€ 8.00

3126413E00
ref: 7

O RING

€ 6.00

3128013E00
ref: 8

BOLT

€ 16.50

3115613E00
ref: 9

O RING

€ 3.00

0928024003
ref: 10

O RING(D:3,ID:24.5)

€ 2.00

0912806024
ref: 11

SCREW (6X25)

€ 2.50

0836135068
ref: 12

NUT

€ 2.00
