COWLING BODY (MODEL T)

GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

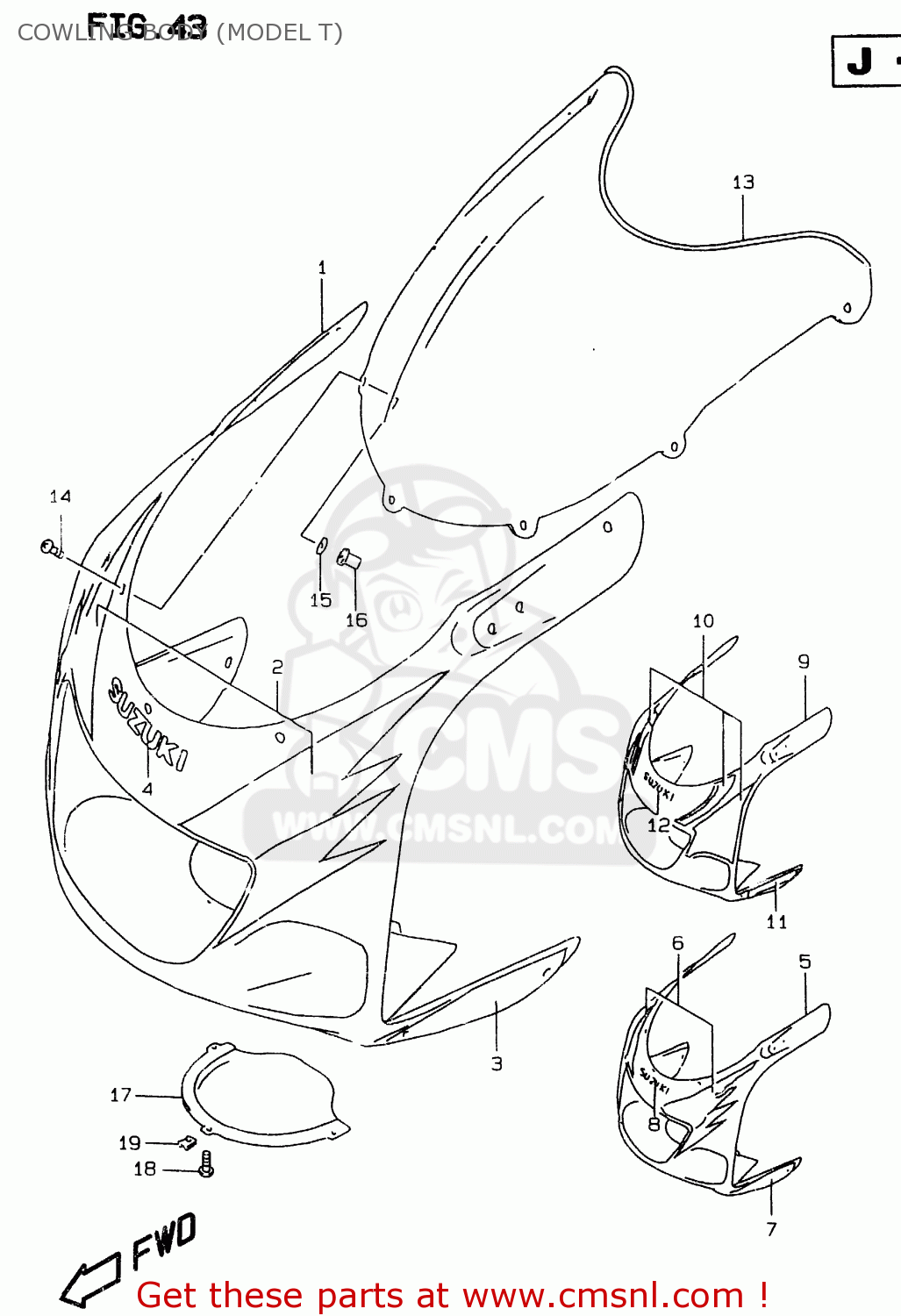

Cowling body (model t) diagram GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

COWLING BODY (MODEL T) GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

COWLING BODY (MODEL T) GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

9440033E1017U
ref: 1
FOR C3B

COWLING ASSY,BODY

€ 424.00

2

6827033E10Z89
ref: 2

TAPE,COWL BODY FR

€ 58.50

3

6828033E101TU
ref: 3

TAPE,COWL BODY SIDE

€ 26.00

4

6818505C1013L
ref: 4

EMBLEM,COWLING UPR

€ 10.50

5

9440033E2029F
ref: 5
FOR F1S

COWLING ASSEMBLY,BODY

€ 531.00

6

6827033E20Z88
ref: 6

TAPE SET,COWL BODY FR

€ 61.00

7

6828033E10Z66
ref: 7

TAPE,COWL BODY SIDE

€ 26.00

8

6818505C100FP
ref: 8

EMBLEM,COWLING UPR

€ 10.50

9

9440033E000JW
ref: 9
FOR L99

COWLING ASSY,BODY

€ 546.00

10

6827033E00F3U
ref: 10

TAPE SET,COWLING BODY

€ 59.00

11

6828033E001LF
ref: 11

TAPE,COWL BODY SIDE

€ 19.00

12

6818505C101LF
ref: 12

EMBLEM,SUZUKI

€ 13.50

13

9461133E00
ref: 13

WINDSCREEN

€ 148.00

14

0913905025
ref: 14

SCREW(5X14)

€ 2.00

15

0832201053
ref: 15

WASHER

€ 2.50

16

0915905019
ref: 16

NUT

€ 5.50

17

9441933E00
ref: 17

LID,BODY COWLING,LOWER

€ 17.00

18

0324115123
ref: 18

SCREW

€ 2.50

19

0914805038
ref: 19

NUT

€ 2.50
