CARBURETOR (MODEL T/V)

GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

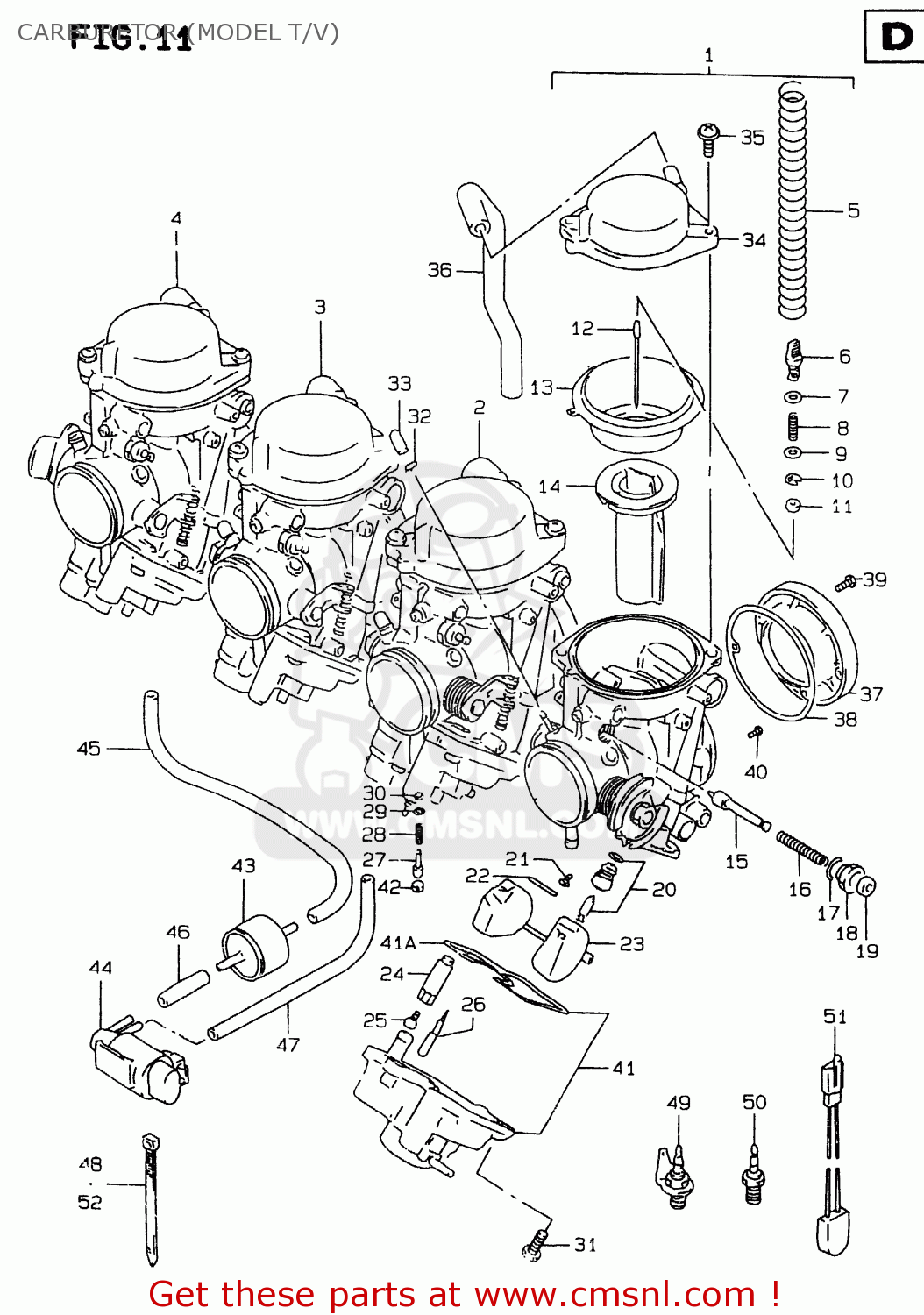

Carburetor (model t/v) diagram GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

CARBURETOR (MODEL T/V) GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
CARBURETOR (MODEL T/V) GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
CARBURETOR (MODEL T/V) GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1320133E00
ref: 1-1
CARBURETOR ASSY, LH
1320133E00
€ 646.00
1-2
1320133E10
ref: 1-2
E18, E24
CARBURETOR ASSEMBLY,LEFT
€ 0.00
1-3
1320133E40
ref: 1-3
E22
CARBURETOR ASSY,L
€ 568.50
1-4
1320133E80
ref: 1-4
P37
CARBURETOR ASSY, LH
€ 0.00
1-5
1320133E90
ref: 1-5
E39
CARBURETOR ASSY, LH
€ 0.00
2-1
1320233E00
ref: 2-1
CARBURETOR ASSY, ML
1320233E00
€ 669.00
2-2
1320233E10
ref: 2-2
E18, E24
CARBURETOR ASSEMBLY,MIDDLE,LEFT
€ 0.00
2-3
1320233E40
ref: 2-3
E22
CARBURETOR ASSY, ML
€ 653.50
2-4
1320233E80
ref: 2-4
P37
CARBURETOR ASSY, ML
€ 0.00
2-5
1320233E90
ref: 2-5
E39
CARBURETOR ASSY, ML
€ 0.00
3-1
1320333E00
ref: 3-1
CARBURETOR ASSY, MR
€ 678.50
3-2
1320333E10
ref: 3-2
E18, E24
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
€ 0.00
3-3
1320333E40
ref: 3-3
E22
CARBURETOR ASSY, MR
€ 653.50
3-4
1320333E80
ref: 3-4
P37
CARBURETOR ASSY, MR
€ 0.00
3-5
1320333E90
ref: 3-5
E39
CARBURETOR ASSY, MR
€ 0.00
4-1
1320433E00
ref: 4-1
CARBURETOR ASSY, RH
1320433E00
€ 646.00
4-2
1320433E10
ref: 4-2
E18, E24
CARBURETOR ASSEMBLY,RIGHT
€ 865.50
4-3
1320433E40
ref: 4-3
E22
CARBURETOR ASSY, RH
€ 653.50
4-4
1320433E80
ref: 4-4
P37
CARBURETOR ASSY, RH
€ 0.00
4-5
1320433E90
ref: 4-5
E39
CARBURETOR ASSY, RH
€ 0.00
5
1357333E00
ref: 5
SPRING
1357333E00
€ 10.50
6
1341833E00
ref: 6
HOLDER
1341833E00
€ 4.50
7
0928005004
ref: 7
O RING(D:1.9,ID:4.8)
0928005004
€ 2.00
8
1348133E00
ref: 8
SPRING
1348133E00
€ 3.00
9
1338244030
ref: 9
WASHER
1338244030
€ 3.50
10
1339417E60
ref: 10
E RING,MULTIPLE JET NOZZLE
1339417E60
€ 1.50
11
1338733E00
ref: 11
RING
€ 5.00
12-1
1338333E00
ref: 12-1
JET,NEEDLE(6E38-54)
1338333E00
€ 17.50
12-2
1338333E20
ref: 12-2
E18, E24, E39
JET,NEEDLE(6E41-55)
1338333E20
€ 12.50
13
1350733E00
ref: 13
DIAPHRAGM
1350733E00
€ 44.00
14-1
1350133E00
ref: 14-1
VALVE,PISTON
1350133E00
€ 80.00
14-2
1350133E10
ref: 14-2
E22
VALVE,PISTON
1350133E10
€ 64.50
15
1341105300
ref: 15
PLUNGER
1341105300
€ 23.50
16
1341726D00
ref: 16
SPRING
1341726D00
€ 5.50
17
1327847090
ref: 17
O RING
1327847090
€ 2.00
18
1341844080
ref: 18
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
19
1368231210
ref: 19
CAP,STARTER VALVE
1368231210
€ 5.00
20-1
1337033E00
ref: 20-1
VALVE ASSEMBLY,NEEDLE
€ 61.00
20-2
1337033E80
ref: 20-2
P37
VALVE ASSY,NEEDLE(NI)
1337033E80
€ 61.00
21
1360205A10
ref: 21
SCREW
1360205A10
€ 4.00
22
1325492910
ref: 22
PIN,FLOAT
1325492910
€ 3.00
23
1325033E00
ref: 23
FLOAT ASSY
1325033E00
€ 41.00
24
1338533E00
ref: 24
HOLDER,JET
1338533E00
€ 25.00
25-1
0949125018
ref: 25-1
LH, RH
JET,MAIN(127.5)
0949125018
€ 15.50
25-2
0949125014
ref: 25-2
ML, MR
JET,MAIN(125)
0949125014
€ 11.50
26
0949212008
ref: 26
JET,PILOT(12.5)
0949212008
€ 14.00
27-1
1327933E00
ref: 27-1
ADJUSTER
1327933E00
€ 9.50
27-2
1327933E00
ref: 27-2
LH, RH E18, E24
ADJUSTER
1327933E00
€ 9.50
27-3
1327933E00
ref: 27-3
ML, MR E18, E24
ADJUSTER
1327933E00
€ 9.50
27-4
1327933E00
ref: 27-4
E22
ADJUSTER
1327933E00
€ 9.50
27-5
1327933E00
ref: 27-5
LH, RH P37
ADJUSTER
1327933E00
€ 9.50
27-6
1327933E00
ref: 27-6
ML, MR P37
ADJUSTER
1327933E00
€ 9.50
27-7
1327933E00
ref: 27-7
LH, RH E39
ADJUSTER
1327933E00
€ 9.50
27-8
1327933E00
ref: 27-8
ML, MR E39
ADJUSTER
1327933E00
€ 9.50
28
1326848700
ref: 28
SPRING,THROTTLE SCREW
1326848700
€ 3.50
29
1329129900
ref: 29
WASHER
1329129900
€ 2.00
30
1329529900
ref: 30
O RING,PILOT AIR SCREW
1329529900
€ 4.00
31
0211205127
ref: 31
SCREW
0211205127
€ 2.50
32
0940106101
ref: 32
LH, ML, MR
CLIP
0940106101
€ 2.50
33
1327484000
ref: 33
LH, ML, MR
CAP
1327484000
€ 5.50
34-1
1350233E00
ref: 34-1
COVER ASSY
1350233E00
€ 38.50
34-2
1350233E10
ref: 34-2
E39
COVER,DIAPHRAG
€ 33.00
35
1324733E00
ref: 35
SCREW
1324733E00
€ 3.00
36
1368433E10
ref: 36
HOSE
€ 27.50
37
1366733E00
ref: 37
FUNNEL
€ 33.00
38
1324933E00
ref: 38
GASKET
1324933E00
€ 7.50
39
0211204123
ref: 39
SCREW
0211204123
€ 1.50
40-1
0949222015
ref: 40-1
JET, PILOT AIR (110)
€ 9.50
40-2
0949225013
ref: 40-2
E18, E24, E39
JET,PILOT(127.5)
€ 10.50
41-1
1324533E00
ref: 41-1
BODY ASSEMBLY,FLOAT,LEFT
€ 81.00
41-2
1324533E10
ref: 41-2
BODY ASSEMBLY,FLOAT,MIDDLE LEFT
€ 106.50
41-3
1324533E20
ref: 41-3
BODY ASSEMBLY,FLOAT,MIDDLE RIGHT
€ 93.00
41-4
1324533E30
ref: 41-4
BODY ASSEMBLY,FLOAT,RIGHT
€ 81.00
41A
1325833E00
ref: 41A
O RING
1325833E00
€ 9.50
42
1328105A00
ref: 42
E18, E24
PLUG
1328105A00
€ 3.50
43
1811482150
ref: 43
VALVE,VACUUM TRANSMITTING
€ 30.00
44
1811570G10
ref: 44
VALVE ASSY,3WAY SOLENOID
€ 73.50
45
0935540805600
ref: 45
L:600->280
HOSE(4X8X600)
0935540805600
€ 9.00
46
0935540805600
ref: 46
L:600->80
HOSE(4X8X600)
0935540805600
€ 9.00
47
0935540805600
ref: 47
L:600->220
HOSE(4X8X600)
0935540805600
€ 9.00
48
0940711401
ref: 48
CLAMP(L:95)
0940711401
€ 2.50
49
1365025E01
ref: 49
E2
HEATER ASSY,CARBURETOR(15W)
1365025E01
€ 35.00
50
1365125E01
ref: 50
E2 ->13650-25E01
HEATER, CARB.
€ 35.00
51
1365525E00
ref: 51
E2
THERMO SWITCH,CARB HEATER
1365525E00
€ 36.00
52
0940711401
ref: 52
E2
CLAMP(L:95)
0940711401
€ 2.50
