THROTTLE BODY FITTING (MODEL W)

GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

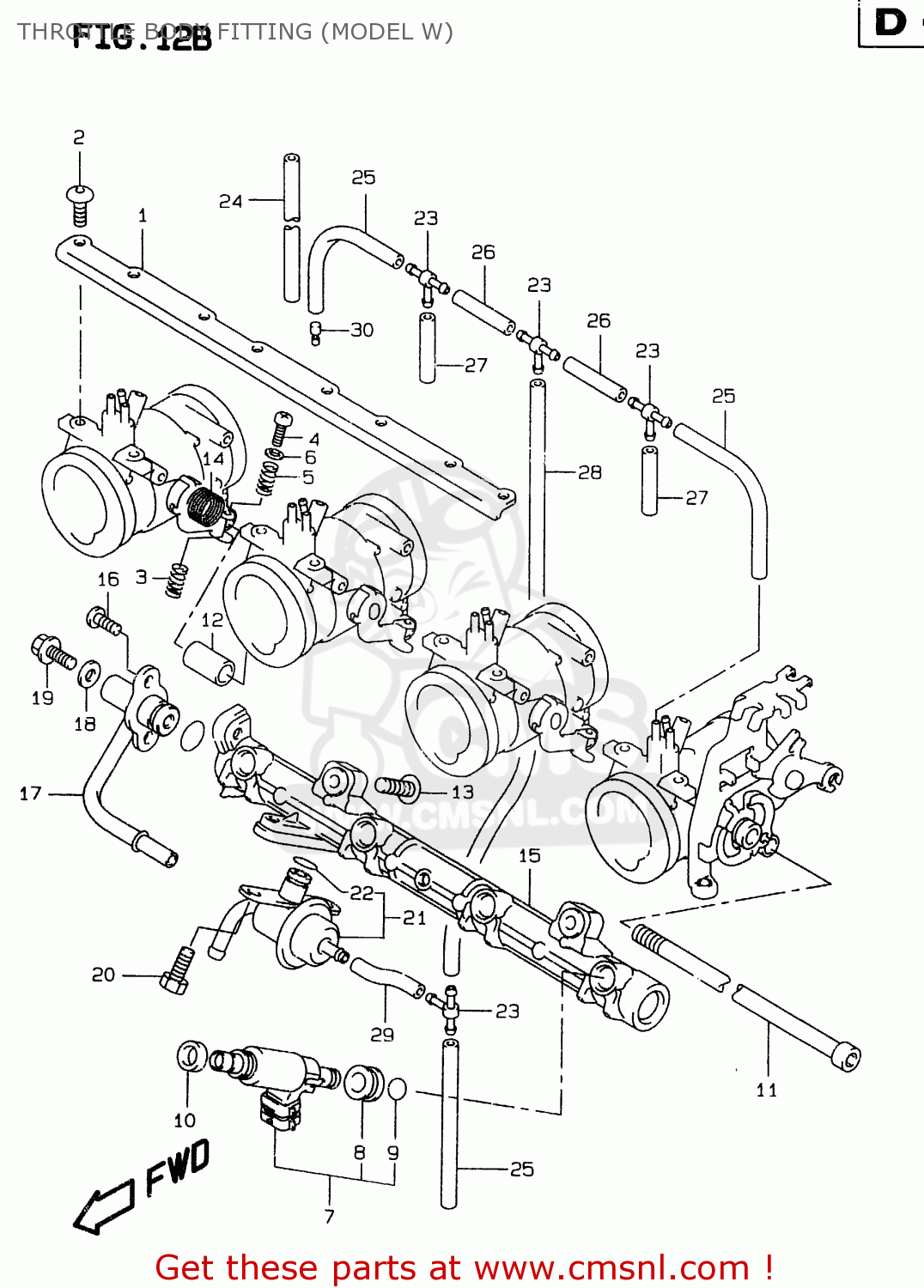

Throttle body fitting (model w) diagram GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

THROTTLE BODY FITTING (MODEL W) GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

THROTTLE BODY FITTING (MODEL W) GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

1362533E00
ref: 1

PLATE

€ 31.50

2

1360233E00
ref: 2

BOLT

€ 1.50

3

1326896110
ref: 3

SPRING,THROTTLE SCREW

€ 4.50

4

1337284301
ref: 4

SCREW

€ 5.00

5

1327193311
ref: 5

SPRING

€ 4.50

6

1342738300
ref: 6

WASHER

€ 1.50

7

1571033E00
ref: 7

INJECTOR ASSEMBLY,FUEL

€ 215.00

8

1572009300
ref: 8

GROMMET

€ 4.50

9

1571702F00
ref: 9

O RING

€ 4.00

10

1367233E00
ref: 10

CUSHION,FUEL INJECTOR

€ 12.50

11

1361333E00
ref: 11

BOLT

€ 12.00

12

1361533E00
ref: 12

RING

€ 14.00

13

1360233E10
ref: 13

BOLT

€ 5.00

14

1357306C10
ref: 14

SPRING

€ 7.00

15

1573133E00
ref: 15

DELIVERY PIPE

€ 140.50

16

0211205127
ref: 16

SCREW

€ 2.50

17

1573233E00
ref: 17

NIPPLE

€ 96.00

18

0916806023
ref: 18

GASKET(5.8X13X1.2) (NAS)

€ 2.00

19

1756850F00
ref: 19

UNION BOLT,AIR VENT

€ 3.50

20

1361202F00
ref: 20

BOLT

€ 3.50

21

1561033E00
ref: 21

REGULATOR COMP,FUEL

€ 185.50

22

1571009300
ref: 22

O RING

€ 4.00

23

0936704007
ref: 23

3 WAY

€ 3.50

24

0935535755600
ref: 24
L:600->165

HOSE(3.5X7.5X600)

€ 10.00

25

0935535755600
ref: 25
L:600->100

HOSE(3.5X7.5X600)

€ 10.00

26

0935535755600
ref: 26
L:600->40

HOSE(3.5X7.5X600)

€ 10.00

27

0935535755600
ref: 27
L:600->35

HOSE(3.5X7.5X600)

€ 10.00

28

0935535755600
ref: 28
L:600->150

HOSE(3.5X7.5X600)

€ 10.00

29

0935535755600
ref: 29
L:600->50

HOSE(3.5X7.5X600)

€ 10.00

30

0949320015
ref: 30

JET

€ 12.00
