TAIL LAMP

GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

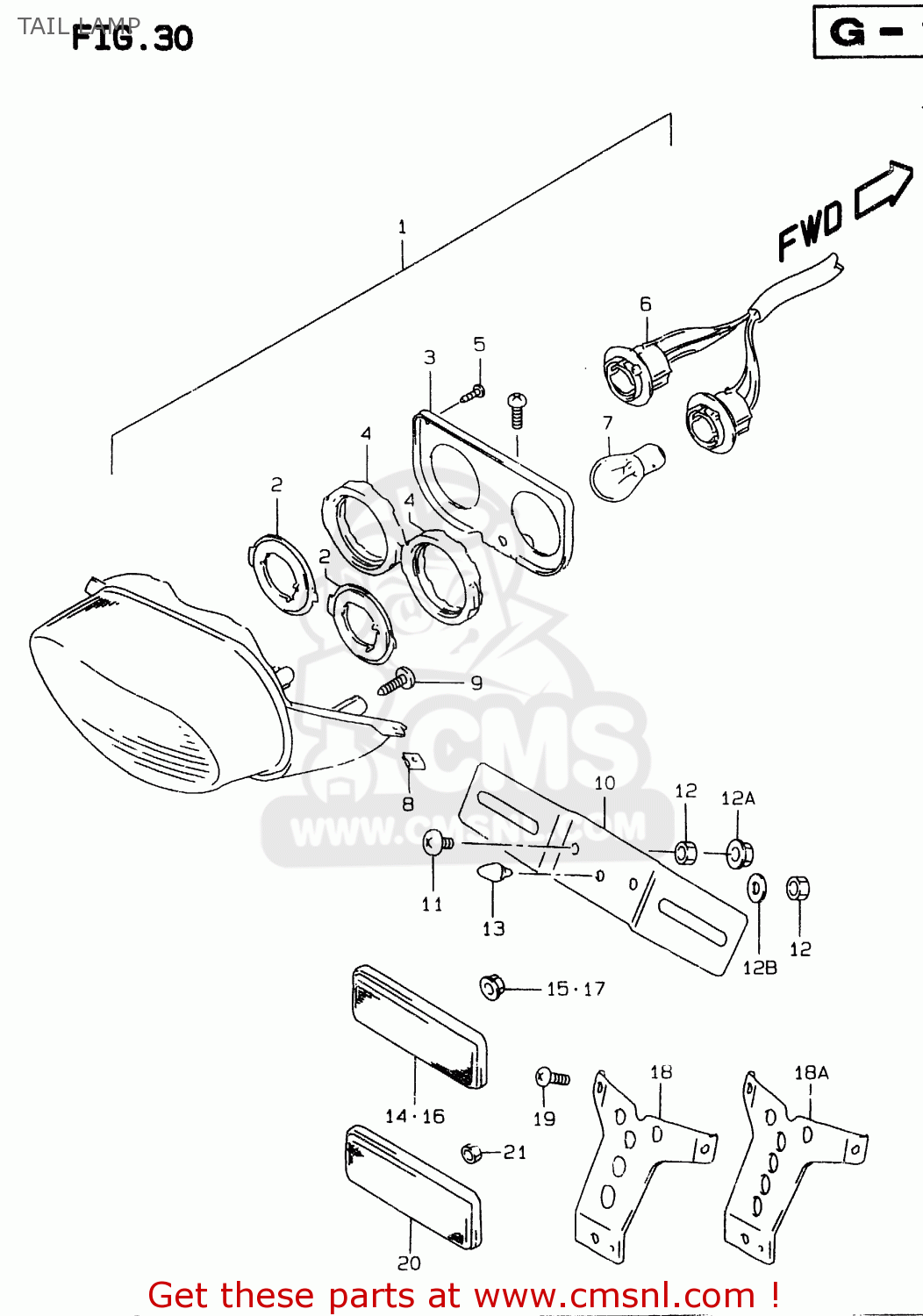

Tail lamp diagram GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

TAIL LAMP GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

TAIL LAMP GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

3571033E00
ref: 1

LAMP ASSY,RR COMBINATION

€ 195.00

2

3571648B21
ref: 2

PLATE NO.1

€ 25.00

3

3573633E00
ref: 3

PLATE NO.2

€ 9.50

4

3576548B21
ref: 4

CUSHION

€ 10.50

5

0321104123
ref: 5

SCREW

€ 1.50

6

3571833E00
ref: 6

SOCKET & CORD

€ 61.00

7

0947112083
ref: 7

BULB(12V21/5W)

€ 6.00

8

0914805020
ref: 8

NUT

€ 2.00

9

0354115163
ref: 9

SCREW

€ 2.00

10

3592744110
ref: 10

PLATE,RR LICENSE

€ 22.50

11

0214206123
ref: 11

SCREW 6X12

€ 2.00

12

0831000063
ref: 12
MODEL T/W

NUT 6MM

€ 2.00

12A

0831610063
ref: 12A
MODEL V

NUT

€ 2.50

12B

0916006077
ref: 12B
MODEL W

WASHER(6.5X20X1.2)

€ 2.00

13

0932106023
ref: 13

CUSHION

€ 2.00

14

3597024D60
ref: 14
E2

REFLECTOR ASSY,RR

€ 19.50

15

0831000053
ref: 15
E2

NUT

€ 2.50

16

3597024D60
ref: 16
E18, E22, E24, E39

REFLECTOR ASSY,RR

€ 19.50

17

0831620053
ref: 17
E18, E22, E24, E39

NUT

€ 2.00

18

3597433E00
ref: 18
MODEL T/V

BRACKET,RR REFLECTOR

€ 12.00

18A

3597448E00
ref: 18A
MODEL W

BRACKET,RR REFLECTOR

€ 8.00

19

0912506092
ref: 19

SCREW(6X12)

€ 3.00

20

3595043431
ref: 20
E39

REFLEX REFLECTOR,FR SIDE

€ 12.00

21

0831000053
ref: 21
E39

NUT

€ 2.50
