SIGNAL GENERATOR (MODEL W)

GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

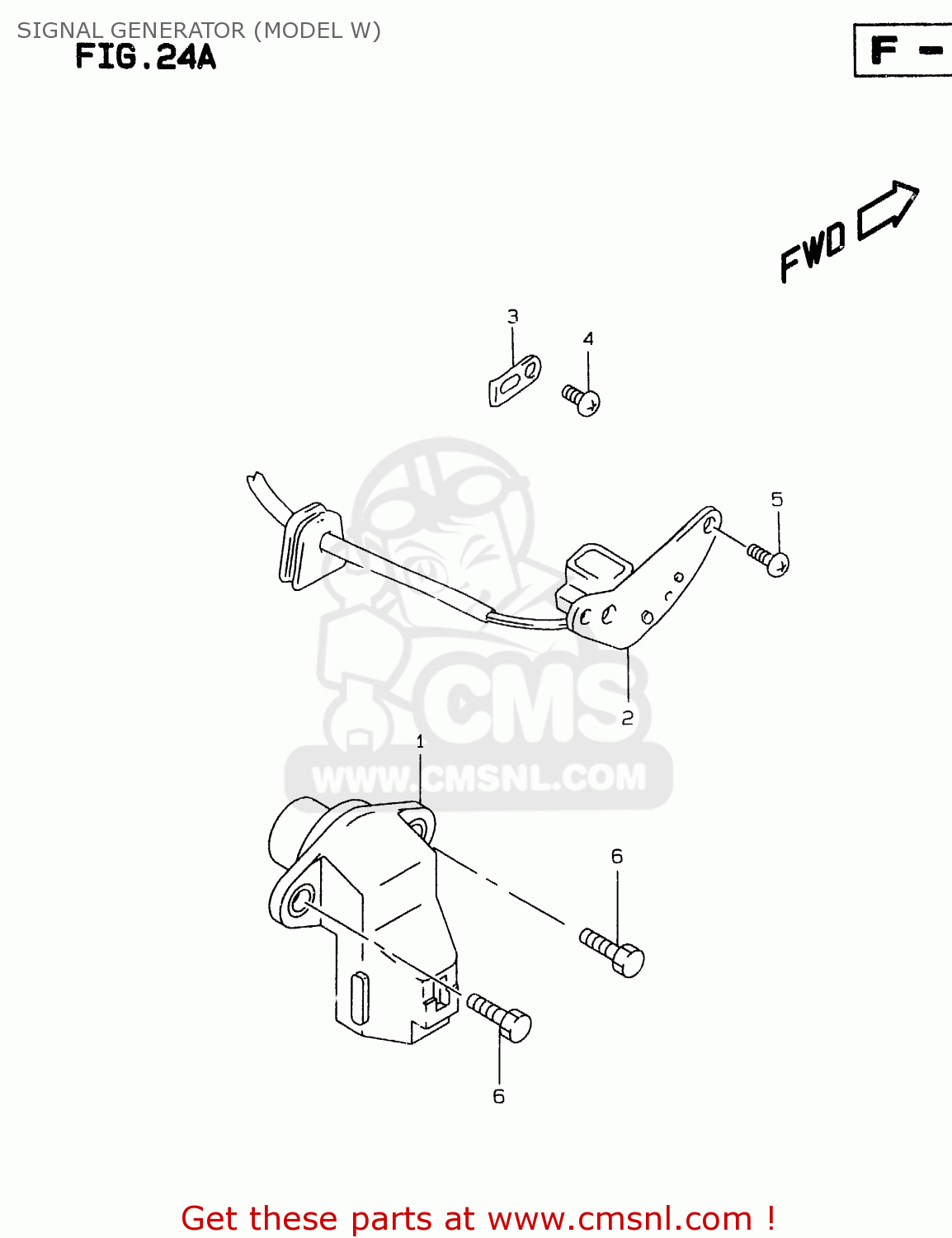

Signal generator (model w) diagram GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

SIGNAL GENERATOR (MODEL W) GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

SIGNAL GENERATOR (MODEL W) GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

3216002F00
ref: 1

SENSOR ASSY,CAM POSITION

€ 127.50

2

3311033E00
ref: 2

STARTER,SIGNAL GENERATOR

€ 222.50

3

3311533E00
ref: 3

CLAMP,SIGNAL GENERATORERATOR

€ 3.00

4

0211205103
ref: 4

SCREW

€ 2.00

5

0211205103
ref: 5

SCREW

€ 2.00

6

0713006163
ref: 6

BOLT,OIL FILLE

€ 3.00
