REAR CUSHION LEVER (MODEL V)

GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

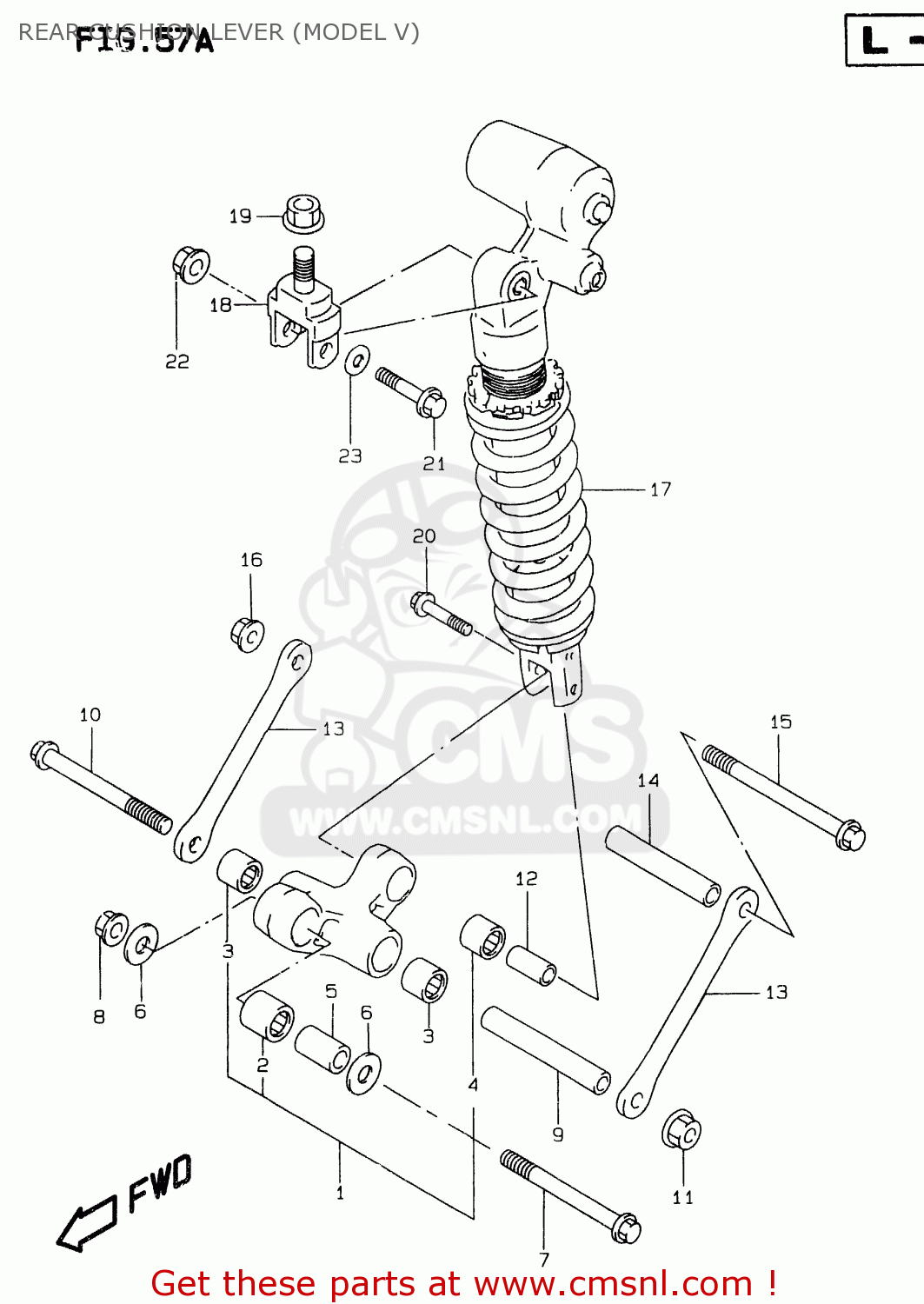

Rear cushion lever (model v) diagram GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

REAR CUSHION LEVER (MODEL V) GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

REAR CUSHION LEVER (MODEL V) GSXR750 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

6260033880
ref: 1

LEVER SET,RR CUSHION

€ 264.00

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

0926317039
ref: 3

BEARING(17X24X20)

€ 18.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

6268412C00
ref: 5

SPACER,RR CUSHION LEVER FR

€ 12.50

6

0821112301
ref: 6

WASHER

€ 2.00

7

6265833F00
ref: 7

BOLT, FRONT

€ 0.00

8

0831931128
ref: 8

NUT 12MM

€ 4.00

9

6262633D00
ref: 9

SPACER,RR CUSHION LEVER CTR

€ 17.50

10

6262133D00
ref: 10

BOLT,RR CUSHION LEVER CTR

€ 10.00

11

0831931128
ref: 11

NUT 12MM

€ 4.00

12

6268440A10
ref: 12

SPACER,RR CUSHION LEVER

€ 11.50

13

6264133E00
ref: 13

ROD,RR CUSHION LEVER

€ 41.50

14

6262633D00
ref: 14

SPACER,RR CUSHION LEVER CTR

€ 17.50

15

6262133D00
ref: 15

BOLT,RR CUSHION LEVER CTR

€ 10.00

16

0831931128
ref: 16

NUT 12MM

€ 4.00

17

6210033E00
ref: 17

ABSORBER ASSY,RR SHOCK

€ 1,181.00

18-1

6299333E10
ref: 18-1
->62993-33E11

BRACKET,REAR SHOCK ABSORBER,UPPER

€ 86.50

18-2

6299333E11
ref: 18-2
F. NO. JS1GR7DA00050

BRACKET,RR SHOCK ABSORBER UP

€ 86.50

19

0915920006
ref: 19

NUT

€ 19.00

20

0910310049
ref: 20

BOLT(10X44)

€ 5.50

21-1

0910310249
ref: 21-1
FOR 62993-33E10

BOLT

€ 8.00

21-2

0910310101
ref: 21-2
FOR 62993-33E11

BOLT(10X54)

€ 3.00

22

0831931107
ref: 22
FOR 62993-33E11

NUT

€ 3.00

23

0916010085
ref: 23
FOR 62993-33E10

WASHER (10X20X2.3)

€ 2.00
