FUEL TANK (MODEL X)
GSXR750 1998 (W) USA (E03)

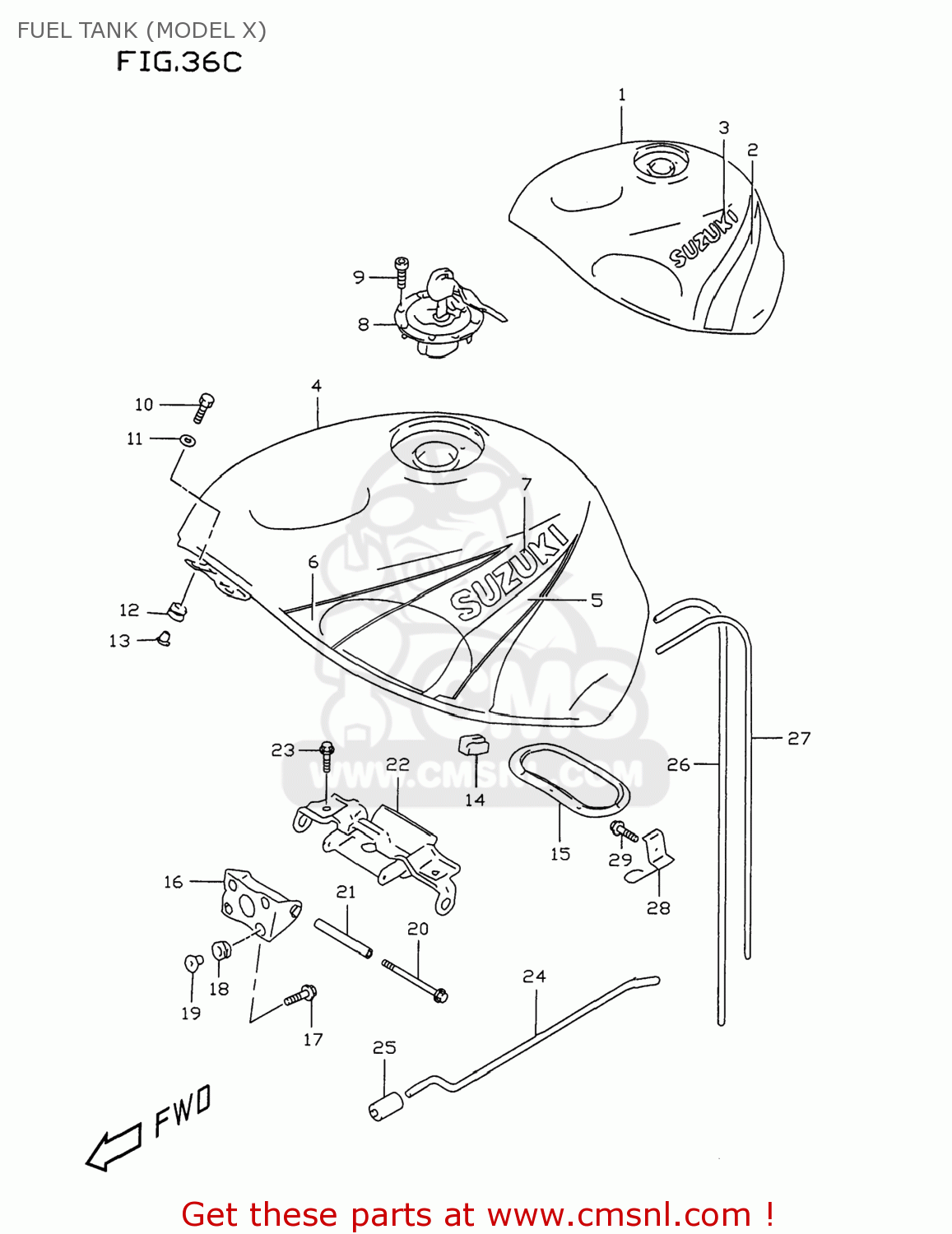

Fuel tank (model x) diagram GSXR750 1998 (W) USA (E03)
FUEL TANK (MODEL X) GSXR750 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410033EH0L99
ref: 1-1
TANK ASSY,FUEL
€ 498.50
1-2
4410033EJ0L99
ref: 1-2
TANK ASSY,FUEL
€ 0.00
2
6811033E701LE
ref: 2
TAPE SET,FUEL TANK STRIPE
€ 44.00
3
6811112C000JW
ref: 3
68111-12C30-0JW
EMBLEM,FUEL TANK
€ 21.00
4-1
4410033EK0M4L
ref: 4-1
TANK ASSY,FUEL
€ 672.00
4-2
4410033EL0M4L
ref: 4-2
TANK ASSEMBLY,FUEL
€ 0.00
5
6811033E80M5D
ref: 5
TAPE SET,FUEL TANK
€ 26.50
6
6811033E90M4L
ref: 6
TAPE SET,FUEL TANK UPR
€ 39.00
7
6811112C00Y2D
ref: 7
68111-12C30-Y2D
EMBLEM,FUEL TANK
€ 18.00
8-1
4420033820
ref: 8-1
CAP SET,FUEL TANK
€ 217.50
8-2
4420033830
ref: 8-2
CAP SET,FUEL TANK
€ 0.00
9
0910605017
ref: 9
BOLT(5X20)
€ 3.00
10
0913906029
ref: 10
SCREW(6X25)
€ 5.00
11
0916006084
ref: 11
WASHER(6.5X18X1.6)
€ 2.00
12
0932009009
ref: 12
CUSHION
€ 5.00
13
0916906062
ref: 13
WASHER
€ 3.00
14
4454133E00
ref: 14
CUSHION,FUEL TANK SIDE
€ 20.50
15
4459002820
ref: 15
PACKING SET,FUEL PUMP (NAS)
€ 38.00
15A
1521102F00
ref: 15A
09103-05017
BOLT,FUEL PUMP
€ 4.00
16
4453033E00
ref: 16
44530-33E01
BRACKET COMP,FUEL TANK
€ 23.00
17
0911606152
ref: 17
BOLT(6X20)
€ 2.00
18
0932008001
ref: 18
CUSHION
€ 3.50
19
0916906062
ref: 19
WASHER
€ 3.00
20
0155008953
ref: 20
01550-0895A
BOLT
€ 3.50
21
4456133E10
ref: 21
SPACER,FUEL TANK RR
€ 19.00
22
4455033E00
ref: 22
BRACKET,FUEL TANK NO.2
€ 36.50
23
0155008163
ref: 23
01550-0816A
BOLT
€ 3.00
24
4457433E01
ref: 24
STAY,FUEL TANK
€ 13.50
25
0925105006
ref: 25
CAP,OD:11
€ 5.50
26
0935250823600
ref: 26
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
27
0935270103600
ref: 27
HOSE(7X10.2X600)
€ 8.00
28
4448033E00
ref: 28
44480-33E0V
GUIDE COMP,DRAIN HOSE
€ 6.00
29
0155006123
ref: 29
01550-0612A
BOLT
€ 2.50
