HANDLE SWITCH

GSXR750 1998 (W) USA (E03)

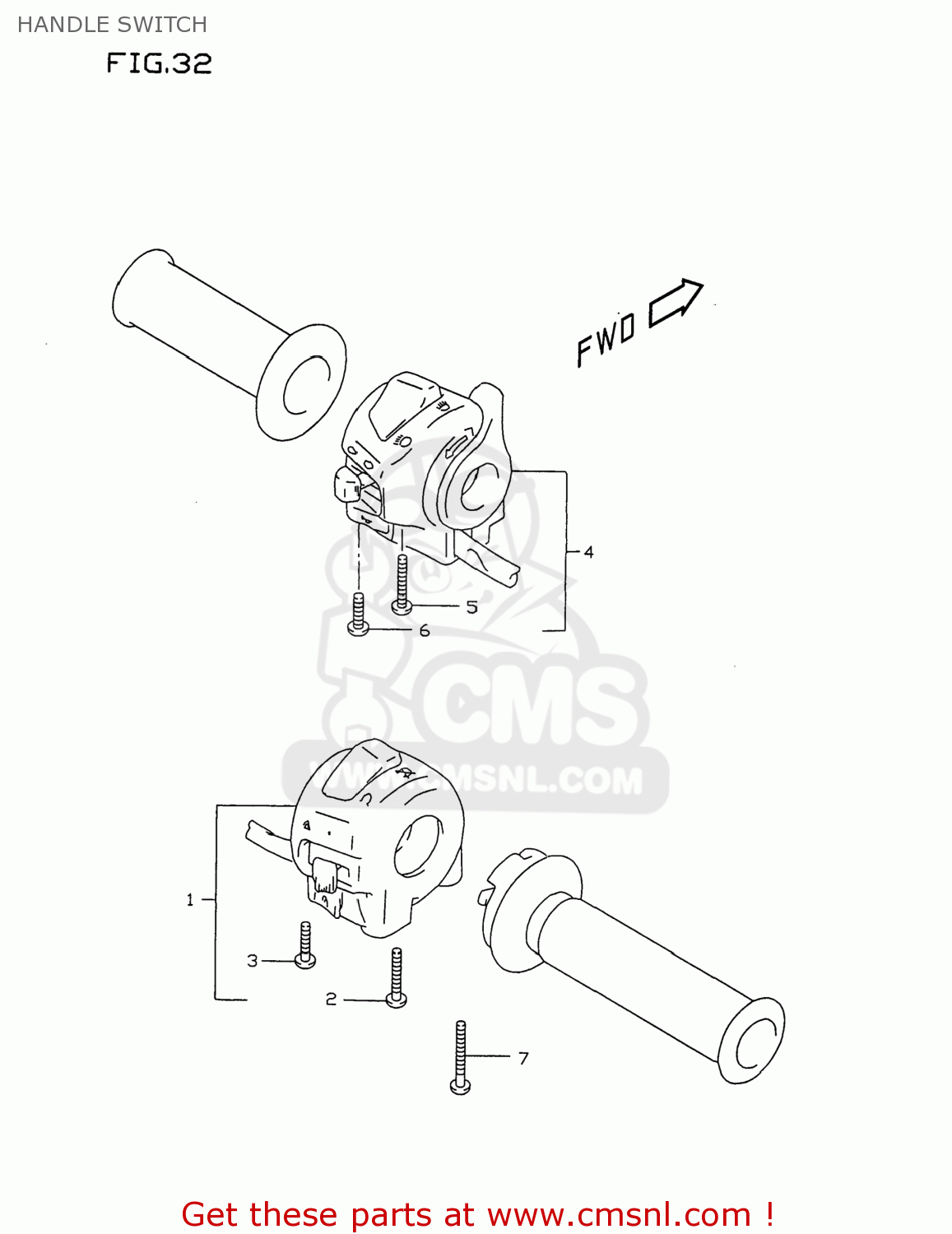

Handle switch diagram GSXR750 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3720027E30
ref: 1-1
37200-27E31

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 165.00

1-2

3720027E31
ref: 1-2

SWITCH ASSY,HANDLE,R

€ 165.00

1-3

3720033E31
ref: 1-3

SWITCH ASSY,HANDLE,R

€ 135.00

0211205505
ref: 2
02112-0550B

SCREW

€ 2.00

0211205305
ref: 3
02112-0530B

SCREW

€ 1.50

4-1

3740033E30
ref: 4-1
37400-33E31

SWITCH ASSEMBLY,HANDLE,LEFT

€ 153.50

4-1

3740033E30
ref: 4-1
37400-33E31

SWITCH ASSEMBLY,HANDLE,LEFT

€ 153.50

4-1

3740033E30
ref: 4-1
37400-33E31

SWITCH ASSEMBLY,HANDLE,LEFT

€ 153.50

4-2

3740033E31
ref: 4-2

SWITCH ASSY,HANDLE,L

€ 153.50

0211205455
ref: 5
02112-0545B

SCREW, 5X45

€ 4.00

0211205255
ref: 6
09125-05066

SCREW

€ 2.00

0211205103
ref: 7
02112-0510A

SCREW

€ 2.00
