REAR WHEEL
GSXR750 1998 (W) USA (E03)

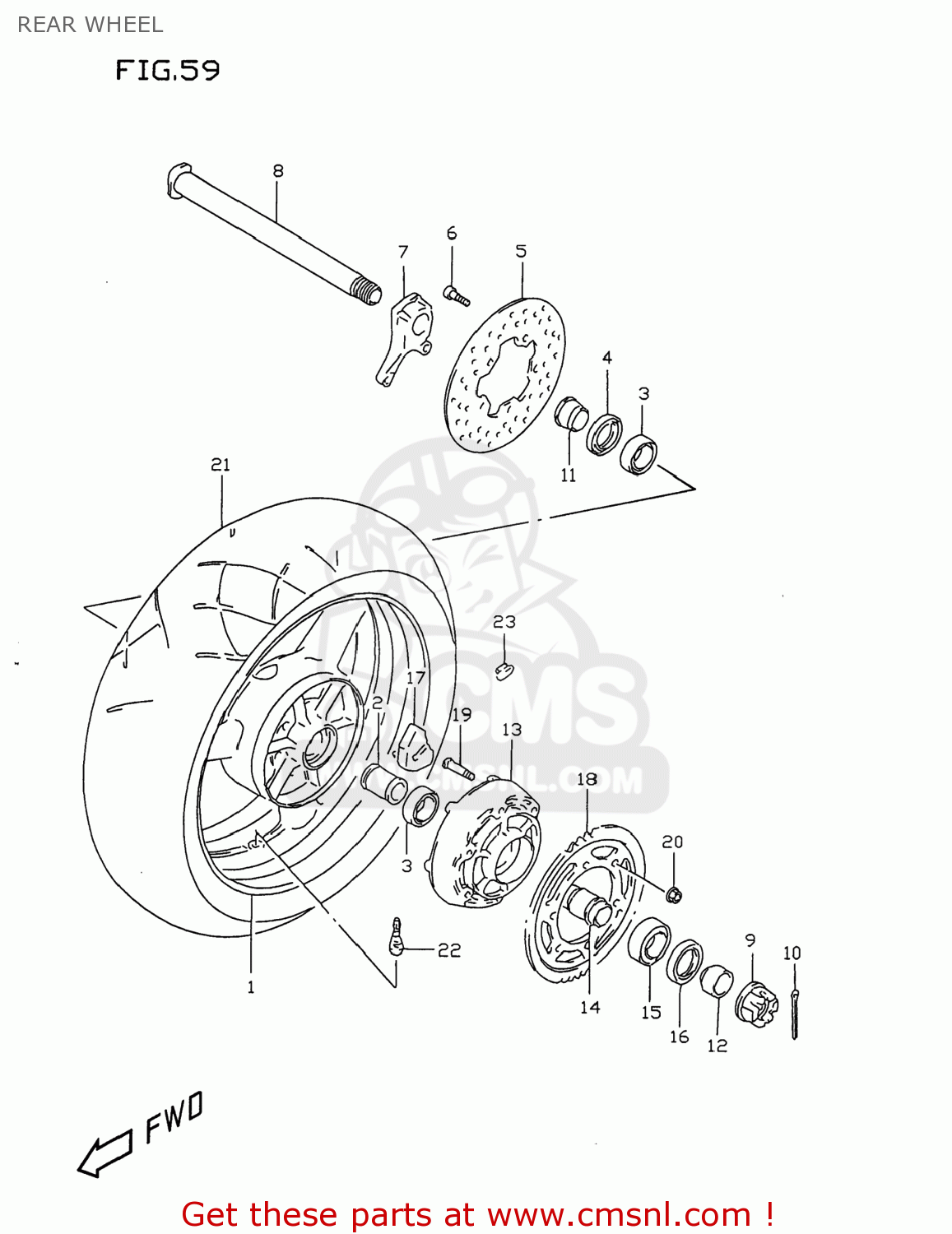

Rear wheel diagram GSXR750 1998 (W) USA (E03)
REAR WHEEL GSXR750 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411133E0012R
ref: 1-1
64111-33E11-12R
WHEEL,REAR (17XMT6.00)(S
€ 1,010.50
1-1
6411133E0012R
ref: 1-1
64111-33E11-12R
WHEEL,REAR (17XMT6.00)(S
€ 1,010.50
1-1
6411133E0012R
ref: 1-1
64111-33E11-12R
WHEEL,REAR (17XMT6.00)(S
€ 1,010.50
1-2
6411133E0028W
ref: 1-2
64111-33E11-28W
WHEEL,REAR (17XMT6.00)(W
€ 617.00
1-2
6411133E0028W
ref: 1-2
64111-33E11-28W
WHEEL,REAR (17XMT6.00)(W
€ 617.00
2-1
6473033E00
ref: 2-1
64731-33E10
SPACER COMP,REAR HUB B
€ 62.50
2-2
6473033E00
ref: 2-2
64731-33E10
SPACER COMP,REAR HUB B
€ 62.50
2-2
6473033E00
ref: 2-2
64731-33E10
SPACER COMP,REAR HUB B
€ 62.50
2-3
6473133E10
ref: 2-3
SPACER,RR HUB BEARING
€ 62.50
2-4
6473133E10
ref: 2-4
SPACER,RR HUB BEARING
€ 62.50
3
0926232008
ref: 3
BEARING(32X58X13)
€ 31.50
4
0928538001
ref: 4
SEAL,OIL(38X58X7)
€ 7.50
5
6921133E00
ref: 5
DISC,RR BRAKE
€ 160.00
6
0910608125
ref: 6
09106-08148
BOLT 8X33
€ 6.00
7
6972133E00
ref: 7
BRACKET,RR CALIPER
€ 82.00
8-1
6471133E10
ref: 8-1
AXLE,RR
€ 129.00
8-2
6471133E30
ref: 8-2
AXLE,RR
€ 60.50
9
0914125001
ref: 9
NUT
€ 25.00
10
0411140408
ref: 10
04111-4040A
PIN, COTTER
€ 2.00
11
6474133E00
ref: 11
SPACER,RR AXLE,R
€ 18.50
12
6475133E00
ref: 12
SPACER,RR AXLE,L
€ 30.00
13-1
6461133E00
ref: 13-1
64611-33E02
DRUM,REAR SPROCKET MOUNT
€ 189.00
13-2
6461033E00
ref: 13-2
64611-33E02
DRUM,REAR SPROCKET MOUNT
€ 189.00
13-3
6461133E02
ref: 13-3
DRUM,RR SPROCKET
€ 189.00
14
6473333E00
ref: 14
RETAINER,RR SPROCKET DRUM
€ 37.50
15
0926232007
ref: 15
09262-32022
BEARING
€ 49.00
16
0928539001
ref: 16
SEAL,OIL(39X65X7)
€ 9.00
17
6465117E00
ref: 17
ABSORBER,RR HUB SHOCK
€ 12.50
18-1
6451133E00
ref: 18-1
SPROCKET,RR(NT:43)
€ 93.00
18-2
6451133E10
ref: 18-2
SPROCKET,RR(NT:44-525)
€ 93.50
19
0911910059
ref: 19
BOLT
€ 3.50
20
0831931107
ref: 20
NUT
€ 3.00
21-1
6511033E10
ref: 21-1
TIRE,REAR 190/50 ZR17
€ 0.00
21-1
6511033E10
ref: 21-1
TIRE,REAR 190/50 ZR17
€ 0.00
21-1
6511033E10
ref: 21-1
TIRE,REAR 190/50 ZR17
€ 0.00
21-2
6511033E50
ref: 21-2
TIRE,REAR 190/50 ZR17
€ 0.00
21-2
6511033E50
ref: 21-2
TIRE,REAR 190/50 ZR17
€ 0.00
21-2
6511033E50
ref: 21-2
TIRE,REAR 190/50 ZR17
€ 0.00
22-1
4313024A11
ref: 22-1
43130-24A00
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
22-2
4313024A00
ref: 22-2
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
23-1
5541100A00
ref: 23-1
BALANCER,WHEEL (10G)
€ 6.50
23-2
5541200A01
ref: 23-2
55412-17G00
BALANCER,WHEEL (20G)
€ 7.00
