WIRING HARNESS (MODEL T/V)
GSXR750 1998 (W) USA (E03)

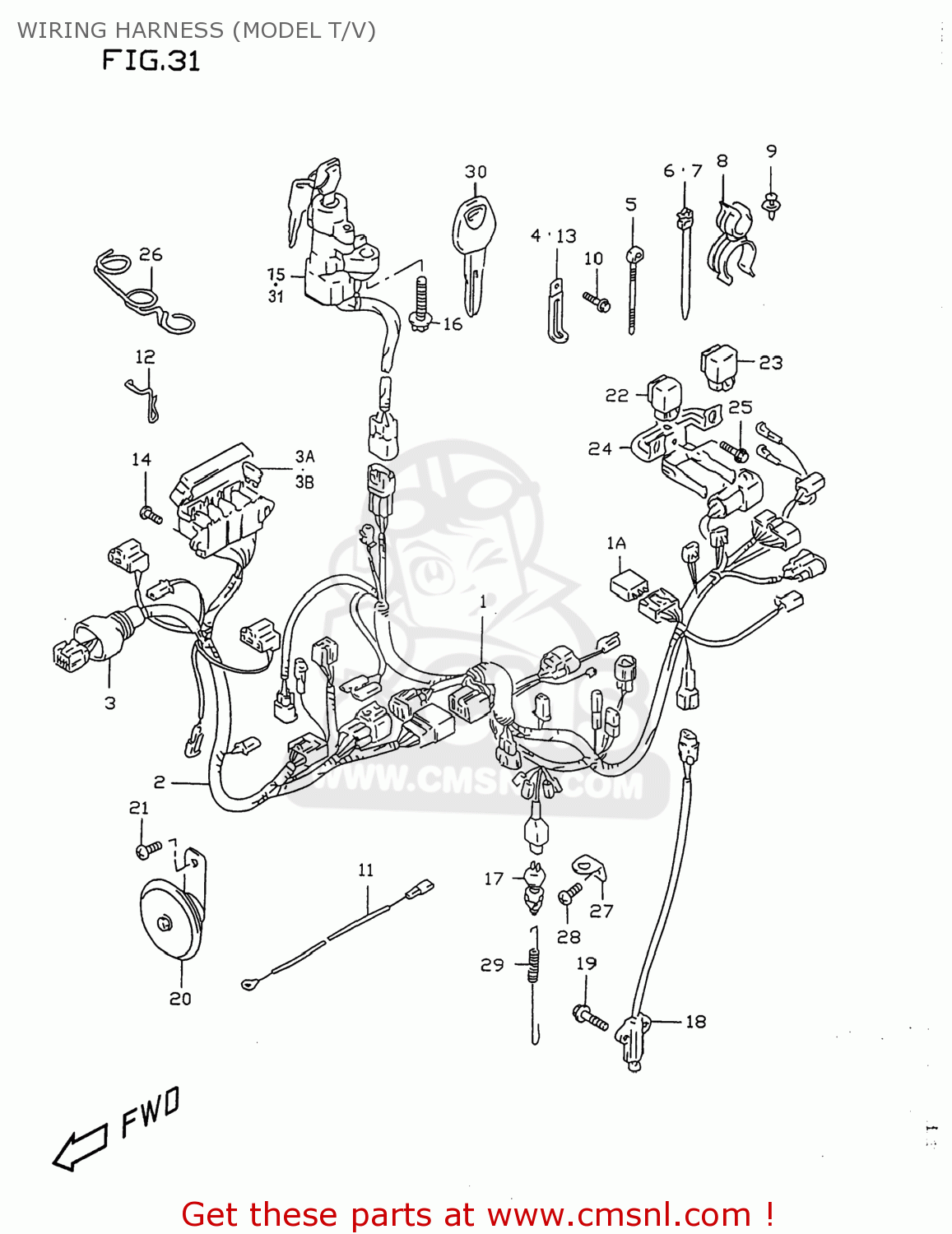

Wiring harness (model t/v) diagram GSXR750 1998 (W) USA (E03)
WIRING HARNESS (MODEL T/V) GSXR750 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661033E00
ref: 1
HARNESS,WIRING NO.1
€ 492.50
1A
3661138A00
ref: 1A
DIODE(STANLEY DE8804)
€ 13.00
2
3662033E10
ref: 2
HARNESS,WIRING NO.2
€ 274.00
3
3661833E00
ref: 3
COVER,SPEEDOMETER COUPLER
€ 5.50
3A
0948110101
ref: 3A
FUSE(10A)
€ 2.50
3B
0948115101
ref: 3B
FUSE(15A)
€ 1.50
4-1
0940406429
ref: 4-1
CLAMP(L:45)
€ 2.50
4-2
0940406431
ref: 4-2
09404-06432
CLAMP(L:65)
€ 2.50
5-1
0940710403
ref: 5-1
CLAMP(L:95)
€ 2.50
5-2
0940714403
ref: 5-2
CLAMP(L:125)
€ 2.50
5-3
0940725401
ref: 5-3
CLAMP(L:235)
€ 4.00
6
0940714408
ref: 6
09407-17402
CLAMP(L:120)
€ 5.00
7
0940718402
ref: 7
CLAMP(L:165)
€ 2.50
8
0940800055
ref: 8
CLAMP
€ 3.00
9
09409073055PK
ref: 9
CLIP(BLACK)
€ 1.50
10
0155006103
ref: 10
01550-0610A
BOLT
€ 2.50
11
3685117E10
ref: 11
WIRE,OIL PRESSURE SWITCH LEAD
€ 13.50
12
3674533E00
ref: 12
STOPPER,FUSE BOX
€ 7.00
13
0940406433
ref: 13
CLAMP(L:80)
€ 3.00
14
0214206203
ref: 14
02142-0620A
SCREW
€ 2.00
15-1
3710033E00
ref: 15-1
37100-33E01
LOCK ASSEMBLY,STEERING
€ 170.00
15-2
3710033E01
ref: 15-2
LOCK ASSY,STEERING
€ 170.00
16
0913908016
ref: 16
BOLT(8X20)
€ 3.50
17
3774024A00
ref: 17
SWITCH ASSY,STOP LAMP
€ 20.50
18
3784026X50
ref: 18
SWITCH ASSY,SIDE STAND WARNING
€ 100.50
19
0910306130
ref: 19
09103-06286
BOLT 6X20
€ 2.50
20
3850020E10
ref: 20
HORN ASSY
€ 75.50
21
0912508003
ref: 21
SCREW(8X14)
€ 1.50
22
3874024X50
ref: 22
RELAY ASSY
€ 37.50
23
3874024X50
ref: 23
RELAY ASSY
€ 37.50
24
3893033E00
ref: 24
BRACKET,SIDE STAND RELAY
€ 8.00
25
0155006123
ref: 25
01550-0612A
BOLT
€ 2.50
26
3661933E00
ref: 26
GUIDE,WIRING HARNESS
€ 10.50
27
4325121E00
ref: 27
BRACKET,STOP LAMP SWITCH
€ 3.50
28
0214206083
ref: 28
02142-0608A
SCREW
€ 1.50
29
0944306005
ref: 29
SPRING
€ 6.00
30
3714633E00
ref: 30
KEY,BLANK
