WIRING HARNESS (MODEL W/X)
GSXR750 1998 (W) USA (E03)

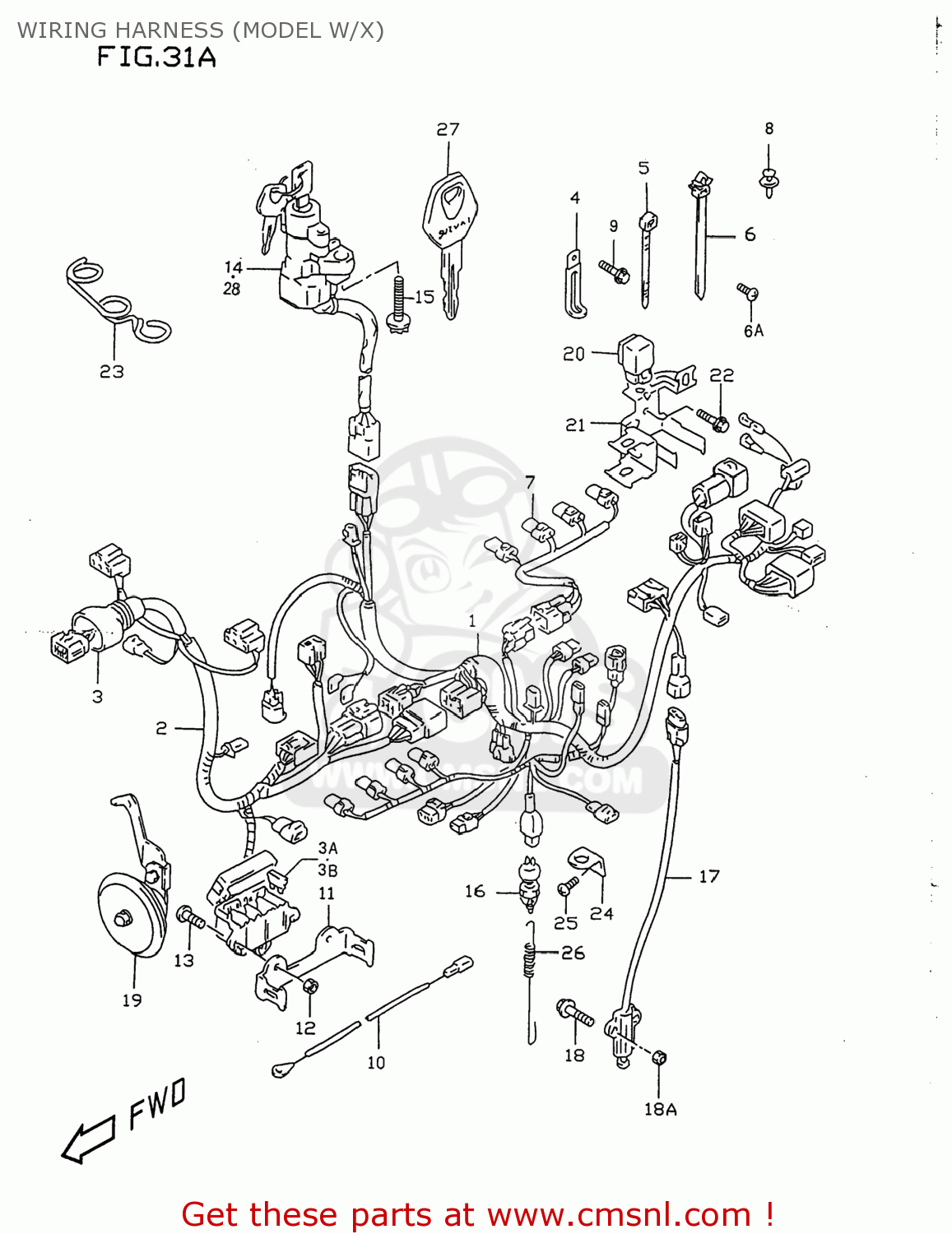

Wiring harness (model w/x) diagram GSXR750 1998 (W) USA (E03)
WIRING HARNESS (MODEL W/X) GSXR750 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661033EA0
ref: 1
HARNESS,WIRING NO.1
€ 698.50
2
3662033EA0
ref: 2
HARNESS,WIRING NO.2
€ 254.00
3
3661833E00
ref: 3
COVER,SPEEDOMETER COUPLER
€ 5.50
3A
0948110501
ref: 3A
FUSE(10A)
€ 3.00
3B
0948115501
ref: 3B
FUSE(15A)
€ 1.00
4-1
0940406429
ref: 4-1
CLAMP(L:45)
€ 2.50
4-2
0940406432
ref: 4-2
CLAMP(L:65)
€ 2.50
5-1
0940714403
ref: 5-1
CLAMP(L:125)
€ 2.50
5-2
0940718402
ref: 5-2
CLAMP(L:165)
€ 2.50
5-3
0940725401
ref: 5-3
CLAMP(L:235)
€ 4.00
6
0940717401
ref: 6
09407-17402
CLAMP
€ 5.00
6A
0214206123
ref: 6A
02142-0612A
SCREW 6X12
€ 2.00
7
3685633EA0
ref: 7
WIRE,INJECTOR LEAD
€ 45.00
8
09409073055PK
ref: 8
CLIP(BLACK)
€ 1.50
9
0155006103
ref: 9
01550-0610A
BOLT
€ 2.50
10
3685117E10
ref: 10
WIRE,OIL PRESSURE SWITCH LEAD
€ 13.50
11
3674433E00
ref: 11
BRACKET,FUSE BOX
€ 9.50
12
9461927A00
ref: 12
09159-05048
NUT,COWLING SCREEN
€ 6.50
13
0214205123
ref: 13
02142-0512A
SCREW 5X12
€ 1.50
14
3710033E20
ref: 14
LOCK ASSY,STEERING
€ 223.50
15
0913908016
ref: 15
BOLT(8X20)
€ 3.50
16
3774024A00
ref: 16
SWITCH ASSY,STOP LAMP
€ 20.50
17
3784026X50
ref: 17
SWITCH ASSY,SIDE STAND WARNING
€ 100.50
18
0155006203
ref: 18
01550-0620A
BOLT
€ 2.50
18A
0831921063
ref: 18A
08319-2106B
NUT
€ 2.50
19
3850033EA0
ref: 19
HORN ASSY
€ 57.00
20
3874024X50
ref: 20
RELAY ASSY
€ 37.50
21
3893033E10
ref: 21
BRACKET COMP,FUEL PUMP RLY
€ 6.50
22
0155006123
ref: 22
01550-0612A
BOLT
€ 2.50
23
3661933E00
ref: 23
GUIDE,WIRING HARNESS
€ 10.50
24
4325121E00
ref: 24
BRACKET,STOP LAMP SWITCH
€ 3.50
25
0214206083
ref: 25
02142-0608A
SCREW
€ 1.50
26
0944306005
ref: 26
SPRING
€ 6.00
27
3714633E00
ref: 27
KEY,BLANK
€ 13.00
