GEAR SHIFTING
GSXR750 1998 (W) USA (E03)

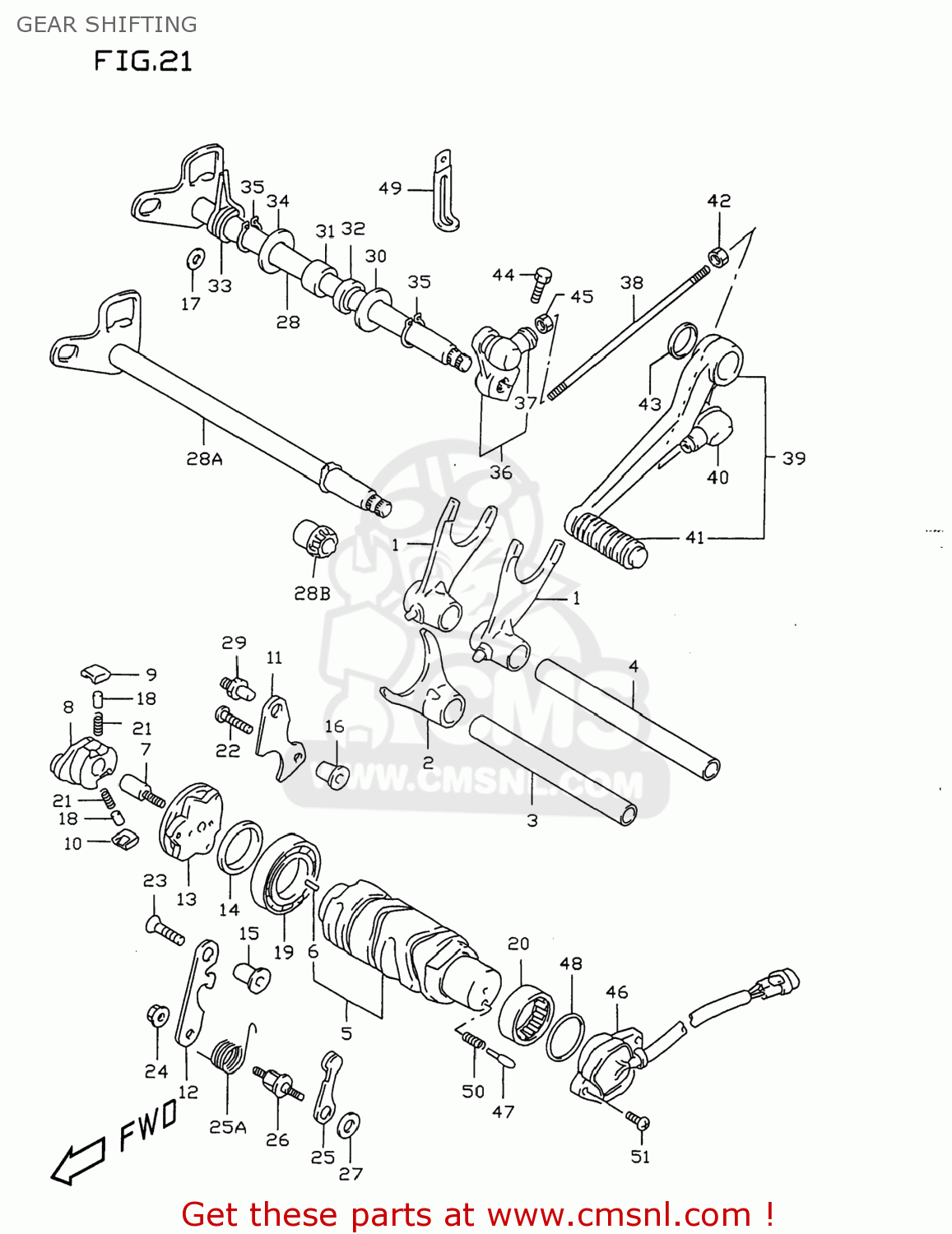

Gear shifting diagram GSXR750 1998 (W) USA (E03)
GEAR SHIFTING GSXR750 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2521117E00
ref: 1-1
25211-17E01
FORK,GEAR SHIFT NO.1
€ 64.50
1-2
2521117E01
ref: 1-2
FORK,GEAR SHIFT
€ 64.50
2-1
2523117E00
ref: 2-1
25231-35F00
FORK,GEAR SHIFT NO.3
€ 108.50
2-2
2523117E02
ref: 2-2
25231-35F00
FORK,GEAR SHIFT NO.3
€ 108.50
3
2541126D01
ref: 3
SHAFT,GEAR SHIFT FORK
€ 16.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
5-1
2531017E01
ref: 5-1
25310-17E02
CAM,GEAR SHIFT
€ 147.00
5-2
2531017E02
ref: 5-2
CAM,GEAR SHIFT
€ 147.00
6
0422104089
ref: 6
PIN
€ 1.50
7
2531212C00
ref: 7
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
8-1
2532233C00
ref: 8-1
25322-33C01
SHIFTER,GEAR SHIFT CAM
€ 49.50
8-2
2532233C01
ref: 8-2
SHIFTER,GEAR SHIFT CAM
€ 49.50
9
2532334201
ref: 9
PAWL,GEAR SHIFT NO.1
€ 6.00
10
2532434201
ref: 10
PAWL,GEAR SHIFT NO.2
€ 6.00
11-1
2533126D00
ref: 11-1
LIFTER,GEAR SHIFT PAWL
€ 6.00
11-2
2533126D10
ref: 11-2
25331-26D00
LIFTER,GEAR SHIFT PAWL
€ 6.00
11-3
2533126D00
ref: 11-3
LIFTER,GEAR SHIFT PAWL
€ 6.00
12
2534133E00
ref: 12
GUIDE,GEAR SHIFT CAM
€ 6.00
13
2538033E00
ref: 13
PLATE,GEAR SHIFT CAM
€ 13.00
14
0916025059
ref: 14
WASHER(25X32X3)
€ 5.00
15
0918006202
ref: 15
SPACER(6.1X10X16)
€ 4.00
16
0918006202
ref: 16
SPACER(6.1X10X16)
€ 4.00
17
0918007014
ref: 17
SPACER(7X10X5)
€ 4.00
18
0926105003
ref: 18
PIN(5X8)
€ 1.50
19
0926225006
ref: 19
BEARING(25X47X8)
€ 24.00
20
0926325018
ref: 20
BEARING(25X32X12)
€ 17.50
21
0944004003
ref: 21
SPRING
€ 1.50
22
0211206303
ref: 22
02112-0630A
SCREW 6X30
€ 2.50
23
0212206303
ref: 23
02122-0630B
SCREW
€ 2.00
24
0831610063
ref: 24
08316-1006B
NUT
€ 2.50
25
2535026D01
ref: 25
STOPPER,GEAR SHIFT CAM
€ 8.50
25A
2535533E00
ref: 25A
SPRING,SHIFT CAM STOPPER
€ 4.50
26
2535612C00
ref: 26
SUPPORT,CAM STOPPER ARM
€ 9.50
27
0821106141
ref: 27
WASHER
€ 2.50
28
2551017E20
ref: 28
25510-33E10
SHAFT COMP,GEAR SHIFTING
€ 62.50
28A
2551033E10
ref: 28A
SHAFT,GEAR SHIFT
€ 62.50
28B
2551633E00
ref: 28B
BUSH,GEAR SHIFT SHAFT
€ 6.50
29
2567101000
ref: 29
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
30
0916014016
ref: 30
WASHER(14X29X0.8)
€ 1.50
31
0926314027
ref: 31
BEARING(14X20X12)
€ 11.00
32
0928314006
ref: 32
SEAL,OIL(14X22X6)
€ 6.50
33
0944420003
ref: 33
SPRING
€ 5.50
34
0821114261
ref: 34
WASHER
€ 2.00
35
0833131146
ref: 35
08331-3114A
CIRCLIP
€ 2.00
36
2552029B00
ref: 36
ARM,GEAR SHIFT LINK
€ 58.00
37
2552647000
ref: 37
COVER,DUST
€ 3.50
38
2552507A10
ref: 38
ROD,GEAR SHIFT LINK(L:165)
€ 12.00
39
2560033E00
ref: 39
LEVER ASSY,GEAR SHIFT
€ 106.00
40
2552647000
ref: 40
COVER,DUST
€ 3.50
41
2565220C00
ref: 41
RUBBER,GEAR SHIFT PEDAL
€ 8.00
42
0914006011
ref: 42
NUT
€ 1.50
43
0916018022
ref: 43
WASHER(18X24X1)
€ 3.00
44
0150006203
ref: 44
01500-0620A
BOLT
€ 2.00
45
0831000067
ref: 45
NUT
€ 2.50
46-1
3773033E00
ref: 46-1
BASE ASSEMBLY,GEAR SHIFT TERMINAL
€ 100.50
46-2
3773033E10
ref: 46-2
37730-33E11
BASE ASSEMBLY,GEAR SHIFT TERMINAL
€ 106.50
47
0920905011
ref: 47
PIN(5X15.5)
€ 2.00
48
0928026007
ref: 48
O RING(D:2.4,ID:25.7)
€ 6.50
49
0940406429
ref: 49
CLAMP(L:45)
€ 2.50
50
0944004010
ref: 50
SPRING
€ 1.50
51
0211205163
ref: 51
02112-0516A
SCREW
€ 2.00
