THROTTLE BODY FITTINGS (MODEL W/X)
GSXR750 1998 (W) USA (E03)

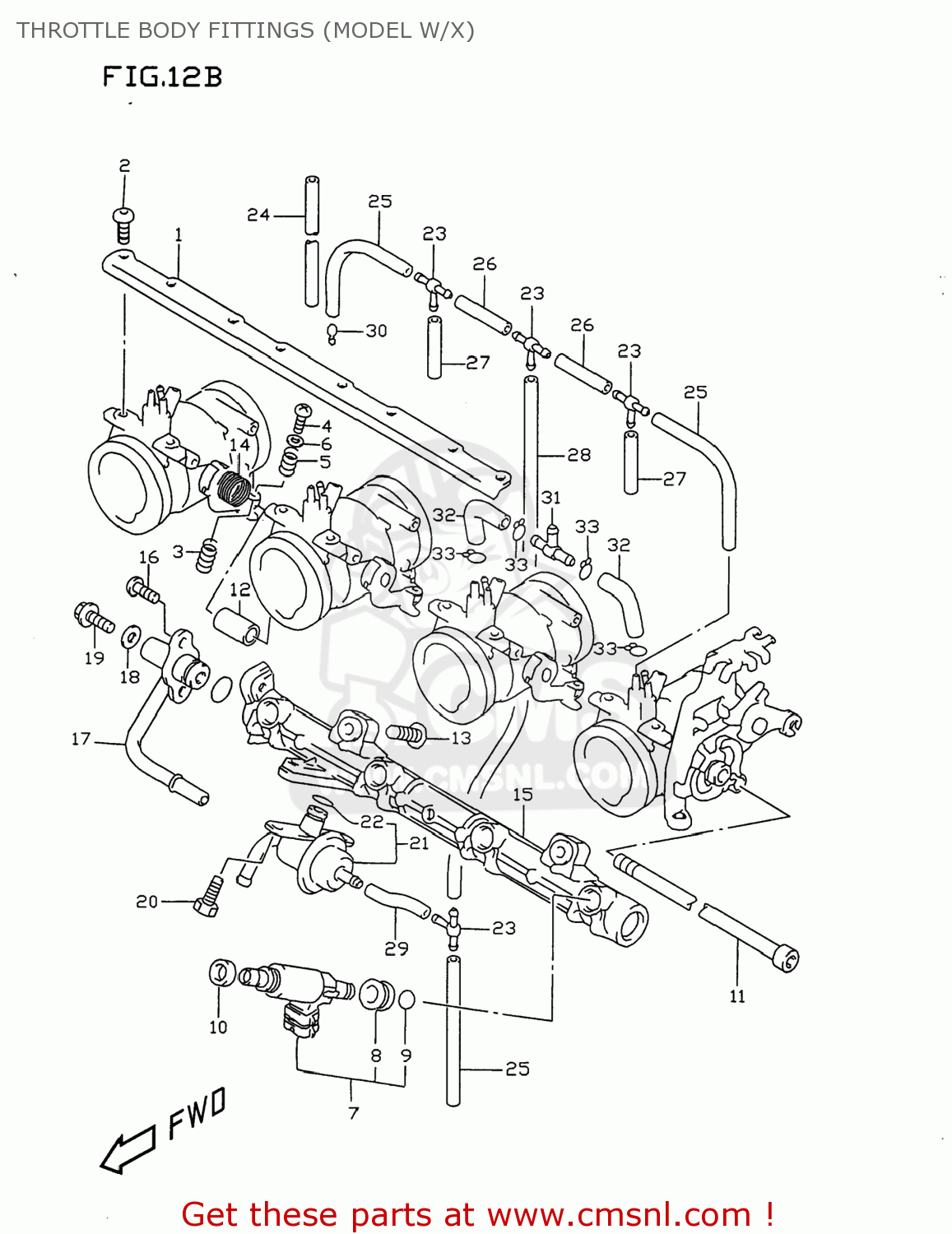

Throttle body fittings (model w/x) diagram GSXR750 1998 (W) USA (E03)
THROTTLE BODY FITTINGS (MODEL W/X) GSXR750 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1362533E00
ref: 1
PLATE
€ 31.50
2
1360233E00
ref: 2
02112-05127
BOLT
€ 1.50
3
1326896110
ref: 3
13268-96111
SPRING,THROTTLE SCREW
€ 4.50
4
1337284301
ref: 4
SCREW
€ 5.00
5
1327193311
ref: 5
SPRING
€ 4.50
6
1342738300
ref: 6
WASHER
€ 1.50
7
1571033E00
ref: 7
INJECTOR ASSEMBLY,FUEL
€ 215.00
8
1572009300
ref: 8
GROMMET
€ 4.50
9
1571702F00
ref: 9
O RING
€ 4.00
10
1367233E00
ref: 10
CUSHION,FUEL INJECTOR
€ 12.50
11
1361333E00
ref: 11
BOLT
€ 12.00
12
1361533E00
ref: 12
RING
€ 14.00
13
1360233E10
ref: 13
BOLT
€ 5.00
14
1357306C10
ref: 14
SPRING
€ 7.00
15
1573133E00
ref: 15
DELIVERY PIPE
€ 140.50
16
0211205127
ref: 16
SCREW
€ 2.50
17
1573233E00
ref: 17
NIPPLE
€ 96.00
18
0916806023
ref: 18
GASKET(5.8X13X1.2) (NAS)
€ 2.00
19
1756850F00
ref: 19
UNION BOLT,AIR VENT
€ 3.50
20
1361202F00
ref: 20
BOLT
€ 3.50
21-1
1561033E00
ref: 21-1
15610-33E10
REGULATOR COMP,FUEL
€ 185.50
21-2
1561033E10
ref: 21-2
REGULATOR,FUEL
€ 185.50
22
1571009300
ref: 22
O RING
€ 4.00
23
0936704007
ref: 23
3 WAY
€ 3.50
24
0935535755600
ref: 24
HOSE(3.5X7.5X600)
€ 10.00
25
0935535755600
ref: 25
HOSE(3.5X7.5X600)
€ 10.00
26
0935535755600
ref: 26
HOSE(3.5X7.5X600)
€ 10.00
27
0935535755600
ref: 27
HOSE(3.5X7.5X600)
€ 10.00
28
0935535755600
ref: 28
HOSE(3.5X7.5X600)
€ 10.00
29
0935535755600
ref: 29
HOSE(3.5X7.5X600)
€ 10.00
30
0949320015
ref: 30
JET
€ 12.00
31
1368548B00
ref: 31
NIPPLE
€ 9.00
32
0935250901600
ref: 32
HOSE(5X9X600)
€ 6.50
33
0940110410
ref: 33
09401-10401
CLIP
€ 1.50
