SPEEDOMETER (MODEL W/X)
GSXR750 1998 (W) USA (E03)

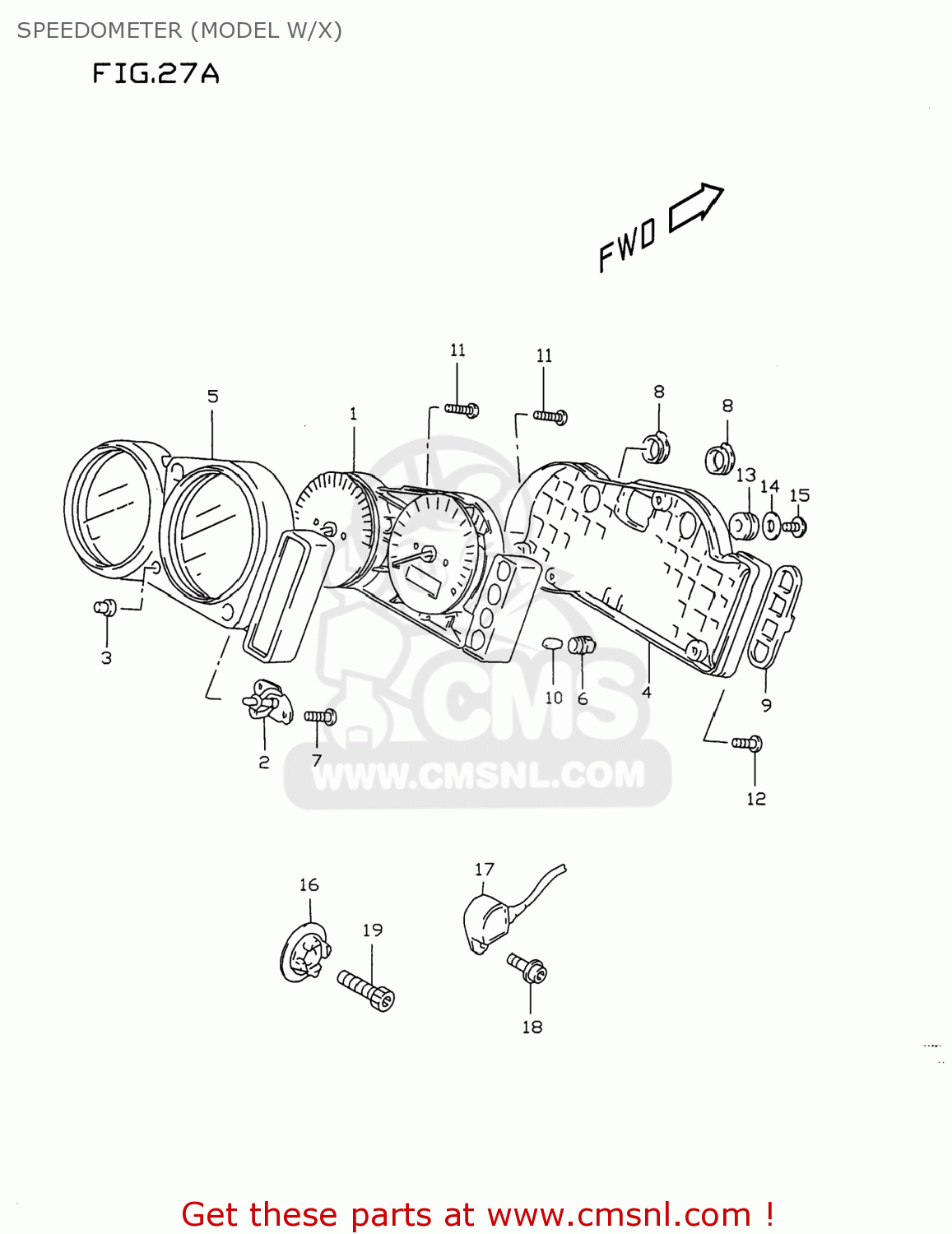

Speedometer (model w/x) diagram GSXR750 1998 (W) USA (E03)
SPEEDOMETER (MODEL W/X) GSXR750 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412033EC0
ref: 1-1
SPEED & TACHOMETER(MILE/KILO)
€ 0.00
1-2
3412033EA0
ref: 1-2
SPEED & TACHOMETER(KILO)
€ 725.00
2
3412333E00
ref: 2
ATTACHMENT,SWITCH
€ 6.50
3
3412433E00
ref: 3
SWITCH,GUM
€ 5.50
4
3413033E01
ref: 4
CASE ASSY
€ 70.50
5
3415033EA0
ref: 5
VISOR,METER
€ 96.00
6
3417233E00
ref: 6
SOCKET(T:6.5)
€ 5.00
7
0913203005
ref: 7
SCREW(3X10)
€ 1.50
8
3419833E00
ref: 8
CAP,BLIND NO.1
€ 3.50
9
3419833E10
ref: 9
CAP,BLIND NO.2
€ 8.50
10
0947112108
ref: 10
BULB(12V1.7W,T6.5)
€ 2.00
11
0351104163
ref: 11
03511-0416A
SCREW
€ 1.50
12
0354104203
ref: 12
03541-0420A
SCREW
€ 2.50
13
3495533E00
ref: 13
CUSHION,METER
€ 3.00
14
0916005037
ref: 14
WASHER(5.5X16X1.2)
€ 1.50
15
0216205083
ref: 15
02162-0508A
SCREW
€ 2.00
16
3498142E00
ref: 16
34981-42E01
ROTOR,SPEED
€ 16.00
17
3499033E10
ref: 17
34990-35F00
SENSOR,SPEED
€ 112.50
18
0712005123
ref: 18
07120-0512B
BOLT
€ 2.00
19
0713008203
ref: 19
07130-0820B
BOLT
€ 3.00
