AIR INTAKE PIPE (AGQ)
GSXR750 2013 (L3) USA (E03)

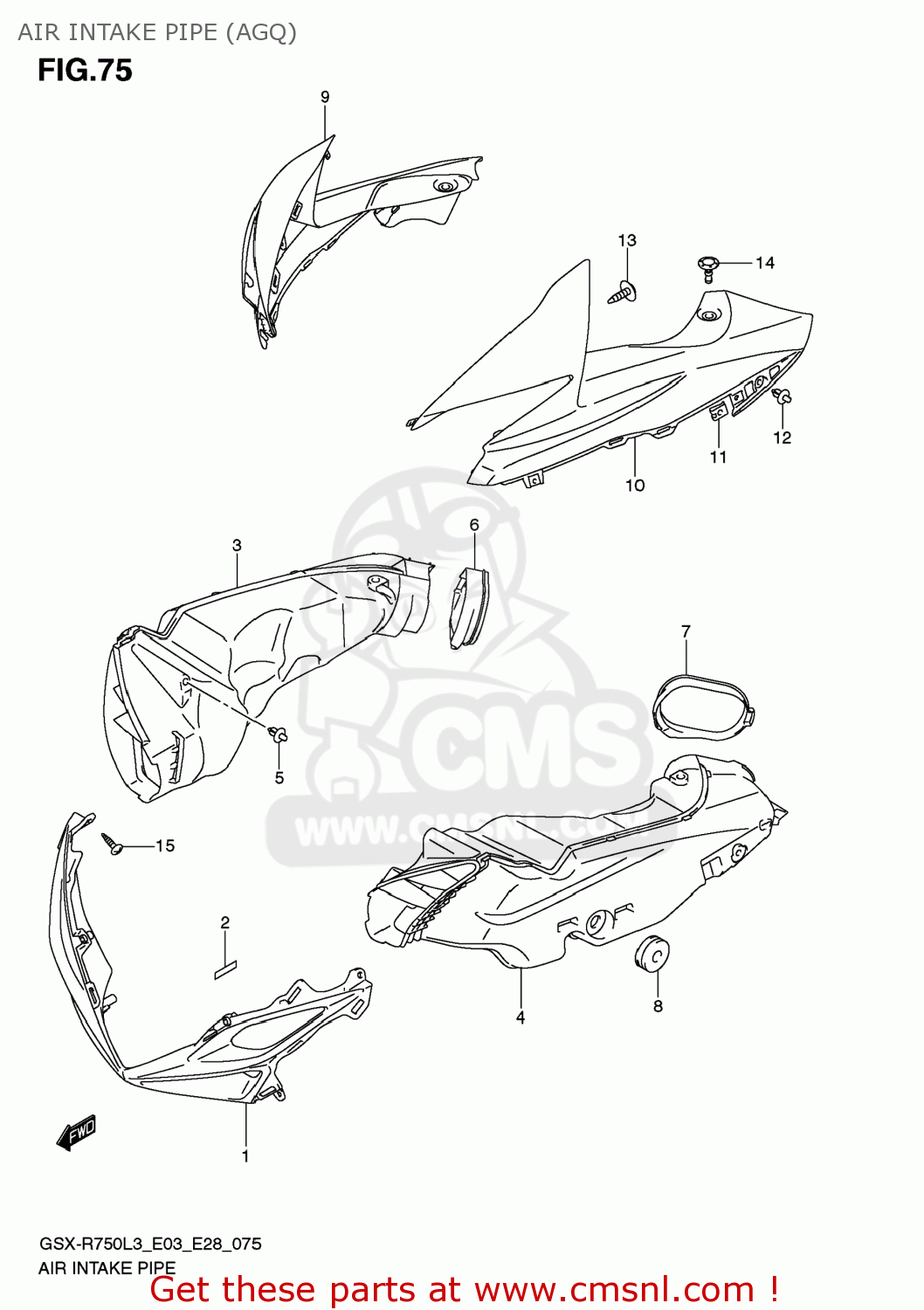

Air intake pipe (agq) diagram GSXR750 2013 (L3) USA (E03)
AIR INTAKE PIPE (AGQ) GSXR750 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9467114J10YUA
ref: 1
COVER,INTAKE
€ 102.00
2
9444306G00
ref: 2
TAPE(6X25X0.13)
€ 2.00
3
9442014J10
ref: 3
PIPE,AIR INTAKE,R
€ 41.00
4
9443014J10
ref: 4
PIPE,AIR INTAKE,L
€ 42.50
5
09409063145PK
ref: 5
CLIP(BLACK)
€ 3.50
6
9442314J00
ref: 6
MOLDING,AIR INTAKE,R
€ 11.50
7
9443314J00
ref: 7
MOLDING,AIR INTAKE,L
€ 11.50
8
0932008028
ref: 8
CUSHION
€ 2.50
9
9467214J00YWW
ref: 9
COVER,INTAKE,R
€ 95.00
10
9468214J00YWW
ref: 10
COVER,INTAKE,L
€ 95.00
11
0914805052
ref: 11
NUT
€ 3.50
12
09409063145PK
ref: 12
CLIP(BLACK)
€ 3.50
13
0913205050
ref: 13
SCREW(5X12)
€ 2.00
14
9447935F00
ref: 14
CLIP
€ 3.50
15
035410512A
ref: 15
SCREW
€ 2.00
