THROTTLE BODY (E03)
GSXR750 2013 (L3) USA (E03)

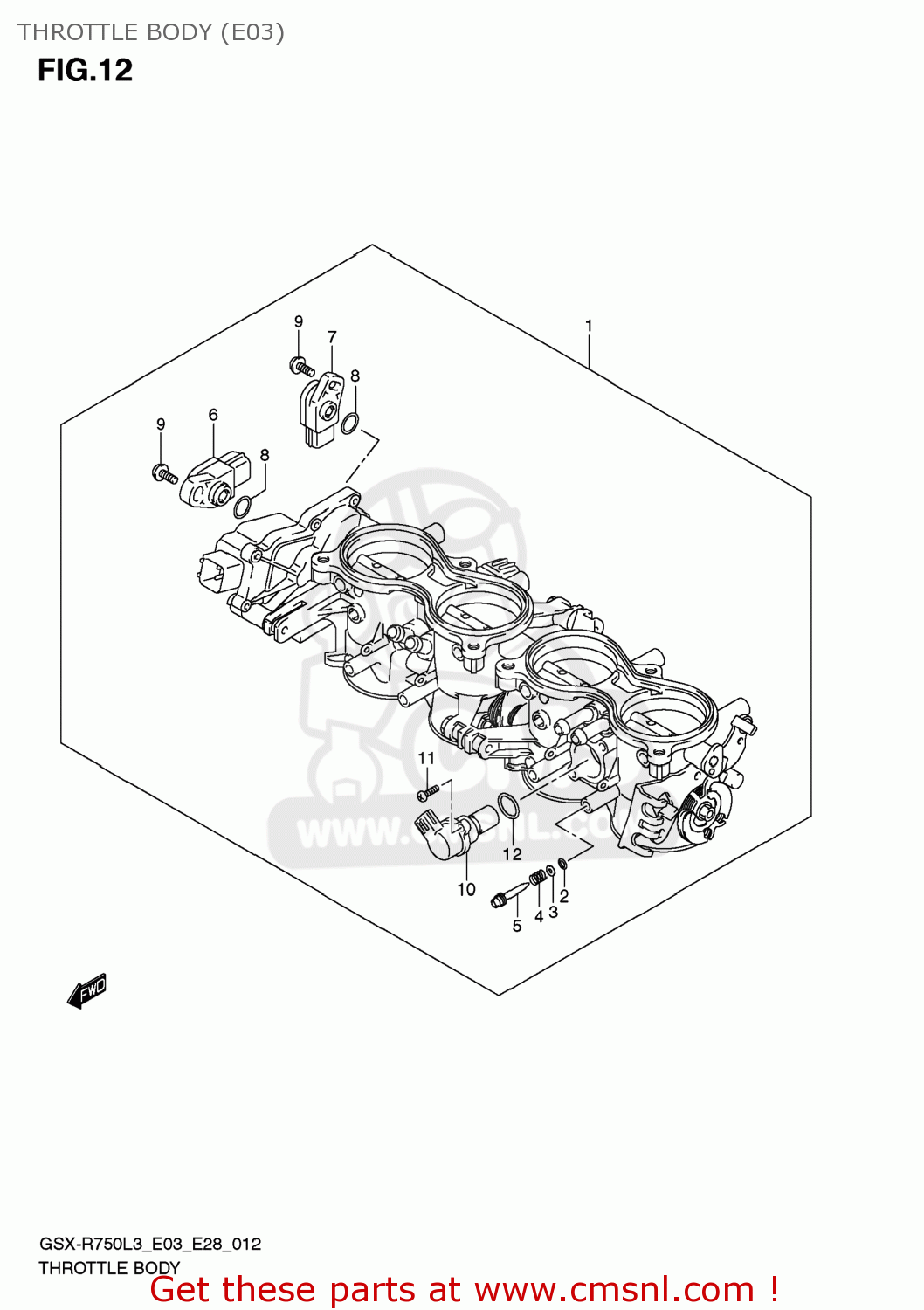

Throttle body (e03) diagram GSXR750 2013 (L3) USA (E03)
THROTTLE BODY (E03) GSXR750 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1340615J20
ref: 1
BODY ASSY,THROTTLE
€ 1,524.00
2
1329529900
ref: 2
O RING,PILOT AIR SCREW
€ 4.00
3
1360647A00
ref: 3
WASHER
€ 2.00
4
1326848700
ref: 4
SPRING,THROTTLE SCREW
€ 3.50
5
1326933E00
ref: 5
SCREW
€ 8.50
6
1358014J00
ref: 6
SENSOR
€ 97.00
7
1358014J10
ref: 7
SENSOR
€ 108.00
8
1357529G00
ref: 8
O RING
€ 3.00
9
1360502F00
ref: 9
SCREW
€ 3.00
10
1811714J01
ref: 10
MOTOR ASSY
€ 306.00
11
1360537H00
ref: 11
SCREW
€ 2.50
12
1367937H00
ref: 12
O RING
€ 4.50
