FRONT WHEEL
GSXR750 2013 (L3) USA (E03)

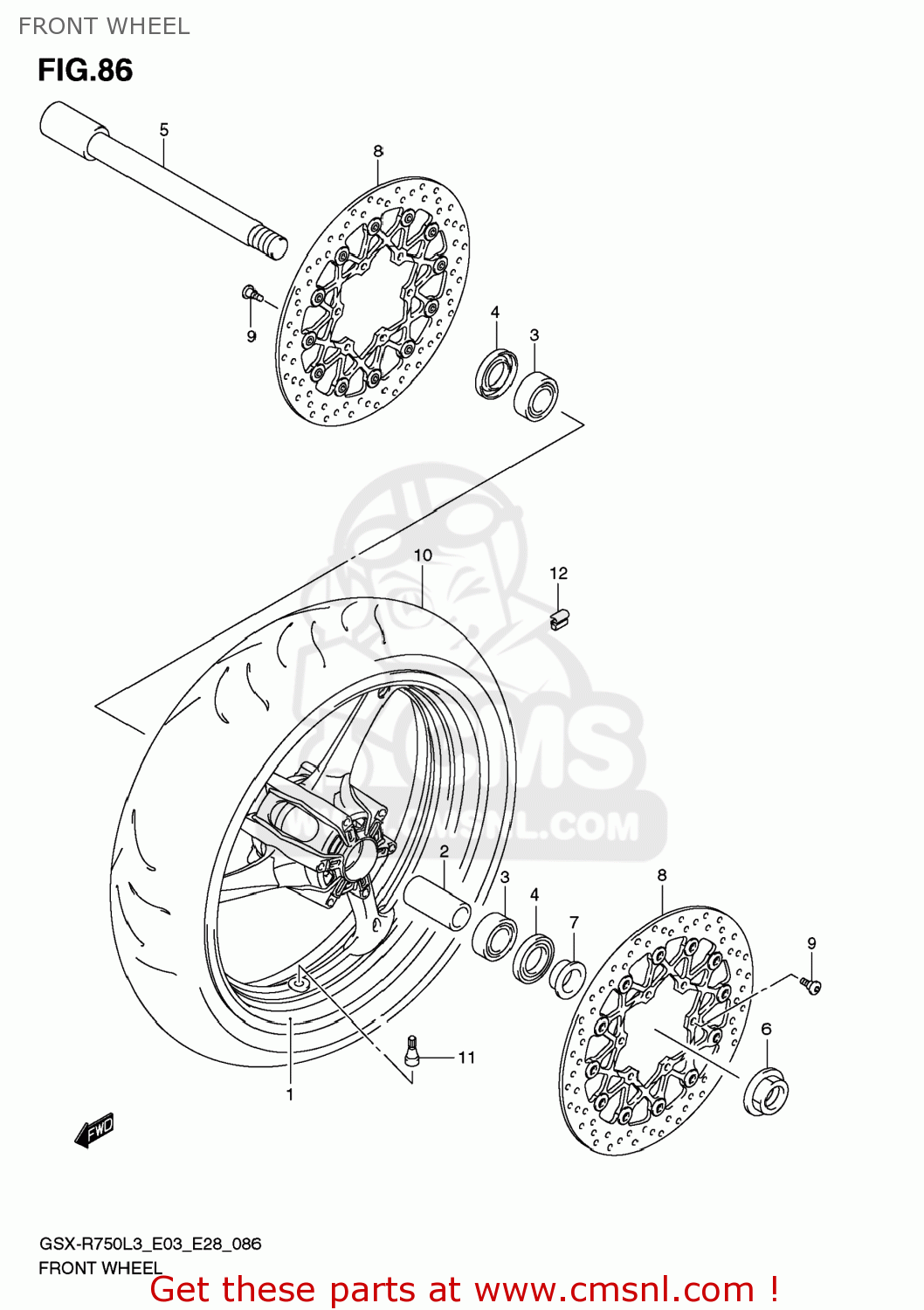

Front wheel diagram GSXR750 2013 (L3) USA (E03)
FRONT WHEEL GSXR750 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411114J00019
ref: 1
WHEEL,FR(17M/CXMT3.50)
€ 553.50
2
5473114J00
ref: 2
SPACER,FR HUB BEARING
€ 17.50
3
0926222035
ref: 3
BEARING(22X44X12)
€ 36.50
4
0928328016
ref: 4
SEAL,OIL(28X44X7.5)
€ 8.50
5
5471114J00
ref: 5
AXLE,FR
€ 78.50
6
6299447H00
ref: 6
NUT,RR SHOCK ABS BRACKET
€ 32.00
7
5475114J00
ref: 7
SPACER,FR AXLE,L
€ 15.00
8
5921037H01
ref: 8
DISC,FR BRAKE
€ 195.50
9
0910606124
ref: 9
BOLT(6X21)
€ 3.50
10
5511015J00
ref: 10
TIRE,FR
€ 204.00
11
4313024A00
ref: 11
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
12-1
5541122H00
ref: 12-1
BALANCER,WHEEL(10G)
€ 4.50
12-2
5541222H00
ref: 12-2
BALANCER,WHEEL(20G)
€ 5.50
12-3
5541322H00
ref: 12-3
BALANCER,WHEEL(30G)
€ 6.00
