SPEEDOMETER (E33)

GSXR750 2013 (L3) USA (E03)

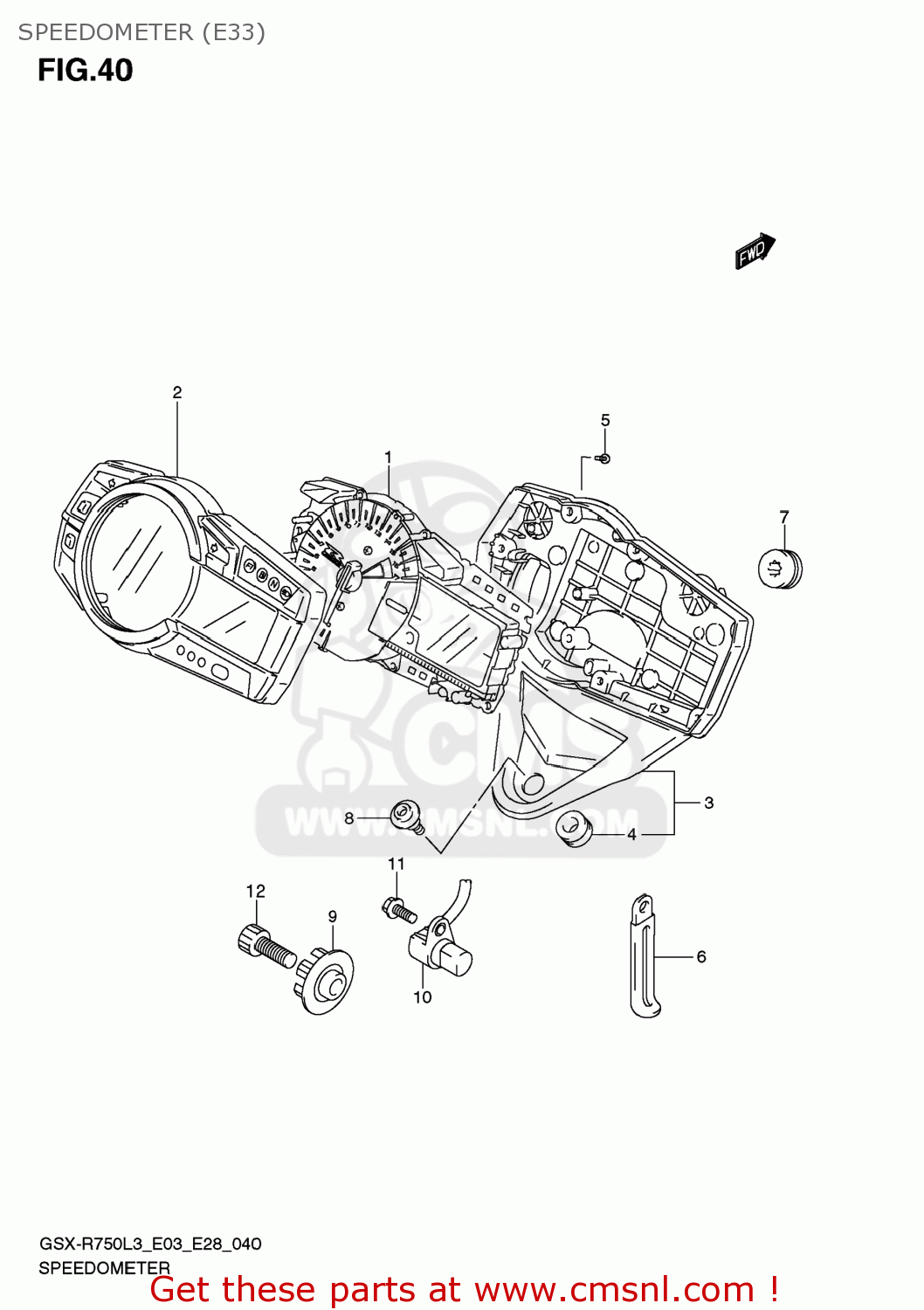

Speedometer (e33) diagram GSXR750 2013 (L3) USA (E03)

SPEEDOMETER (E33) GSXR750 2013 (L3) USA (E03)

SPEEDOMETER (E33) GSXR750 2013 (L3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3412015J10
ref: 1

SPEEDOMETER

€ 579.00

2

3415047H00
ref: 2

CASE ASSY,UPR

€ 113.50

3

3411114J00
ref: 3

LWR CASE ASSY

€ 60.50

4

3495533E00
ref: 4

CUSHION,METER

€ 3.00

5

0913203008
ref: 5

SCREW(3X16)

€ 1.50

6

0940406429
ref: 6

CLAMP(L:45)

€ 2.50

7

3495513E00
ref: 7

CUSHION

€ 3.00

8

3414918G00
ref: 8

SCREW,SPEEDOMETER

€ 2.00

9

3498138G01
ref: 9

ROTOR,SPEED

€ 15.00

10

3499035F00
ref: 10

SENSOR,SPEED

€ 112.50

11

071200512A
ref: 11

BOLT

€ 2.00

12

071300825B
ref: 12

BOLT

€ 3.50
