STARTER CLUTCH

GSXR750 2013 (L3) USA (E03)

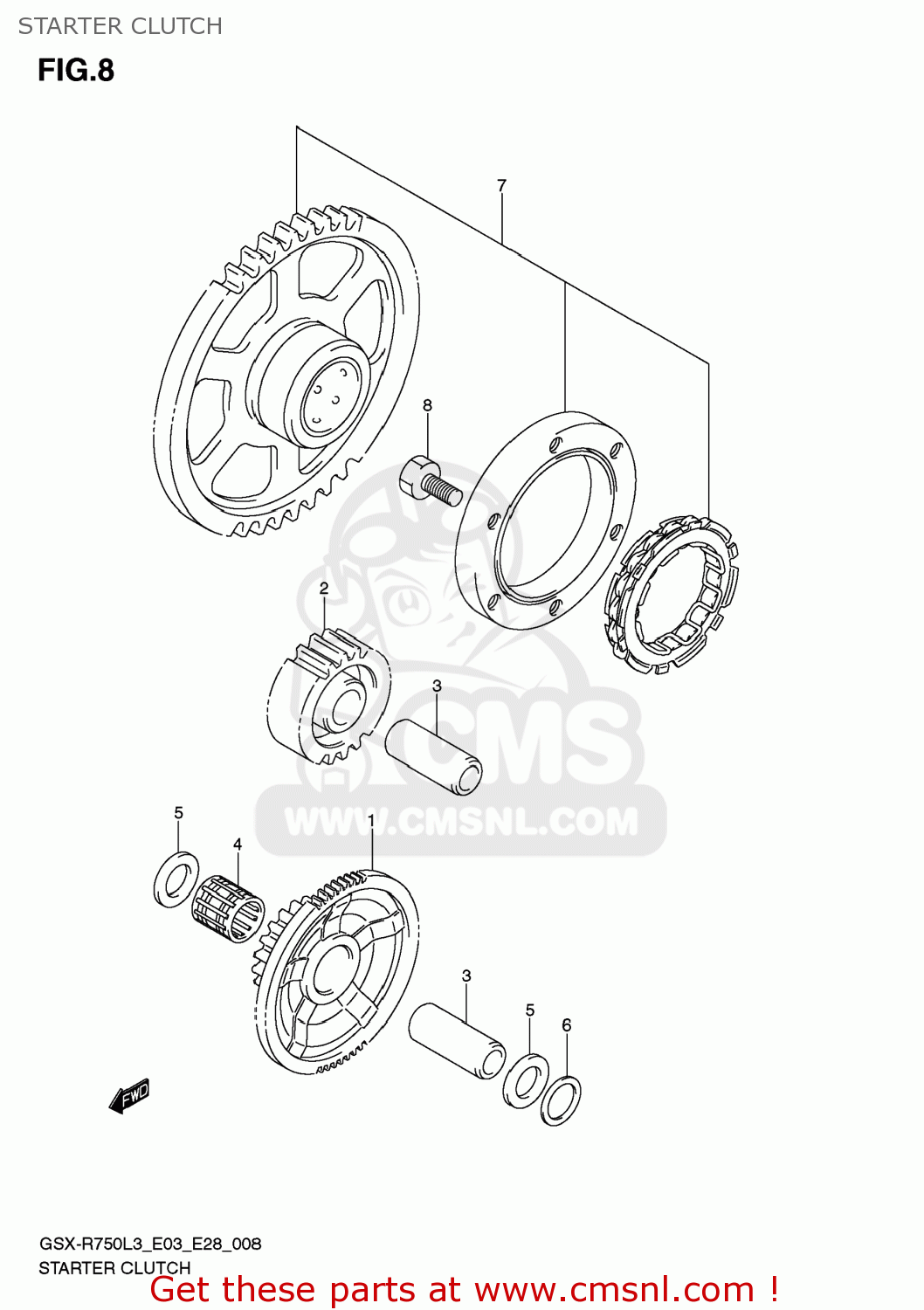

Starter clutch diagram GSXR750 2013 (L3) USA (E03)

STARTER CLUTCH GSXR750 2013 (L3) USA (E03)

STARTER CLUTCH GSXR750 2013 (L3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261101H00
ref: 1

GEAR,STARTER IDLE NO.1

€ 76.00

2

1261201H00
ref: 2

GEAR,STARTER IDLE NO.2

€ 45.50

3

0920612007
ref: 3

PIN(8X12X33)

€ 6.00

4

0926312023
ref: 4

BEARING(12X16X16)

€ 9.00

5

0918112167
ref: 5

SHIM(12X20X1)

€ 2.50

6

0916412021
ref: 6

WASHER

€ 2.00

7

1260001810
ref: 7

CLUTCH SET,STARTER

€ 227.00

8

0910006171
ref: 8

BOLT(6X13)

€ 3.00
