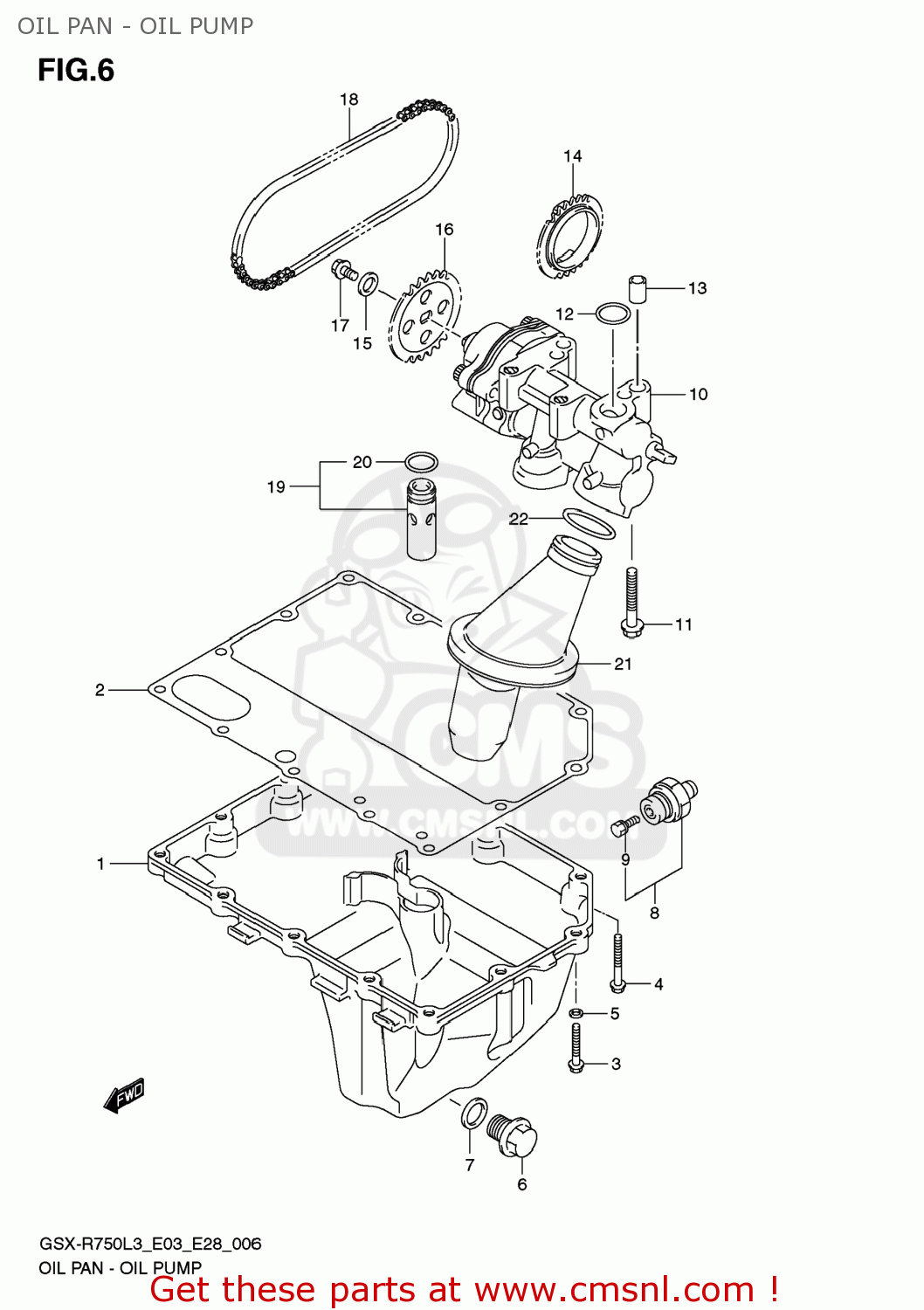

OIL PAN - OIL PUMP - GSXR750 2013 (L3) USA (E03)

ref

part #

description

quantity

1

1151101H00
ref: 1

PAN,OIL

€ 182.00

2

1148901H01
ref: 2

GASKET,OIL PAN(ASB) (NAS)

€ 14.00

3

015470625A
ref: 3

BOLT

€ 2.50

4

0910306204
ref: 4

BOLT(6X30)

€ 3.50

5

0916806023
ref: 5

GASKET(5.8X13X1.2) (NAS)

€ 2.00

6

0924714036
ref: 6

PLUG(14X20)

€ 5.50

7

0916814002
ref: 7
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

8

3782033D10
ref: 8

SWITCH ASSY,OIL PRESSURE

€ 29.00

9

3782233D00
ref: 9

BOLT,OIL PRESSURE SWITCH

€ 3.00

10

1640001H00
ref: 10

PUMP ASSY,ENGINE OIL

€ 182.00

11

015470635A
ref: 11

BOLT

€ 3.00

12

0928015007
ref: 12

O RING(D:2.4,ID:15.8)

€ 2.00

13

0421109149
ref: 13

PIN

€ 2.00

14

1632101H00
ref: 14

SPROCKET,OIL PUMP DRIVE

€ 42.50

15

0918110158
ref: 15

SHIM(10X18X0.5)

€ 2.50

16

1633101H00
ref: 16

SPROCKET,OIL PUMP DRIVEN

€ 13.00

17

0910306285
ref: 17

BOLT(6X12)

€ 2.50

18

1631001H00
ref: 18

CHAIN,OIL PUMP DRIVE

€ 19.50

19

1644024F00
ref: 19

VALVE ASSY,OIL RELIEF(7K)

€ 41.50

20

0928013004
ref: 20

O RING(D:1.9,ID:13)

€ 2.50

21

1652001H00
ref: 21

STRAINER ASSY,ENGINE OIL

€ 21.00

22

0928025004
ref: 22

O RING(D:2.4,ID:24.7)

€ 2.00
