COWLING BODY

GSXR750 2013 (L3) USA (E03)

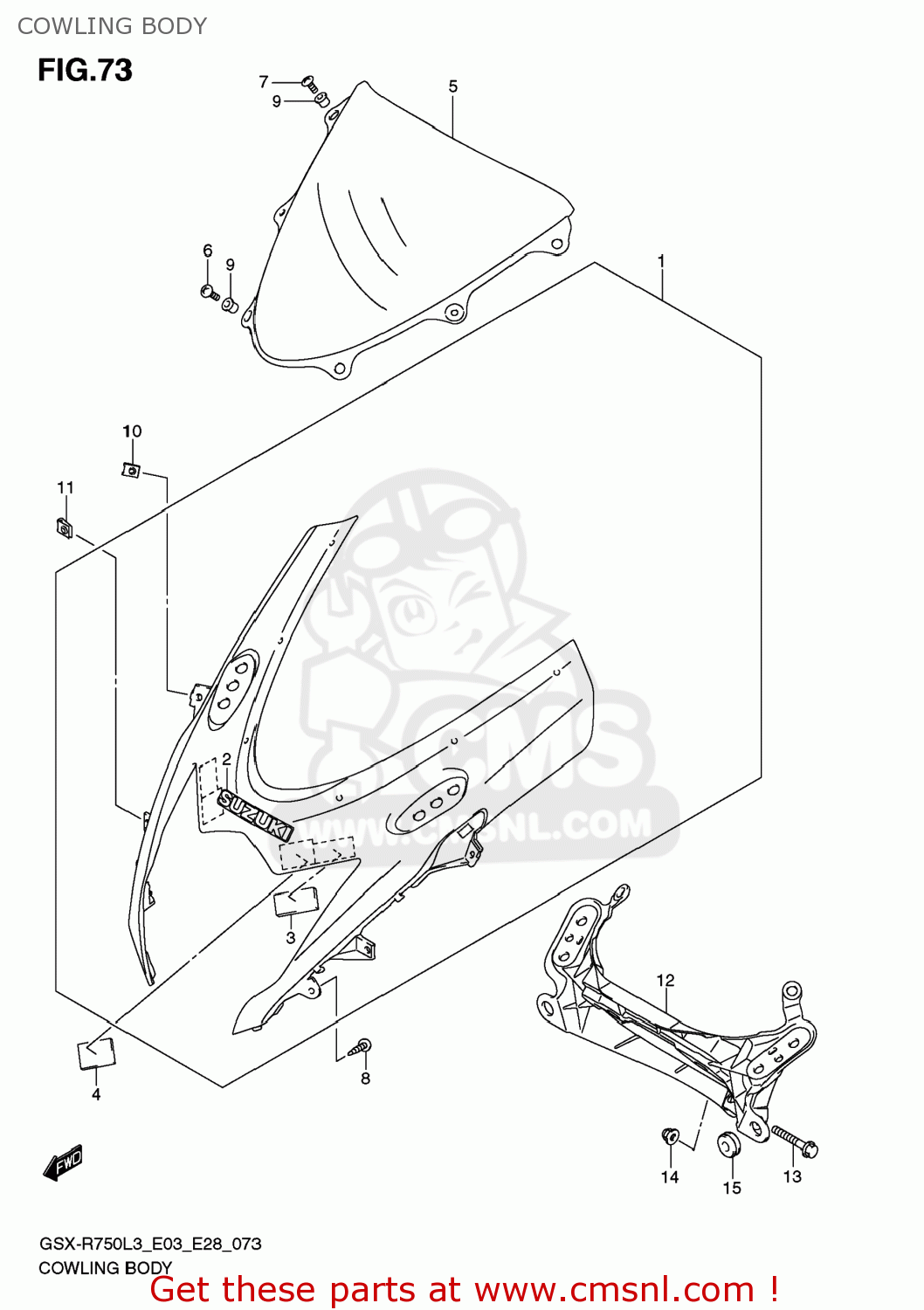

Cowling body diagram GSXR750 2013 (L3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9441014J10YLF
ref: 1-1

COWLING,BODY(GRAY)

€ 131.00

1-2

9441014J106CX
ref: 1-2

COWLING,BODY(BLUE)

€ 171.00

2-1

6828124F10019
ref: 2-1

EMBLEM,SUZUKI

€ 10.50

2-2

6864119F00YWW
ref: 2-2

EMBLEM,SUZUKI

€ 8.00

9214614J00
ref: 3

CUSHION,BODY COWLING

€ 2.50

4457202F01
ref: 4

FASTENER

€ 8.50

9461114J00
ref: 5

WINDSCREEN

€ 57.00

0912505133
ref: 6

SCREW(5X18)

€ 2.50

0912505134
ref: 7

SCREW(5X15)

€ 2.50

035410516A
ref: 8

SCREW

€ 1.50

0915905019
ref: 9

NUT

€ 5.50

0914805052
ref: 10

NUT

€ 3.50

0914805047
ref: 11

NUT

€ 2.00

9451114J00
ref: 12

BRACE,COWLING

€ 207.50

0910308207
ref: 13

BOLT(8X45)

€ 2.00

083132008A
ref: 14

NUT

€ 2.50

0932008047
ref: 15

CUSHION

€ 4.00
