REAR FENDER (E03)
GSXR750 2013 (L3) USA (E03)

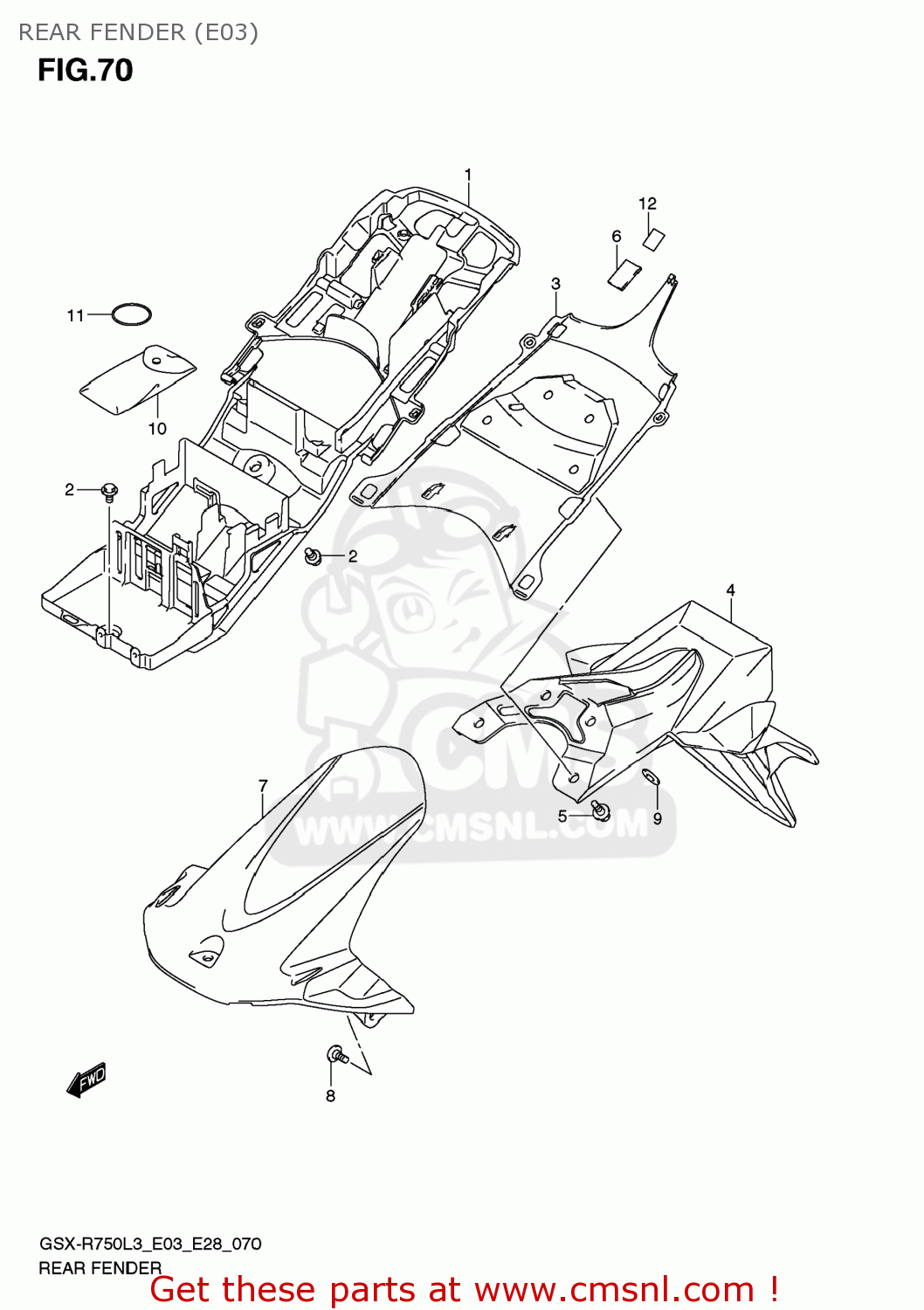

Rear fender (e03) diagram GSXR750 2013 (L3) USA (E03)
REAR FENDER (E03) GSXR750 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311114J00
ref: 1
FENDER,RR FR
€ 36.00
2
0911106107
ref: 2
BOLT(6X12)
€ 3.00
3
6311214J00
ref: 3
COVER,RR FENDER FR
€ 32.50
4
6311314J00
ref: 4
FENDER,RR RR
€ 40.50
5
0911106072
ref: 5
BOLT(6X17.8)
€ 2.00
6
4455633H00
ref: 6
CUSHION,FUEL TANK ATTACHMENT
€ 4.00
7
6311414J01
ref: 7
FENDER,RR LWR
€ 22.00
8
0913906158
ref: 8
SCREW(6X16)
€ 4.00
9
0916006077
ref: 9
WASHER(6.5X20X1.2)
€ 2.00
10
0980021056
ref: 10
TOOL ASSY
€ 31.50
11
0928057003
ref: 11
O RING(D:3.5,ID:56.5)
€ 5.50
12
4457237H00
ref: 12
FASTENER,COWLING
€ 5.50
