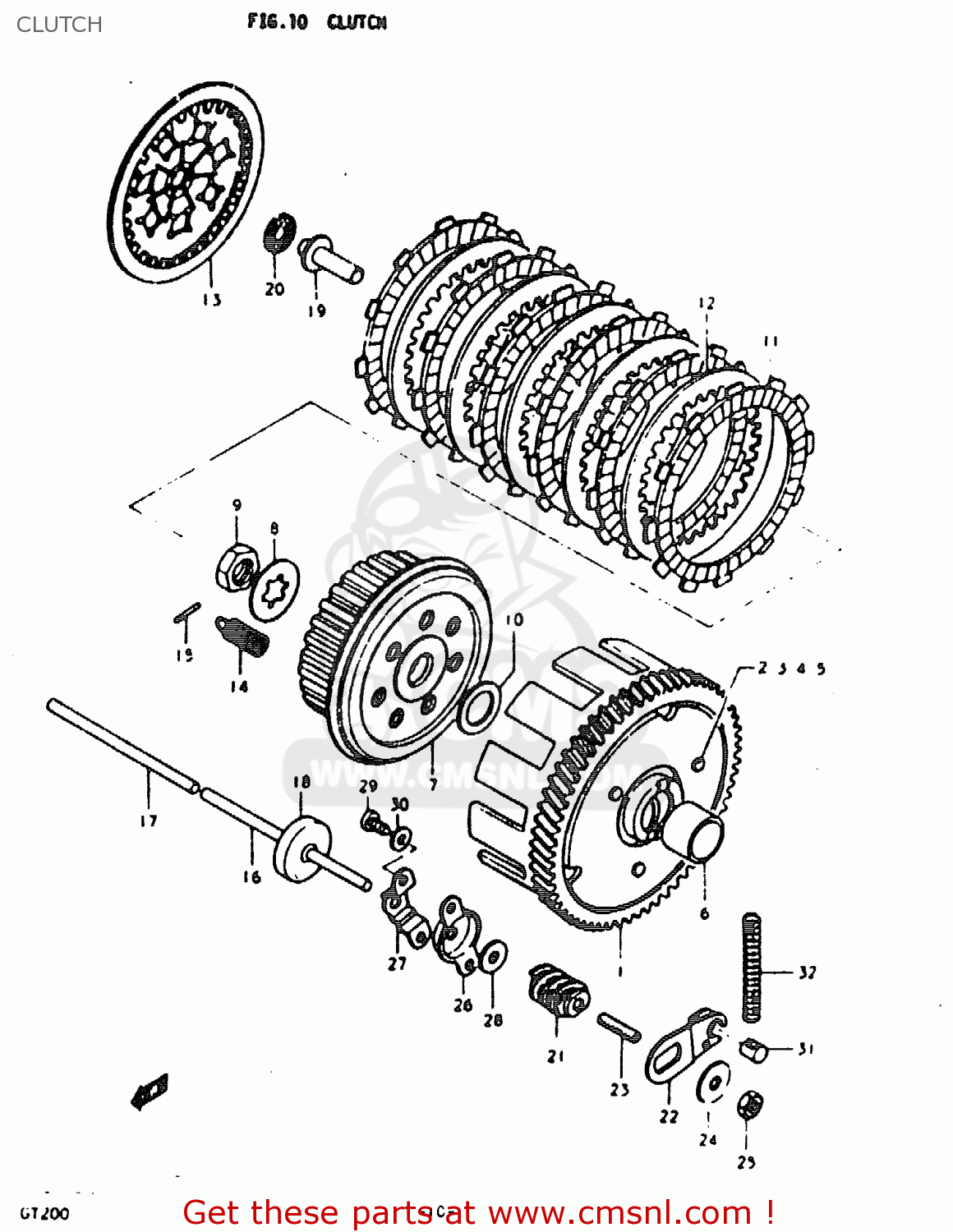

CLUTCH

ref

part #

description

quantity

1

2120010200
ref: 1
NT:61

GEAR ASSY, PRIMARY DRIVEN

€ 0.00

2

2123128040
ref: 2

DAMPER,PRIMARY DRIVEN

€ 2.50

3

2123236240
ref: 3

DAMPER, NO.2

€ 8.50

4

2124128001
ref: 4

PLATE

€ 10.00

5

0502205249
ref: 5

RIVET

€ 1.00

6

0918020068
ref: 6

SPACER

€ 0.00

7

2141028700
ref: 7

HUB,CLUTCH SLEEVE

€ 54.00

8

0916717002
ref: 8

WASHER,LOCK

€ 2.00

9

0914016001
ref: 9

NUT

€ 4.50

10

0821117282
ref: 10

WASHER

€ 3.00

11

2144128300
ref: 11

PLATE,CLUTCH DRIVE

€ 8.50

12

2145128000
ref: 12

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

13

2146028000
ref: 13

PLATE,CLUTCH PRESSURE

€ 21.50

14

0944312010
ref: 14

SPRING

€ 2.00

15

0926102001
ref: 15

PIN(2.5X19.8)

€ 1.50

16

2311110000
ref: 16
L:123

ROD,CLUTCH PUSH

€ 7.50

17

2311110200
ref: 17
L:112

ROD,CLUTCH PUSH NO.2

€ 9.00

18

0928506009
ref: 18

SEAL,OIL(6X30X7)

€ 5.00

19

2312139100
ref: 19

PIECE, PUSH

€ 14.00

20

0926310002
ref: 20

BEARING(10X22X2.8)

€ 8.50

21

2321136200
ref: 21

SCREW,CLUTCH RELEASE

€ 20.50

22

2321207202
ref: 22

ARM,CLUTCH RELEASE

€ 9.50

23

0913406001
ref: 23

SCREW

€ 3.00

24

0916006020
ref: 24

WASHER

€ 2.00

25

0831022068
ref: 25

NUT 6MM

€ 2.50

26

2324136200
ref: 26

COVER

€ 4.50

27

2324536200
ref: 27

HOLDER,DUST SEAL

€ 5.50

28

0928105001
ref: 28

SEAL,DUST(5.3X13X5)

€ 2.50

29

0511105128
ref: 29

SCREW

€ 0.00

30

0832221058
ref: 30

WASHER

€ 2.50

31

2322207000
ref: 31

PIECE,RELEASE ARM END

€ 5.00

32

0944008001
ref: 32

SPRING

€ 2.00
