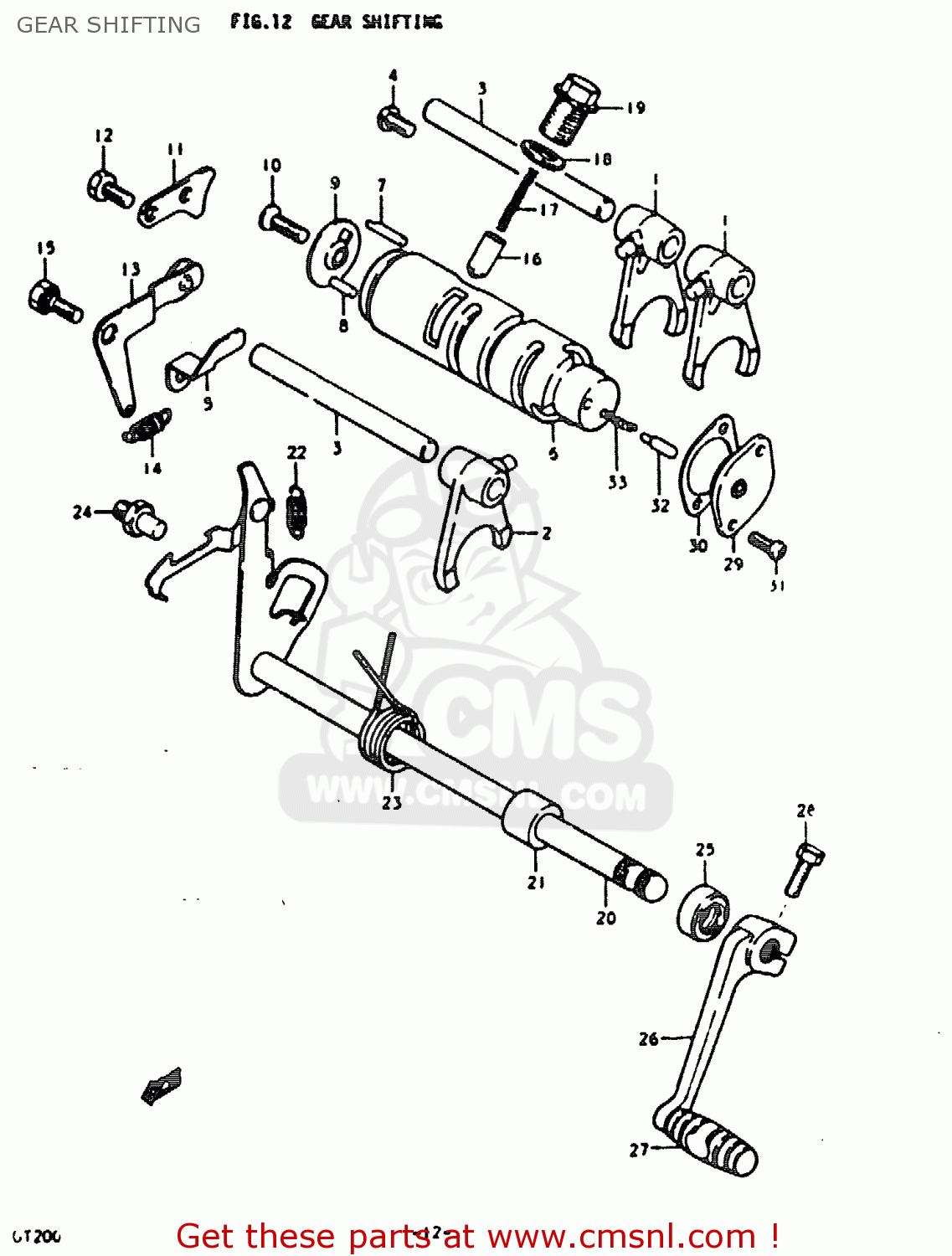

GEAR SHIFTING

ref

part #

description

quantity

1

2521110200
ref: 1

FORK, GEAR SHIFTING NO.1

€ 48.00

2

2522110200
ref: 2

FORK, GEAR SHIFTING NO.2

€ 0.00

3

2541148000
ref: 3

SHAFT,GEAR SHIFT FORK

€ 15.00

4

0214206108
ref: 4

SCREW

€ 2.00

5

2545110200
ref: 5

STOPPER, FORK SHAFT NO.2

€ 0.00

6

2531110300
ref: 6

CAM, GEAR SHIFTING

€ 0.00

7

0920904013
ref: 7

PIN

€ 5.00

8

0926104002
ref: 8

ROLLER(4X13.8)

€ 1.50

9

2532210300
ref: 9

RETAINER, DRIVE PIN

€ 0.00

10

0212206168
ref: 10

SCREW

€ 2.00

11

2534103000
ref: 11

GUIDE,GEAR SHIFT CAM

€ 8.50

12

0110706128
ref: 12

BOLT

€ 2.00

13

2535010200
ref: 13

STOPPER, CAM NO.1

€ 16.50

14

0944308005
ref: 14

SPRING

€ 2.50

15

0911106003
ref: 15

BOLT(6X16.1)

€ 1.50

16

2535118000
ref: 16

STOPPER,GEAR SHIFTING

€ 5.00

17

0944005018
ref: 17

SPRING

€ 14.00

18

0916814004
ref: 18

GASKET(14X19.2X2) (NAS)

€ 2.50

19

2535211000
ref: 19

BOLT,GEAR SHAFT CAM STOPPER

€ 4.50

20

2551010200
ref: 20

SHAFT, GEAR SHIFTING

€ 61.50

21

0918012083
ref: 21

SPACER(12X20X15.3)

€ 2.50

22

0944308017
ref: 22

SPRING

€ 2.00

23

0944426012
ref: 23

SPRING

€ 3.50

24

2567101000
ref: 24

STOPPER,GEAR SHIFT CAM

€ 3.00

25

0928512002
ref: 25

OIL SEAL

€ 7.00

26

2560010300
ref: 26

LEVER ASSY, GEAR SHIFTING

€ 38.50

27

2565216500
ref: 27

RUBBER,GEAR SHIFT PEDAL

€ 4.00

28

0910006091
ref: 28

BOLT

€ 2.00

29

3772010200
ref: 29

BODY, GEAR SHIFTING SWITCH

€ 10.00

30

3771210200
ref: 30

GASKET (MCA)

€ 4.50

31

0211205128
ref: 31

SCREW

€ 2.50

32

0920905011
ref: 32

PIN(5X15.5)

€ 2.00

33

0944004010
ref: 33

SPRING

€ 1.50
