TACHOMETER GEAR

GT200 1979 (N) GENERAL EXPORT (E01)

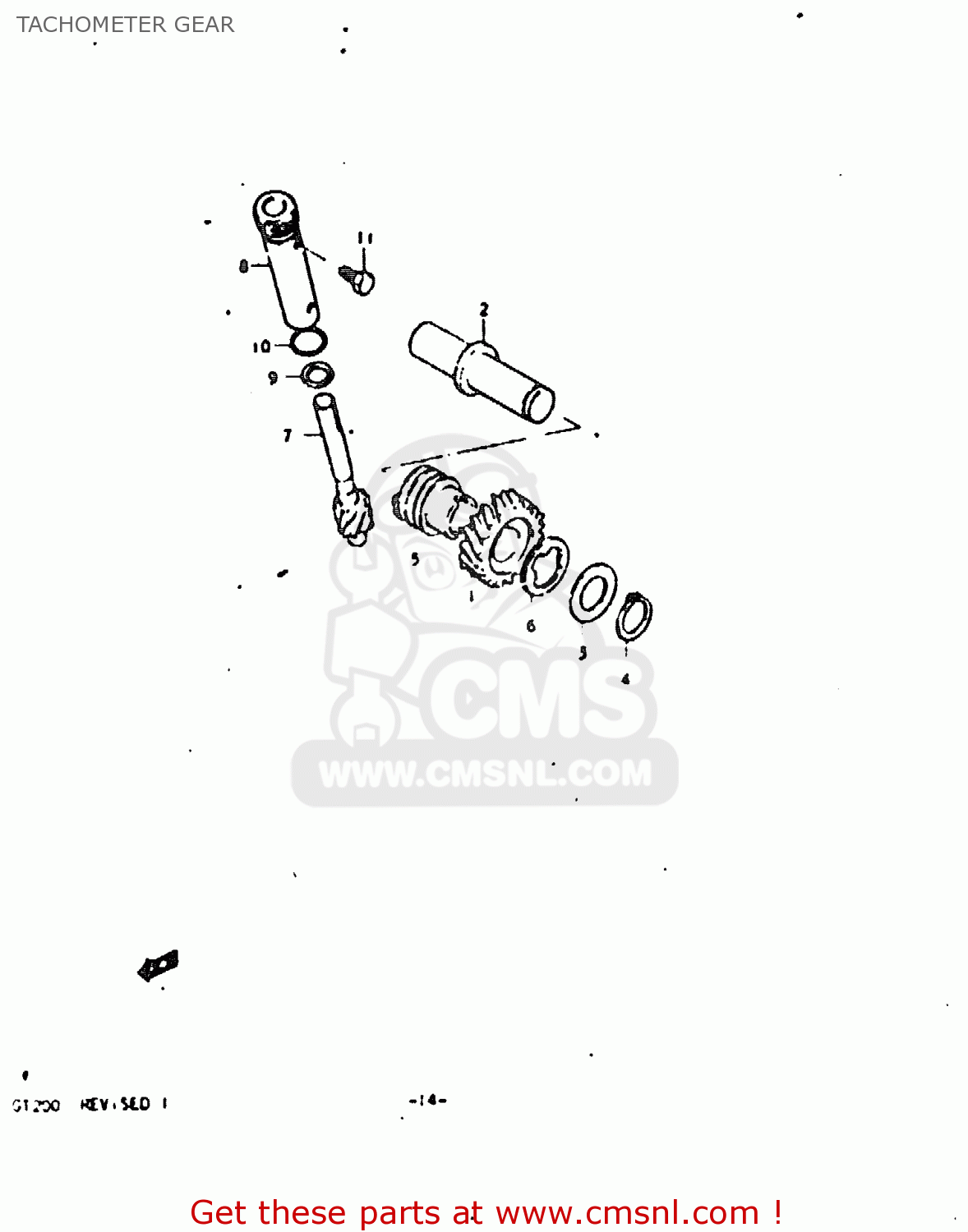

Tachometer gear diagram GT200 1979 (N) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

2642146100
ref: 1

GEAR, TACHOMETER DRIVE NO.2

€ 28.00

2642222701
ref: 2

SHAFT,TACHOMETER DRIVEN GEAR

€ 14.00

0821110201
ref: 3

WASHER,THRUST

€ 2.00

0833131109
ref: 4

CIRCLIP

€ 2.00

2642346100
ref: 5

GEAR,TACH DRIVE NO.2(NT:3)

€ 19.50

2642446100
ref: 6

RETAINER,TACH DRIVEN GEAR NO1

€ 3.00

2643110300
ref: 7

GEAR, TACHOMETER DRIVER

€ 0.00

2644148000
ref: 8

SLEEVE,TACHOMETER DRIVE GEAR

€ 15.00

0916008003
ref: 9

WASHER(8X13.7X1)

€ 2.00

0928010001
ref: 10

O RING(D:1.3,ID:9.6)

€ 2.00

0913506002
ref: 11

BOLT

€ 2.50
