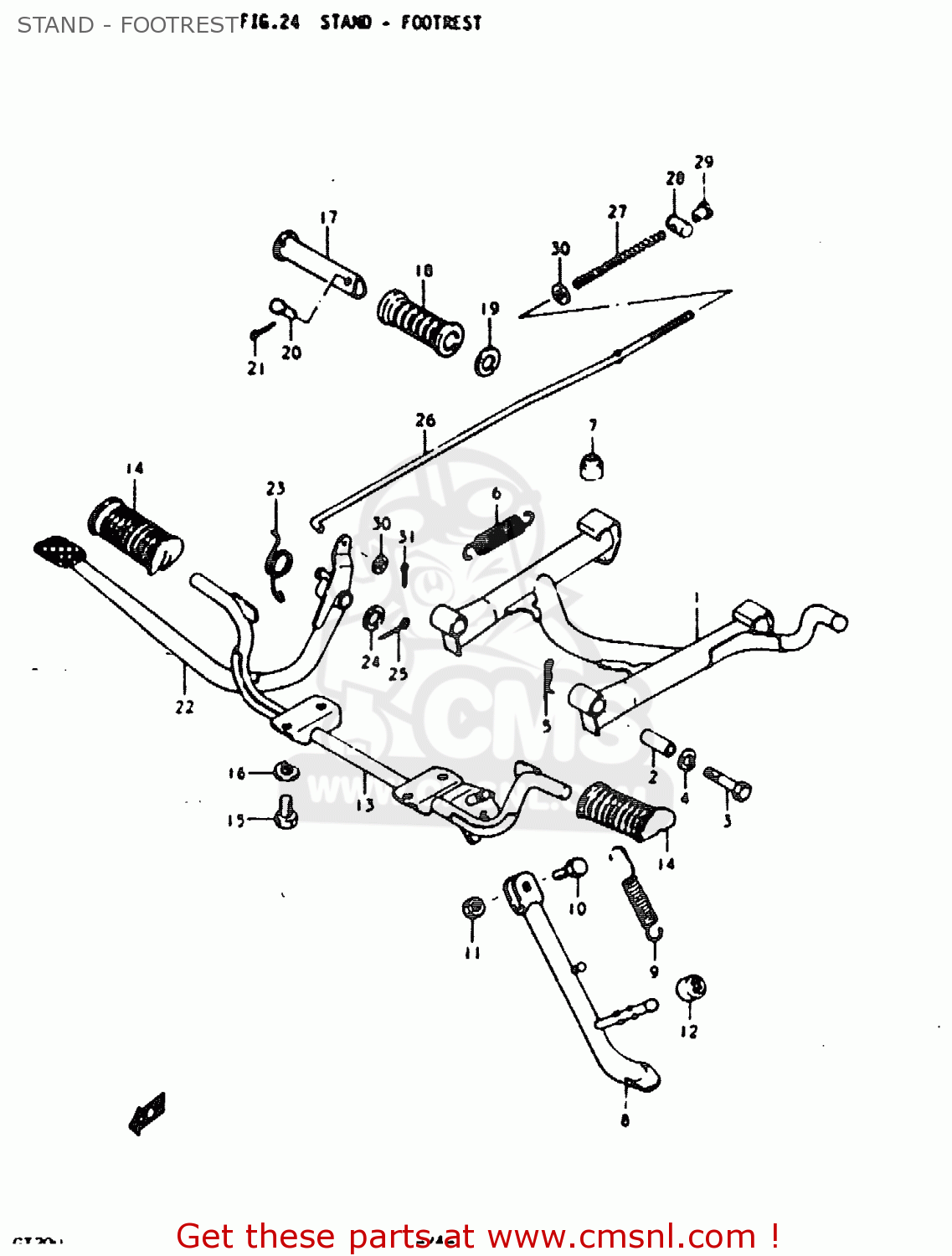

STAND - FOOTREST - GT200 1979 (N) GENERAL EXPORT (E01)

ref

part #

description

quantity

1

4210010200
ref: 1

STAND, CENTER

€ 0.00

2

0918010001
ref: 2
10*16*30

SPACER(10.5X16X30)

€ 3.50

3

0910110020
ref: 3

BOLT 10X52

€ 9.50

4

0832121108
ref: 4

LOCK WASHER

€ 2.00

5

0938510001
ref: 5

CLIP

€ 1.50

6

0944318005
ref: 6

SPRING

€ 4.00

7

0932110001
ref: 7

CUSHION

€ 2.50

8

4231010300
ref: 8

STAND, PROP

€ 0.00

9

0944318003
ref: 9

SPRING

€ 5.50

10

0910010007
ref: 10

BOLT

€ 4.50

11

0831022108
ref: 11

NUT

€ 2.50

12

0932007001
ref: 12

CUSHION

€ 4.00

13

4351010200
ref: 13

BAR, FRONT FOOTREST

€ 56.50

14

4355139100
ref: 14

RUBBER,FR FOOTREST

€ 7.50

15

0110708168
ref: 15

BOLT

€ 2.00

16

0832121088
ref: 16

LOCK WASHER

€ 2.00

17

4361003001
ref: 17

BAR,FOOTREST RUBBER

€ 5.50

18

4361203001
ref: 18

RUBBER,PILLION FOOTREST

€ 3.50

19

0916019006
ref: 19
19.5*32*2

WASHER (19.5X32X2)

€ 2.00

20

0920006010
ref: 20

PIN

€ 2.50

21

0411120208
ref: 21

PIN 20X20

€ 1.50

22

4311010200
ref: 22

PEDAL,BRAKE

€ 41.50

23

0944831011
ref: 23

SPRING

€ 3.50

24

0916015002
ref: 24
15.5*26*2.3

WASHER(15.5X26X2.3)

€ 2.00

25

0411130308
ref: 25

COTTER PIN

€ 1.50

26

4331010300
ref: 26

ROD ASSY, REAR BRAKE

€ 7.00

27

0944009004
ref: 27

SPRING

€ 2.00

28

0920913003
ref: 28

PIN

€ 3.50

29

0915006001
ref: 29

NUT

€ 3.50

30

0832221058
ref: 30

WASHER

€ 2.50

31

0411120208
ref: 31

PIN 20X20

€ 1.50

STAND - FOOTREST

all assemblies
