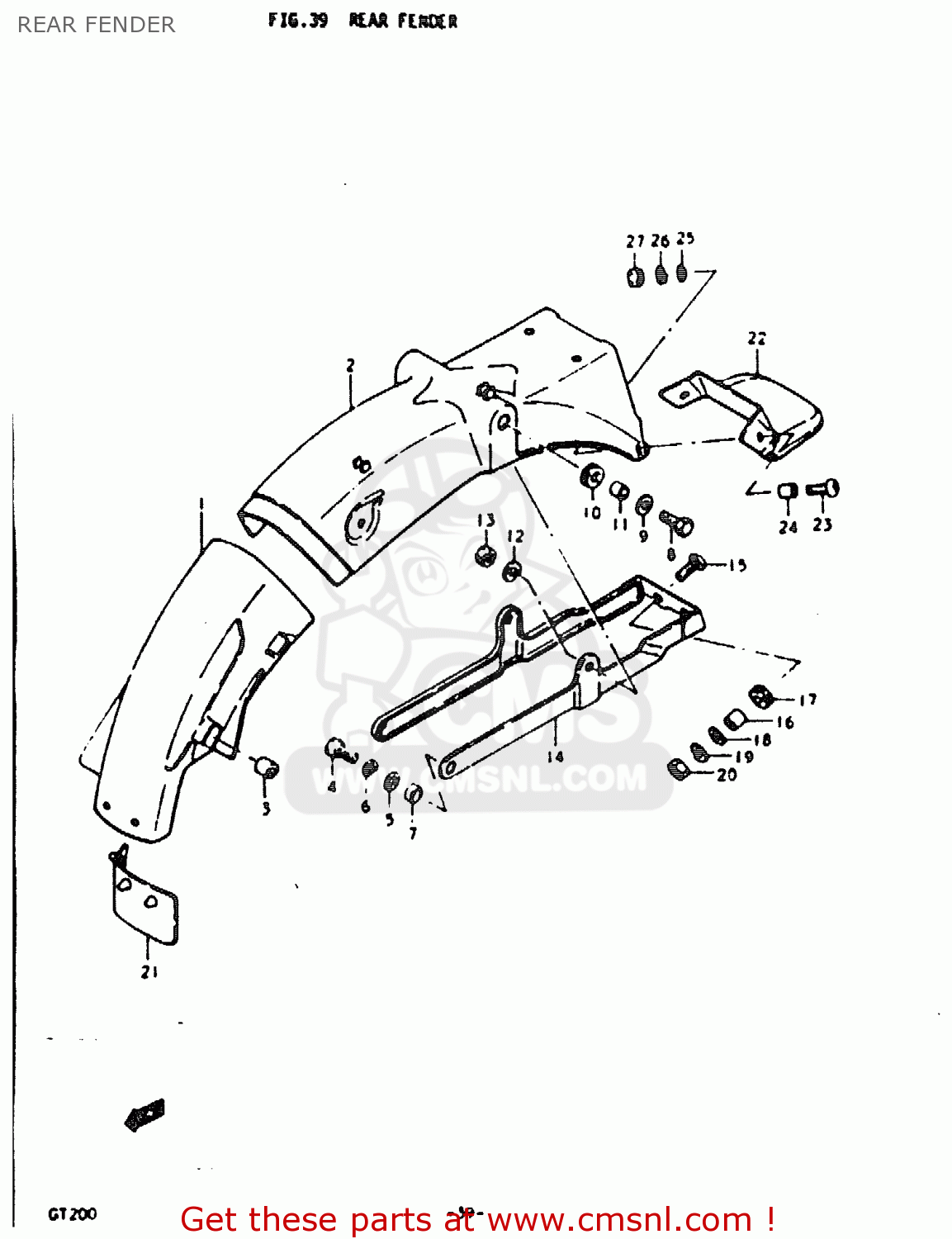

REAR FENDER

ref

part #

description

quantity

1

6311210201
ref: 1

BODY, REAR FENDER FRONT

€ 48.50

2

6311310300
ref: 2

BODY, REAR FENDER REAR

€ 0.00

3

0932905003
ref: 3

CUSHION

€ 4.50

4

0110706128
ref: 4

BOLT

€ 2.00

5

0832221068
ref: 5

WASHER

€ 2.00

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

0918008052
ref: 7
8.5*12*2.5

SPACER(8.5X12X2.5)

€ 3.50

8

0110708308
ref: 8

BOLT (8X30)

€ 2.50

9

0832211088
ref: 9

WASHER

€ 2.00

10

0932012011
ref: 10

CUSHION

€ 3.00

11

0918008021
ref: 11
8.2*11.8*7.5

SPACER (8.2X12X7.5)

€ 3.00

12

0832121088
ref: 12

LOCK WASHER

€ 2.00

13

0831012088
ref: 13

NUT

€ 2.00

14

6312010301
ref: 14

REINFORCEMENT, REAR FENDER

€ 0.00

15

0214206207
ref: 15

SCREW

€ 2.00

16

0918006011
ref: 16
6.1*9*9

SPACER (6.1X9X9)

€ 2.00

17

0932008013
ref: 17

CUSHION

€ 4.00

18

0916006012
ref: 18
6.5*22*1.6

WASHER(6,5X22X1.6)

€ 2.00

19

0832121068
ref: 19

LOCK WASHER

€ 2.50

20

0831011068
ref: 20

NUT

€ 2.50

21

6341133000
ref: 21

MUD GUARD,REAR FENDER

€ 10.00

22

6331144600
ref: 22
OPT

EXTENSION,REAR FENDER

€ 65.00

23

0912506009
ref: 23
OPT

SCREW (6X15)

€ 3.00

24

0918006001
ref: 24
OPT

SPACER(6.2X8.3X5.7)

€ 2.00

25

0916006028
ref: 25
OPT

WASHER(6.5X18X1)

€ 1.50

26

0832121068
ref: 26
OPT

LOCK WASHER

€ 2.50

27

0831011068
ref: 27
OPT

NUT

€ 2.50

all assemblies
