TURN SIGNAL LAMP
GT200 1979 (N) GENERAL EXPORT (E01)

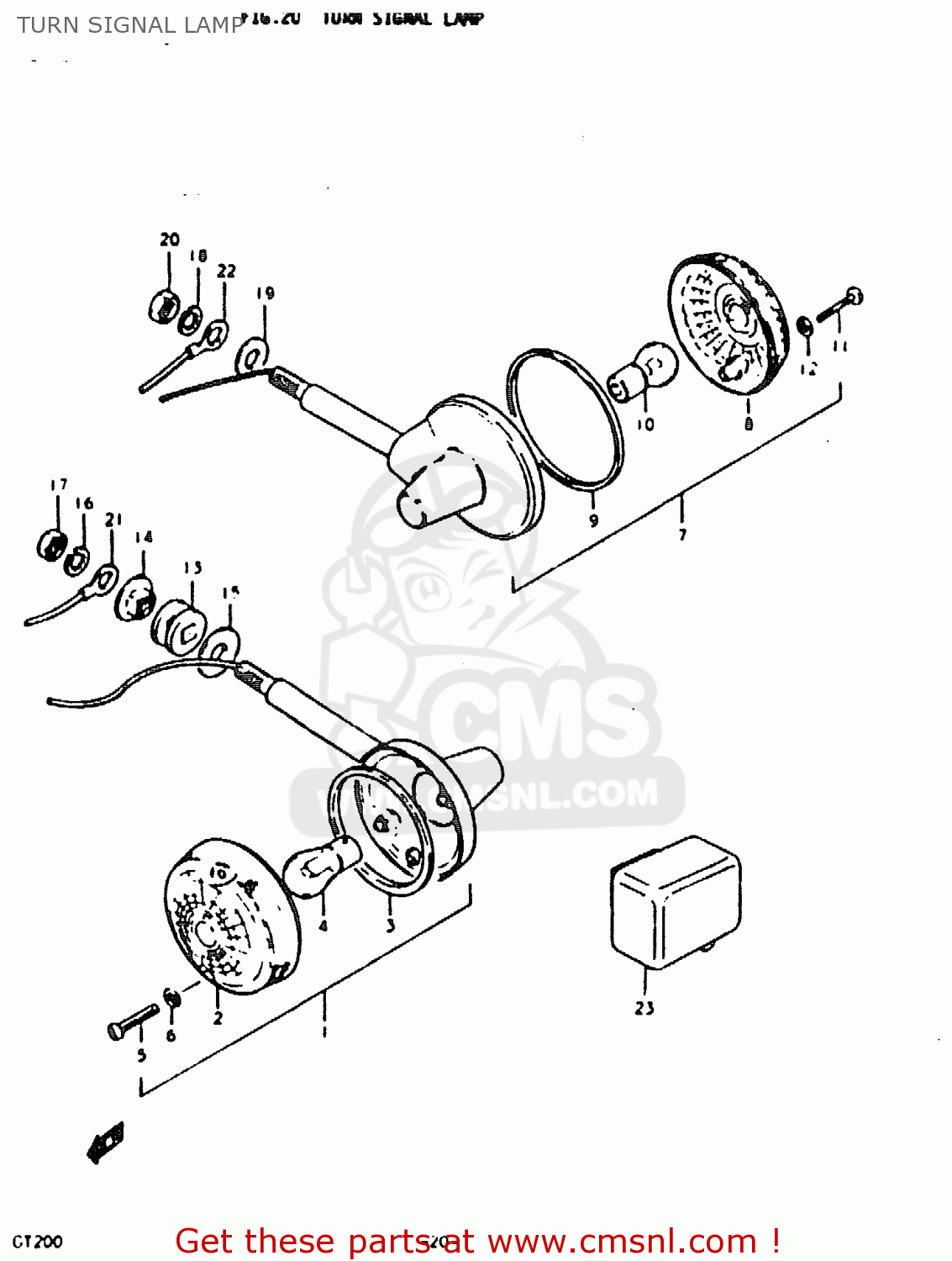

Turn signal lamp diagram GT200 1979 (N) GENERAL EXPORT (E01)
TURN SIGNAL LAMP GT200 1979 (N) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3560147011
ref: 1
LAMP ASSY, FRONT TURN SIGNAL
€ 80.50
2
3561228620
ref: 2
LENS
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0947112006
ref: 4
12V, 23W
BULB(12V23W,STANLEY,A4577A)
€ 4.00
5
3562347610
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3560156331
ref: 7
LAMP ASSY, REAR TURN SIGNAL
€ 0.00
8
3561228620
ref: 8
LENS
€ 10.50
9
3561328620
ref: 9
GASKET (NAS)
€ 7.00
10
0947112006
ref: 10
BULB(12V23W,STANLEY,A4577A)
€ 4.00
11
3562347610
ref: 11
SCREW
€ 1.50
12
3562743010
ref: 12
GASKET (NAS)
€ 2.00
13
3569032200
ref: 13
CUSHION
€ 38.50
14
3569532200
ref: 14
SPACER,RR TURNSIGNAL LAMP
€ 42.00
15
3562944000
ref: 15
WASHER
€ 4.50
16
0832121108
ref: 16
LOCK WASHER
€ 2.00
17
0831012108
ref: 17
NUT
€ 2.50
18
0832121108
ref: 18
LOCK WASHER
€ 2.00
19
0832211108
ref: 19
WASHER
€ 2.50
20
0831022108
ref: 20
NUT
€ 2.50
22
3685210300
ref: 22
LEAD WIRE, EARTH
€ 0.00
23
3861045031
ref: 23
RELAY,TURN SIGNAL
€ 54.50
