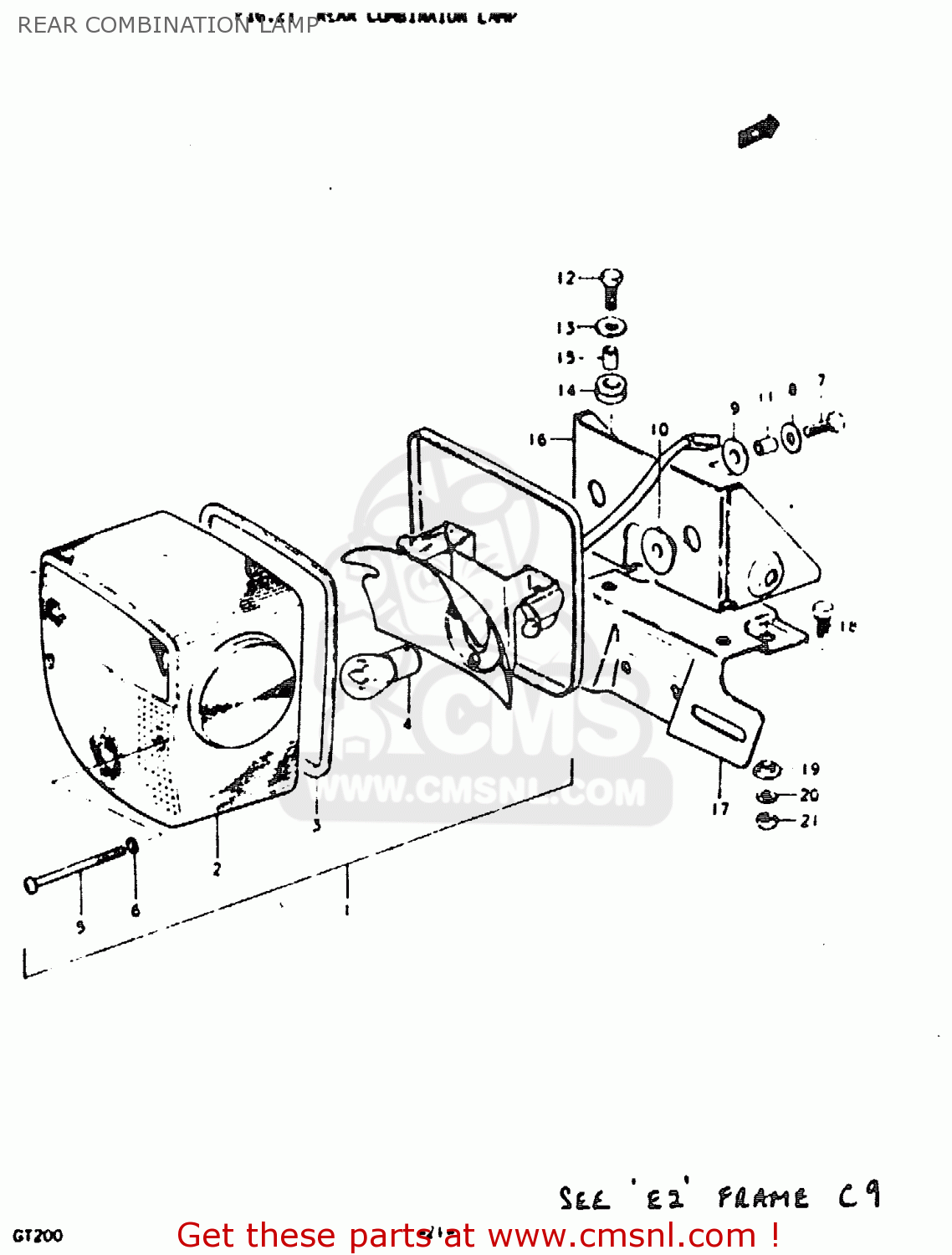

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571011300
ref: 1

LAMP ASSY, REAR COMBINATION

€ 90.50

2

3571230512
ref: 2

LENS

€ 65.50

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4

0947112035
ref: 4
12V, 23/8W

BULB(12V23W)

€ 5.50

5

0912504002
ref: 5

SCREW (4X55)

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0110706208
ref: 7

BOLT

€ 2.00

8

0916006027
ref: 8
6.5*20*1.2

WASHER (6.5X20X1.2)

€ 2.00

9

0932014010
ref: 9

CUSHION

€ 2.50

10

0932009012
ref: 10

CUSHION

€ 6.00

11

0918006006
ref: 11

SPACER (6.8X10X11.5)

€ 3.00

12

0110706168
ref: 12

BOLT, UPPER

€ 3.00

13

0916006027
ref: 13
6.5*20*1.2

WASHER (6.5X20X1.2)

€ 2.00

14

0932009009
ref: 14

CUSHION

€ 5.00

15

0918006011
ref: 15

SPACER (6.1X9X9)

€ 2.00

16

3572610300
ref: 16

BRACKET, COMBINATION LAMP

€ 0.00

17

3592710301
ref: 17

PLATE, LICENSE

€ 0.00

18

0110706128
ref: 18

BOLT

€ 2.00

19

0918006048
ref: 19

SPACER

€ 2.00

20

0832121068
ref: 20

LOCK WASHER

€ 2.50

21

0831011068
ref: 21

NUT

€ 2.50

all assemblies
