prices are in EUR
ref
part #
description
quantity
1-2

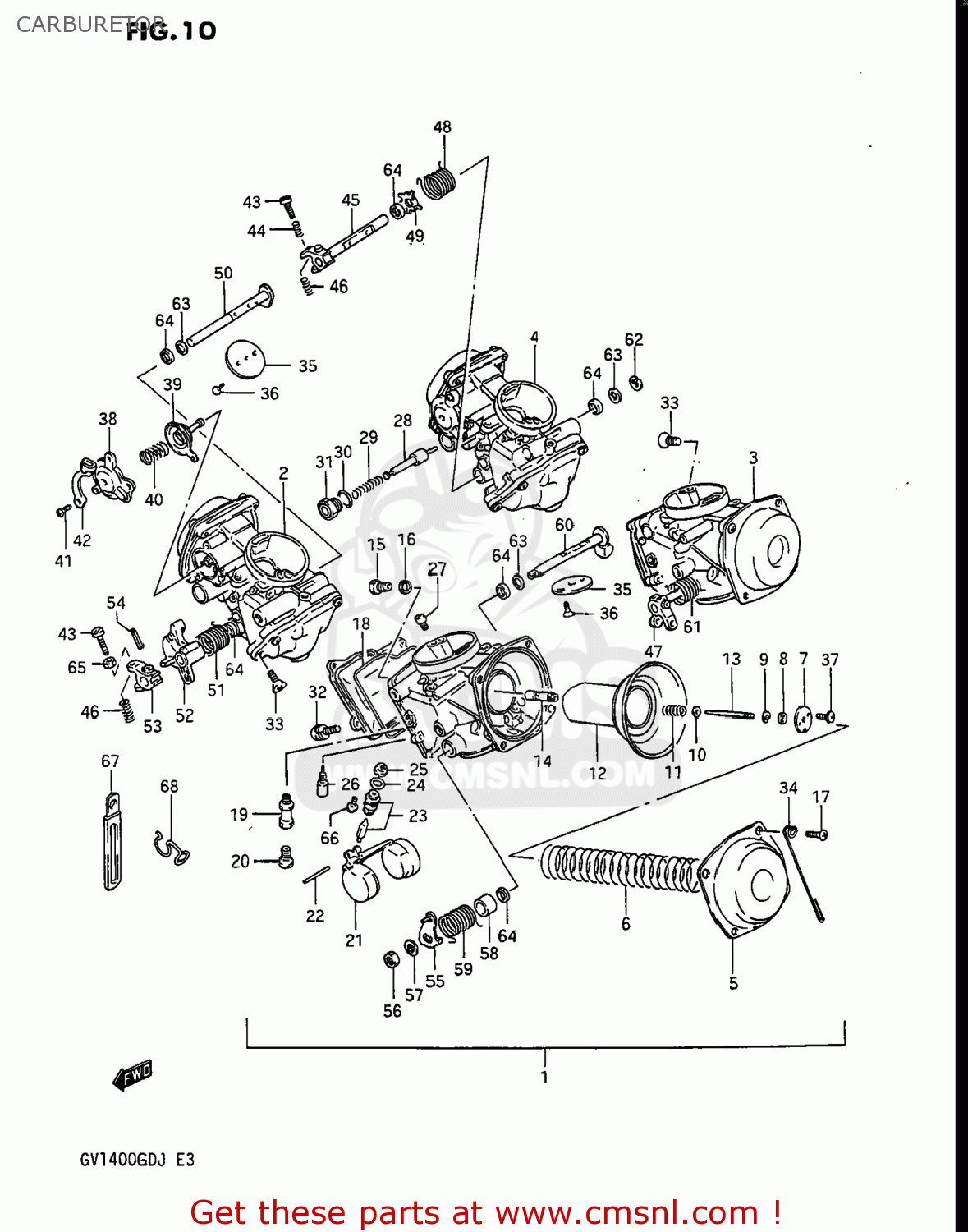

CARBURETOR ASSEMBLY,FRONT
2-2
CARBURETOR ASSEMBLY,FRONT
3-2
CARBURETOR ASSEMBLY,REAR,LEFT
4-2
CARBURETOR ASSEMBLY,REAR,RIGHT
5
COVER,DIAPHRAGM
6
SPRING,DIAPHRAGM
7
PLATE
8
RING
9
CLIP,NEEDLE
10
WASHER
11
SPRING
12
DIAPHRAGM,CARBURETOR
15
SCREW
17
SCREW
19-2
HOLDER,MAIN JET
20
JET,MAIN(105)
21
FLOAT
22
PIN,FLOAT
24
O-RING,NEEDLE VALVE
26
JET,PILOT(25)
27
JET,ENRICH
28
PLUNGER
28
PLUNGER
29
SPRING,STARTER PLUNGER
30
O RING
31
HOLDER,GUIDE
32
SCREW
36
SCREW
39
DIAPHRAGM ASSY
41
SCREW
56
NUT 8MM
57
WASHER
62
E RING
63
GASKET,THROTTLE SHAFT (NAS)
64
SEAL,THROTTLE SHAFT
66
SCREW
67
CLAMP L:35
