FRONT FORK (GV1400GDG/GTG)

GV1400GD CAVALCADE 1987 (H) USA (E03)

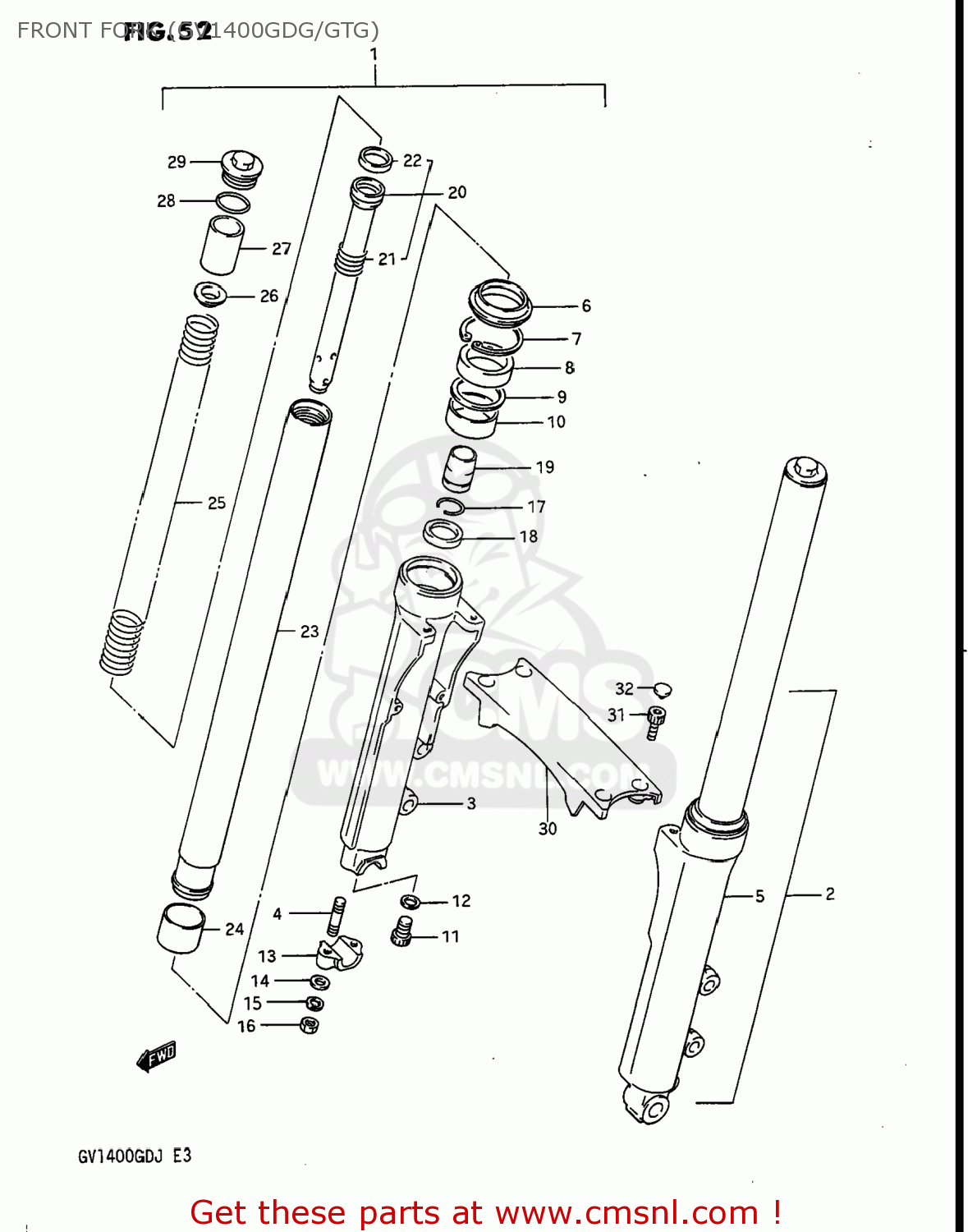

Front fork (gv1400gdg/gtg) diagram GV1400GD CAVALCADE 1987 (H) USA (E03)

FRONT FORK (GV1400GDG/GTG) GV1400GD CAVALCADE 1987 (H) USA (E03)

FRONT FORK (GV1400GDG/GTG) GV1400GD CAVALCADE 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5110324A00
ref: 1-1
51103-24A01

DAMPER ASSEMBLY,RIGHT

€ 801.00

1-2

5110324A01
ref: 1-2

DAMPER ASSEMBLY,FRONT FORK,RIGHT

€ 801.00

2-1

5110424A00
ref: 2-1
51104-24A01

DAMPER ASSEMBLY,LEFT

€ 604.50

2-2

5110424A01
ref: 2-2

DAMPER ASSEMBLY,FRONT FORK,LEFT

€ 604.50

3-1

5113024A00
ref: 3-1
51130-24A01

TUBE,OUTER,RIGHT

€ 403.00

3-2

5113024A01
ref: 3-2

TUBE,OUTER,RIGHT

€ 403.00

4

0141108308
ref: 4
01411-0830A

STUD 8X30

€ 2.00

5-1

5114024A00
ref: 5-1
51140-24A01

TUBE,OUTER,LEFT

€ 403.00

5-2

5114024A01
ref: 5-2

TUBE,OUTER,LEFT

€ 403.00

6

5117305A00
ref: 6
51173-14F00

DUST SEAL,FRONT FORK

€ 18.50

7

5115649440
ref: 7

RING,OIL SEAL STOPPER

€ 5.50

8

5115305A00
ref: 8
51153-27C20

OIL SEAL,FRONT FORK

€ 22.00

9

5115805A00
ref: 9

WASHER,FORK OIL SEAL

€ 5.00

10

5116705A00
ref: 10
51167-26E10

METAL,SLIDE

€ 20.50

11

5114740300
ref: 11

BOLT,CYLINDER

€ 5.50

12

5114840300
ref: 12

GASKET,CYLINDER (NAS)

€ 2.50

13

5113249440
ref: 13

HOLDER,AXLE

€ 28.00

14

0832211088
ref: 14
08322-01087

WASHER

€ 2.00

15

0832121088
ref: 15
08321-01087

LOCK WASHER

€ 2.00

16

0914008005
ref: 16
09140-08017

NUT (8MM)

€ 1.50

17

5119805A00
ref: 17

RING,SNAP

€ 0.00

18

5119324A00
ref: 18

VALVE

€ 12.50

19

5119524A00
ref: 19

PIECE,OIL LOCK

€ 0.00

20

5114624A00
ref: 20

CYLINDER

€ 84.00

21

5117724A00
ref: 21

SPRING,REBOUND

€ 5.50

22

5119605A00
ref: 22

RING,PISTON

€ 7.50

23

5111024A00
ref: 23

TUBE,INNER

€ 290.00

24

5112105A00
ref: 24

METAL,SLIDE FR FORK

€ 20.50

24

5112105A00
ref: 24

METAL,SLIDE FR FORK

€ 20.50

25

5117124A00
ref: 25

SPRING

€ 51.00

26

5117224A00
ref: 26
51356-24B01

GUIDE,SPRING

€ 3.00

27

5117624A00
ref: 27

SPACER,SPRING

€ 6.50

28

5111740300
ref: 28

O RING

€ 2.50

29

5135124A00
ref: 29
51351-45C00

BOLT,FORK

€ 35.50

30-1

5311524A00
ref: 30-1
53115-24A01

BRACE,FORK

€ 71.00

30-2

5311524A01
ref: 30-2

BRACE,FORK

€ 71.00

31

0711008168
ref: 31
07130-08167

BOLT

€ 3.00

32

0925006009
ref: 32

CAP(OD:14.5)

€ 3.50

32

0925006009
ref: 32

CAP(OD:14.5)

€ 3.50
