TAIL MARKER LAMP/HARNESS SET (OPTIONAL)

GV1400GD CAVALCADE 1987 (H) USA (E03)

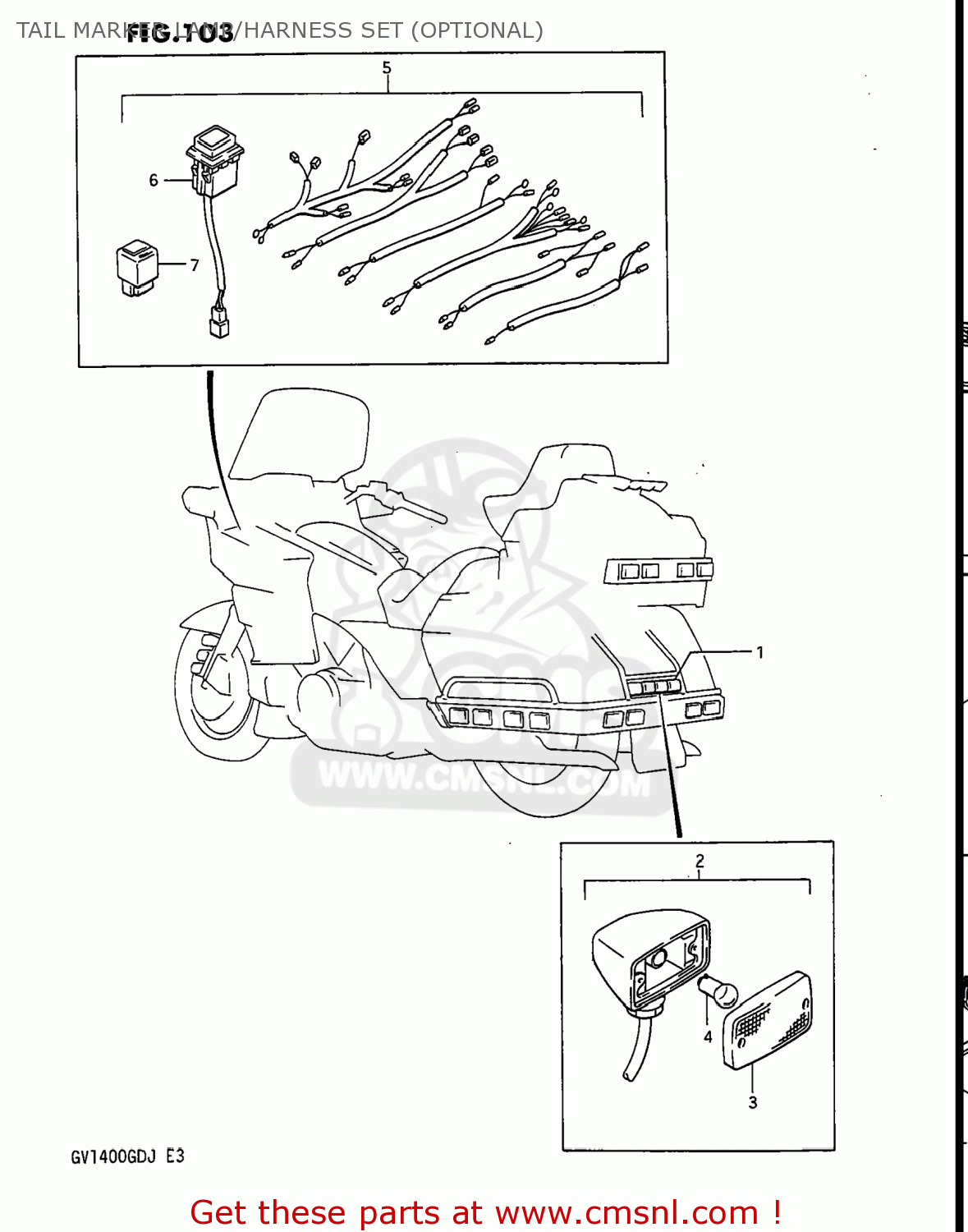

Tail marker lamp/harness set (optional) diagram GV1400GD CAVALCADE 1987 (H) USA (E03)

TAIL MARKER LAMP/HARNESS SET (OPTIONAL) GV1400GD CAVALCADE 1987 (H) USA (E03)
TAIL MARKER LAMP/HARNESS SET (OPTIONAL) GV1400GD CAVALCADE 1987 (H) USA (E03)
TAIL MARKER LAMP/HARNESS SET (OPTIONAL) GV1400GD CAVALCADE 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3650024830
ref: 1
REAR END,MARKER LAMP S
€ 143.50
2
3657024A00
ref: 2
TRAVEL TRUNK,MARKER LAMP
€ 85.00
3
3657224A00
ref: 3
LENS
3657224A00
€ 7.00
4
0947112115
ref: 4
BULB 12V 3W
0947112115
€ 2.50
5
3650024862
ref: 5
MARKER LAMP SWITCH & WASHER
3650024862
€ 66.50
6
3725024A01
ref: 6
37250-24A02
SWITCH ASSEMBLY,LIGHTING
€ 34.50
7
6256024A01
ref: 7
38740-24X50
RELAY ASSY, MARKER LAMP
€ 37.50
