OIL PUMP
GV1400GD CAVALCADE 1987 (H) USA (E03)

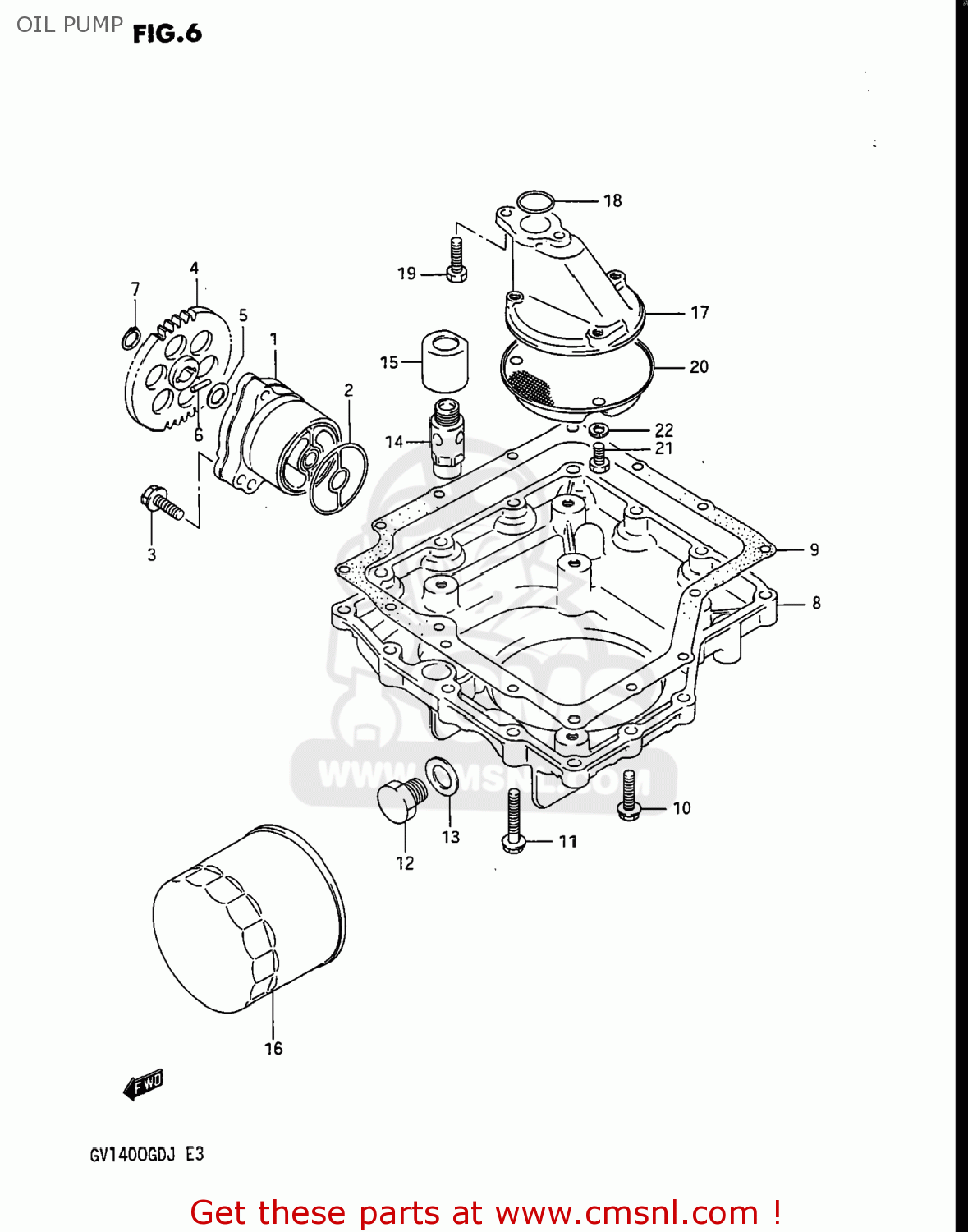

Oil pump diagram GV1400GD CAVALCADE 1987 (H) USA (E03)
OIL PUMP GV1400GD CAVALCADE 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640024A00
ref: 1
PUMP ASSEMBLY,ENGINE OIL
€ 151.50
2
1649131300
ref: 2
O RING,OIL PUMP
€ 12.50
3
0151706308
ref: 3
01550-06307
BOLT
€ 2.00
4
1633105A00
ref: 4
16331-05A01
GEAR,OIL PUMP DRIVEN
€ 38.00
5
0822110185
ref: 5
SHIM
€ 2.00
6
0926104009
ref: 6
PIN(4X15.8)
€ 1.50
7
0833131109
ref: 7
CIRCLIP
€ 2.00
8-1
1151124A00
ref: 8-1
11511-24A01
PAN,OIL
€ 91.50
8-2
1151124A10
ref: 8-2
11511-24A01
PAN,OIL
€ 91.50
9
1148905A00
ref: 9
11489-05A01
GASKET,OIL PAN (MCA)
€ 13.50
10
0151706258
ref: 10
01550-06257
BOLT
€ 2.50
11
0151706308
ref: 11
01550-06307
BOLT
€ 2.00
12
0924714001
ref: 12
09247-14002
PLUG
€ 5.00
13
0916814004
ref: 13
GASKET(14X19.2X2) (NAS)
€ 2.50
14
1644024A00
ref: 14
16440-24A01
VALVE ASSEMBLY,OIL RELIEF
€ 52.00
15
1644924A00
ref: 15
GUIDE, VALVE
€ 0.00
16-1
1651005A00
ref: 16-1
FILTER ASSY,ENGINE OIL
€ 8.50
16-2
1651006B00
ref: 16-2
16510-07J00
FILTER,OIL
€ 12.50
17
1652509301
ref: 17
PROTECTOR,OIL STRAINER
€ 16.00
18
0928018008
ref: 18
09280-18009
O RING(D:3.2,ID:17.8)
€ 8.00
19
0151706208
ref: 19
01550-06207
BOLT,REAR
€ 2.50
20
1652005A00
ref: 20
STRAINER,ENGINE OIL
€ 11.50
21
0110706127
ref: 21
01500-06127
BOLT
€ 2.00
22
0832121067
ref: 22
08321-01067
WASHER,LOCK
€ 2.50
