REAR SWINGING ARM

GV1400GD CAVALCADE 1987 (H) USA (E03)

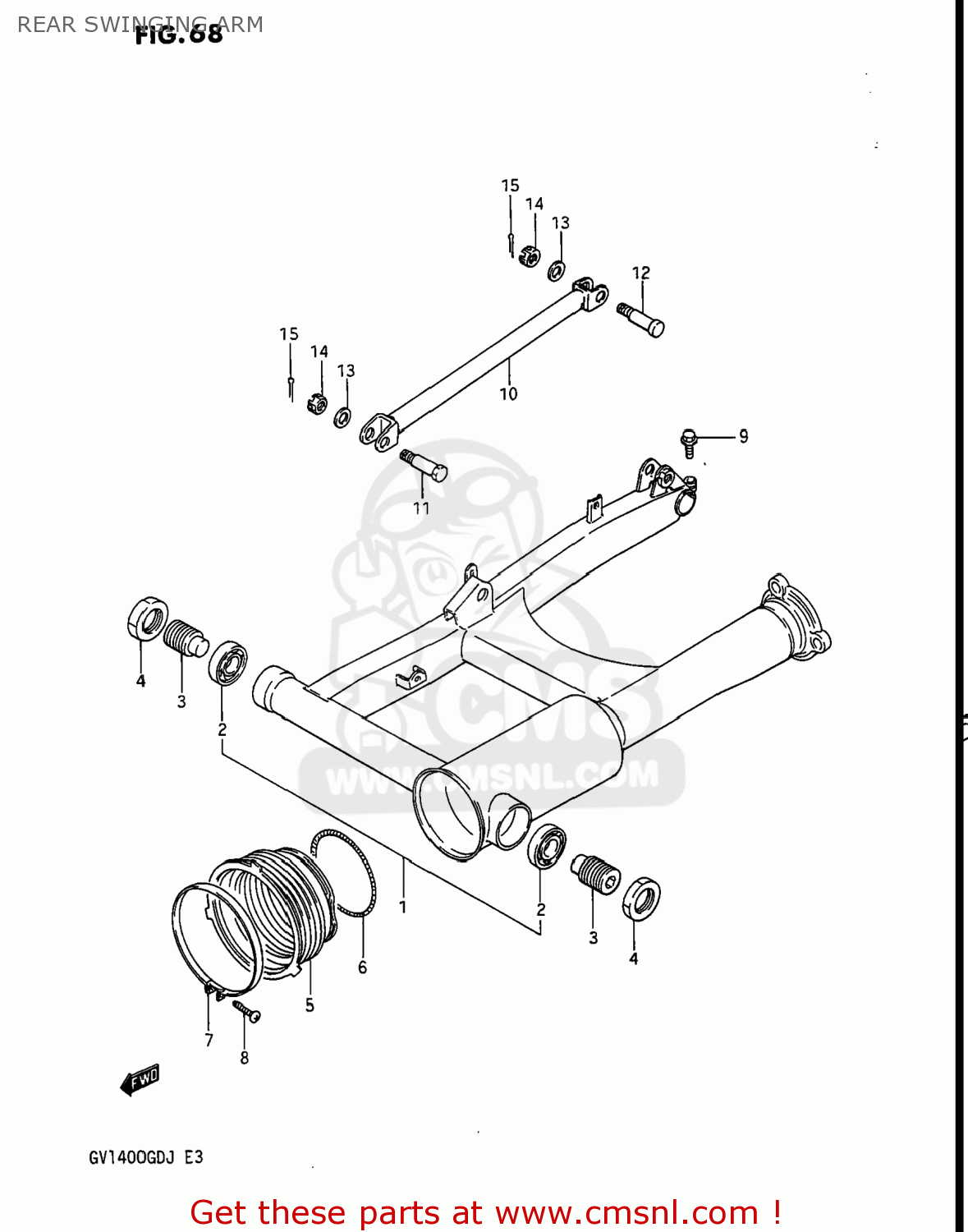

Rear swinging arm diagram GV1400GD CAVALCADE 1987 (H) USA (E03)

REAR SWINGING ARM GV1400GD CAVALCADE 1987 (H) USA (E03)

REAR SWINGING ARM GV1400GD CAVALCADE 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6100024A00019
ref: 1

SWING ARM ASSEMBLY,REAR

€ 510.50

2

0926517012
ref: 2

BEARING(17X40X13.25)

€ 35.00

3-1

6121305A00
ref: 3-1
61213-24A00

SHAFT,REAR SWING ARM

€ 17.00

3-2

6121324A00
ref: 3-2

BOLT,RR SWGARM PIVOT

€ 17.00

4

0914024007
ref: 4

NUT

€ 4.50

5

6137205A01
ref: 5

BOOT,PROPELLER SHAFT

€ 24.50

6

6137334300
ref: 6
61373-3430V

SPRING,PROPELLER SHAFT

€ 6.50

7

0940200304
ref: 7
09402-00303

CLAMP

€ 5.00

8

0321104255
ref: 8
03211-0425B

SCREW 4X25

€ 2.00

9

0151708254
ref: 9
01550-0825A

BOLT

€ 2.50

10

6431024A00019
ref: 10

TORQUE LINK,REAR

€ 17.50

11

0911110011
ref: 11
09111-10022-XC0

BOLT

€ 8.00

12

0910110017
ref: 12

BOLT(10X39)

€ 5.00

13

0832211104
ref: 13
08322-0110A

WASHER 10MM

€ 2.50

14

0831441108
ref: 14
08314-4010B

NUT

€ 2.50

15

0411120208
ref: 15
04111-2020A

PIN 20X20

€ 1.50
