REAR BRAKE
GV1400GD CAVALCADE 1987 (H) USA (E03)

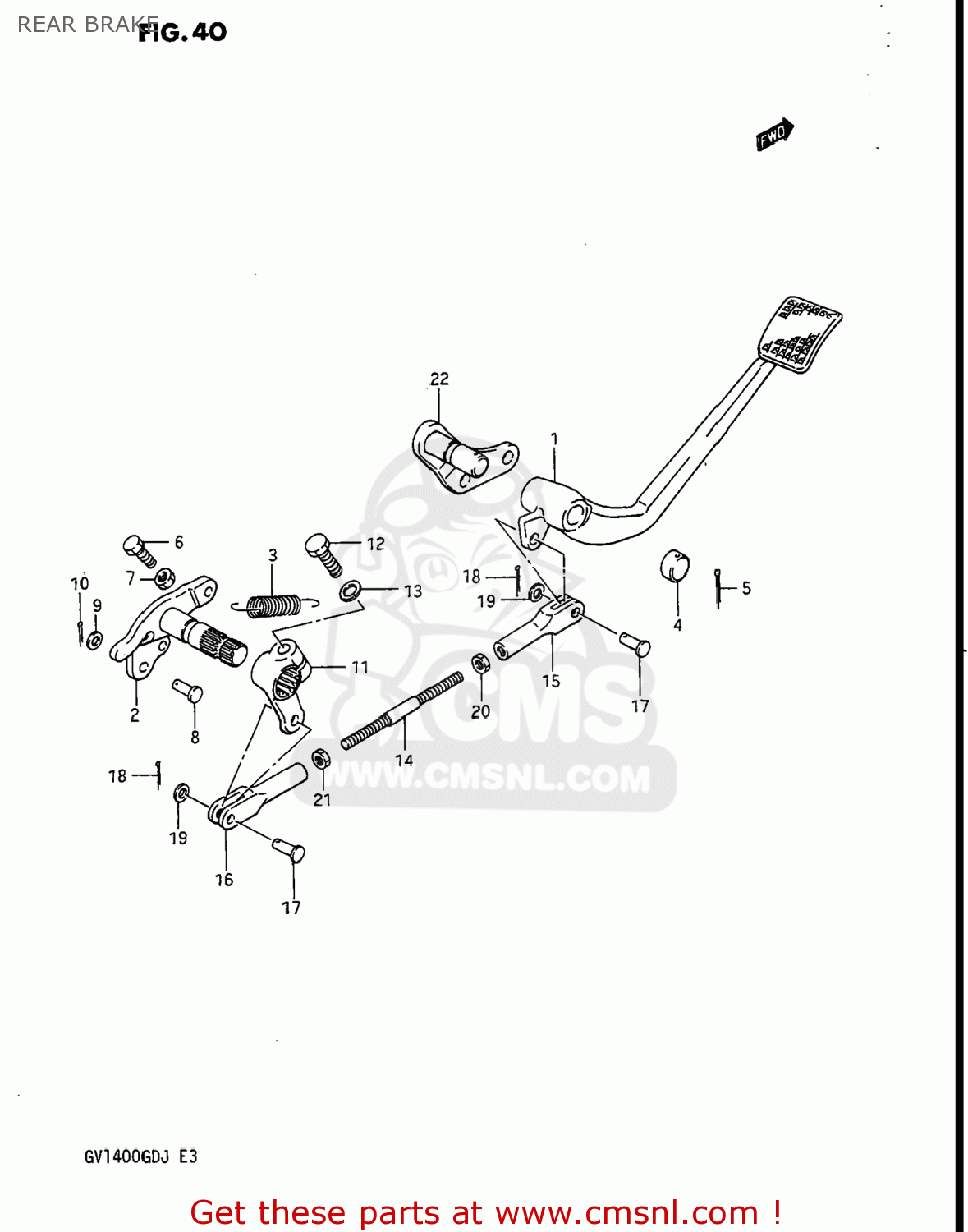

Rear brake diagram GV1400GD CAVALCADE 1987 (H) USA (E03)
REAR BRAKE GV1400GD CAVALCADE 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311024A00
ref: 1
PEDAL COMP,BRAKE
€ 63.00
2
4312024A01
ref: 2
ARM,REAR MASTER CYLINDER
€ 22.50
3
0944314046
ref: 3
SPRING
€ 5.00
4
4313507A01
ref: 4
43135-07A02
CAP,BRAKE PEDAL
€ 7.00
5
0411130308
ref: 5
04111-3030A
COTTER PIN
€ 1.50
6
0910006009
ref: 6
BOLT(6X23)
€ 1.50
7
0831011067
ref: 7
08310-00067
NUT 6MM
€ 2.50
8
0920006037
ref: 8
09200-06068
PIN
€ 5.00
9
0832221067
ref: 9
08322-01067
WASHER
€ 2.00
10
0411120158
ref: 10
04111-2015A
PIN
€ 1.50
11-1
4326124A01
ref: 11-1
43261-24A02
ARM,BRAKE PEDAL LINK
€ 27.00
11-2
4326124A02
ref: 11-2
ARM,BRAKE PEDAL LINK
€ 27.00
12
0110708258
ref: 12
01500-08257
BOLT
€ 2.50
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
4327124A00
ref: 14
LINK,BRAKE PEDAL
€ 7.50
15
4327224A00
ref: 15
JOINT,BRAKE PEDAL,FRONT
€ 22.50
16-1
4327324A00
ref: 16-1
43273-24A01
JOINT,BRAKE PEDAL,REAR
€ 24.00
16-2
4327324A01
ref: 16-2
JOINT,BRAKE PEDAL,REAR
€ 24.00
17
0920006037
ref: 17
09200-06068
PIN
€ 5.00
18
0411120208
ref: 18
04111-2020A
PIN 20X20
€ 1.50
19
0832221067
ref: 19
08322-01067
WASHER
€ 2.00
20
0915908058
ref: 20
NUT
€ 0.00
21
0831022088
ref: 21
08310-00087
NUT 8MM
€ 2.00
22-1
4314024A00
ref: 22-1
43140-24A01
BAR,BRAKE PEDAL BOSS
€ 19.00
22-2
4314024A01
ref: 22-2
BAR,BRAKE PEDAL BOSS
€ 19.00
