CORNERING LAMP (GV1400GCG/GCH)

GV1400GD CAVALCADE 1987 (H) USA (E03)

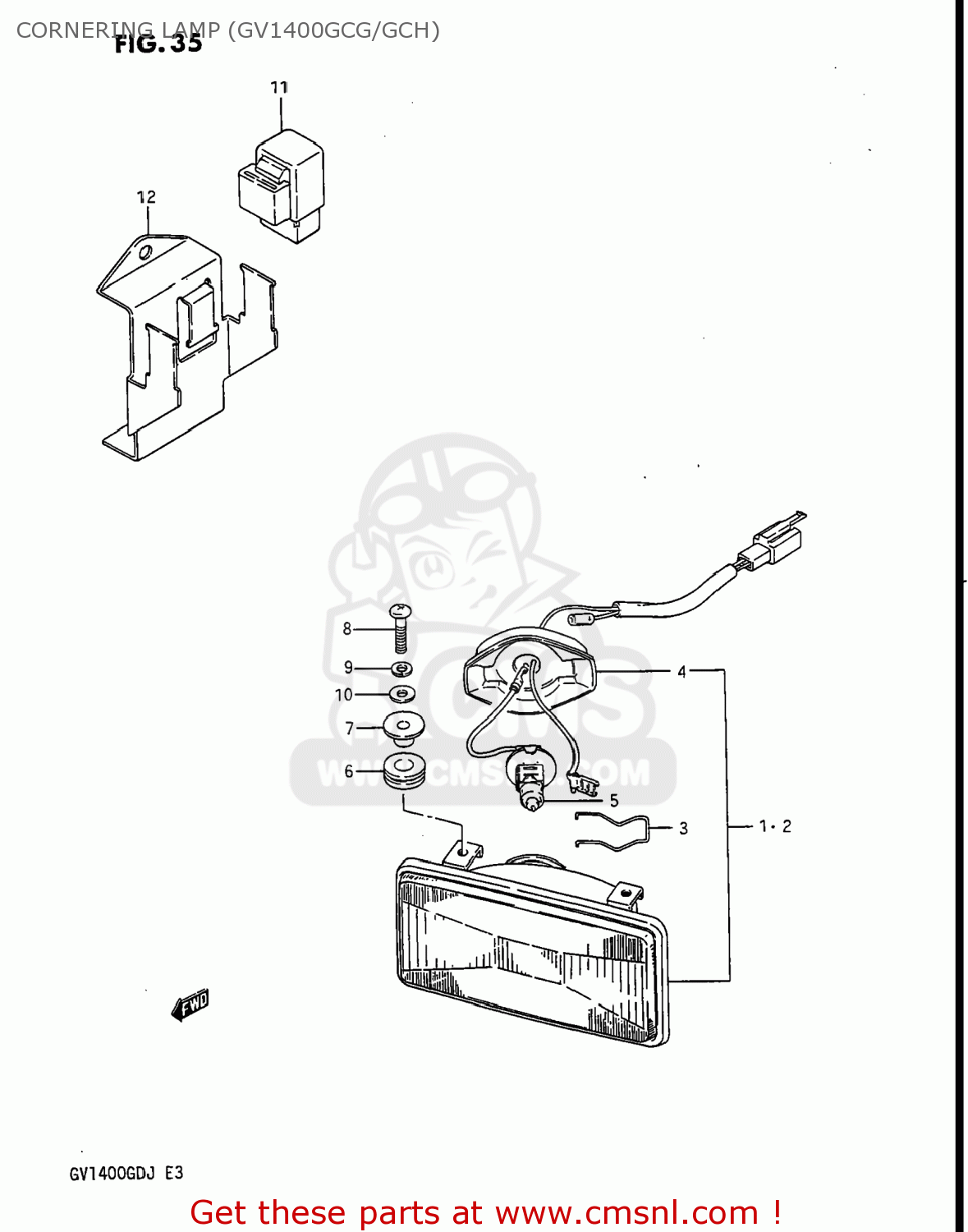

Cornering lamp (gv1400gcg/gch) diagram GV1400GD CAVALCADE 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

3551024A01
ref: 1

LAMP ASSEMBLY,CORNERING,RIGHT

€ 103.00

3553024A01
ref: 2

LAMP ASSEMBLY,CORNERING,LEFT

€ 138.50

3551224A00
ref: 3

SPRING

€ 2.50

3553824A01
ref: 4

SOCKET

€ 12.50

0947112123
ref: 5

BULB 12V 35W H3

€ 57.50

0932006017
ref: 6

CUSHION

€ 3.00

0918004011
ref: 7

SPACER(4.2X8X9)

€ 2.00

0211204206
ref: 8
02112-0420A

SCREW

€ 1.00

0832121046
ref: 9
08321-0104A

LOCK WASHER

€ 2.00

0832221046
ref: 10
08322-0104A

WASHER

€ 5.00

3873024A00
ref: 11
38740-24X50

RELAY,NEUTRAL STARTER

€ 37.50

3873124A00
ref: 12

BRACKET, RELAY

€ 0.00
